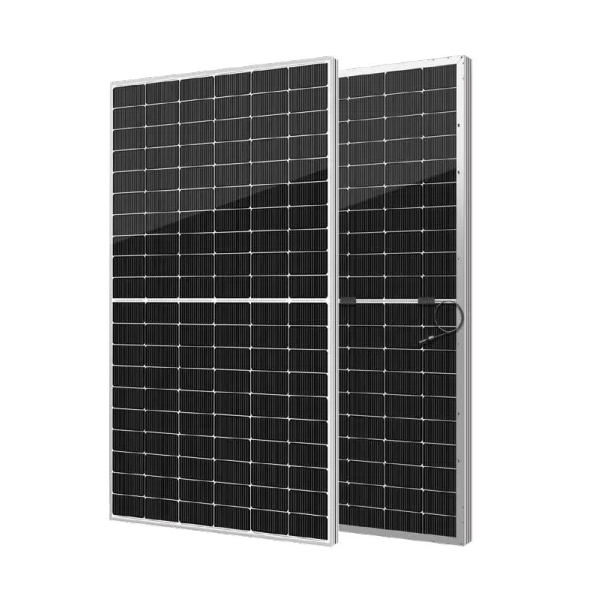

SEG Solar SEG-470-BTB-BG

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-16386

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-16386
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

SEG Solar SEG-470-BTB-BG $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

SEG Solar SEG-470-BTB-BG 470W N-Type TOPCon Bifacial Solar Panel

Model SEG-470-BTB-BG | N-Type TOPCon | 120 Half-Cell | Bifacial | 1500V System Voltage

470 W

Max Power Output

22.17%

Module Efficiency

120 Cells

N-Type TOPCon

Product Overview

The SEG Solar SEG-470-BTB-BG N-Type TOPCon bifacial solar panel delivers 470 watts of high-efficiency power for residential, commercial, and utility projects. This premium module pairs advanced N-type TOPCon cell technology with a bifacial design to capture sunlight from both sides of the panel for increased energy yield. With a module efficiency up to 22.17%, this panel helps maximize power density where roof or ground space is limited and long term output matters. Its monocrystalline half-cell layout improves reliability and reduces resistive losses for stable performance in real-world conditions. The double-glass construction, robust frame, and IP68-rated junction box ensure dependable operation in harsh climates with wind, snow, sand, and salt exposure. Backed by a 15-year product warranty and a 30-year linear power warranty, the SEG-470-BTB-BG offers a dependable long term energy solution with minimal degradation over time.

Key Benefits

High power density for limited space: The 470 W output and up to 22.17% efficiency allow more energy production from smaller roofs or arrays. This makes the panel ideal where project space is constrained but energy targets remain ambitious.

Advanced N-type TOPCon technology: N-type TOPCon cells deliver lower degradation, better low light response, and improved performance at high temperatures. This helps maintain strong production throughout hot summers and across the full service life.

Bifacial design for higher energy yield: The bifacial glass-glass structure converts light hitting the rear side into additional power. When installed over reflective surfaces, energy yield can increase significantly compared to monofacial modules.

Durable double-glass construction: Front and back 2.0 mm semi-tempered glass provide excellent mechanical strength and environmental protection. The module withstands high snow and wind loads, supporting long term reliability in demanding sites.

Long-term warranty confidence: A 15-year product warranty and 30-year linear performance warranty with only 0.42% annual degradation secure long-term investment value. System owners benefit from predictable output and reduced lifetime energy costs.

How It Works

The SEG Solar SEG-470-BTB-BG solar panel works by converting sunlight into direct current electricity through high efficiency N-type TOPCon monocrystalline cells. Each half-cut cell generates power when photons strike the silicon and release electrons, creating an electric current across the cell surface. These cells are interconnected into a 120 half-cell layout that reduces resistive losses and improves shade tolerance under partial obstruction. The bifacial glass-glass design captures light on both the front and rear sides, increasing total energy yield over reflective surfaces like white roofs, concrete, or light gravel. Produced current flows through the integrated MC4-compatible connectors to the DC cabling and onward to the inverter, where it is converted into AC electricity usable by homes, businesses, or the grid. Integrated bypass diodes inside the IP68 junction box help protect the string during shading or mismatch events, maintaining stable system performance. The module is engineered to operate between -40°C and 85°C, with optimized temperature coefficients that limit power loss on very hot days. Over time, a controlled degradation rate and robust materials ensure that energy production stays strong across the full thirty-year warranty period.

N-Type TOPCon cell conversion: Sunlight strikes the N-type TOPCon monocrystalline cells and frees electrons within the silicon structure. The cell design reduces recombination losses, so more of the captured light becomes usable electric current with higher efficiency and lower degradation.

Bifacial double-glass energy capture: The front glass receives direct sunlight while the rear glass collects reflected and diffused light from the ground or nearby surfaces. Both sides feed power into the same circuit, which increases total kilowatt-hour yield compared with similar monofacial designs.

System integration and protection: Current from the cells travels through three bypass diodes in the IP68 junction box, which protect against hot-spots in shaded sections. The 1500 V system voltage rating and 30 A series fuse rating support integration into modern high-voltage arrays with long DC strings.

Technical Specifications

Module Type	SEG Solar SEG-470-BTB-BG N-Type TOPCon Bifacial Module
Cell Technology	N-TOPCon monocrystalline half-cell
Cell Size	182 × 91 mm (120 pcs)
Cell Count & Layout	120 half-cells, bifacial glass-glass construction
Technology Type	Bifacial N-Type TOPCon, monocrystalline
Power Range for Series	465 Wp to 480 Wp (YUKON N Series)
Maximum Power (Pmax)	470 Wp front side at STC
Panel Efficiency	Up to 22.17% module efficiency, typical range 21.48% to 22.17%
Voltage at Maximum Power (Vmpp)	35.6 V (front side, STC)
Current at Maximum Power (Impp)	13.21 A (front side, STC)
Open Circuit Voltage (Voc)	42.8 V (front side, STC)
Short Circuit Current (Isc)	13.88 A (front side, STC)
Rear-Side Rated Power (Reference)	353 Wp rear side under specified bifacial test conditions
Rear Vmpp / Impp / Voc / Isc	Vmpp 33.4 V, Impp 10.57 A, Voc 40.66 V, Isc 11.1 A (rear reference)
Power Tolerance	0 to +3%
Maximum System Voltage	1500 V DC (IEC/UL)
Series Fuse Rating	30 A
Operating Temperature Range	-40°C to +85°C
Nominal Operating Cell Temperature (NOCT)	45 ± 2°C
Temperature Coefficient of Pmax	-0.30% / °C
Temperature Coefficient of Voc	-0.25% / °C
Temperature Coefficient of Isc	+0.046% / °C
External Dimensions (H × W × D)	1909 × 1134 × 30 mm
Panel Weight	27.3 kg
Front / Back Glass	2.0 mm AR coating semi-tempered glass / low-iron rear glass
Glass Type and Thickness	Anti-reflection coating glass, 2 mm thickness each side
Frame Material	Anodized aluminium alloy frame
Junction Box Rating / Diodes	IP68 junction box with 3 bypass diodes
Connector Type	MC4 compatible connectors
Cable Type / Length	12 AWG PV wire (UL), 1200 mm length
Mechanical Load Capacity (Front)	5400 Pa / 113 psf (front side load)
Mechanical Load Capacity (Rear)	2400 Pa / 50 psf (rear side load)

Certifications & Compliance

Certifications: IEC 61215:2016, IEC 61730:2016, UL 1703, UL 61730, ETL, CEC listing, IEC 62804 (PID resistance), IEC 61701 (salt mist), IEC 62716 (ammonia resistance), IEC 60068 (dust and sand), hailstone resistance, Fire Type 2 (UL 61730).
Inverter Compatibility: Designed for use with modern string and central inverters rated up to 1500 V DC system voltage. Compatible with leading residential, commercial, and utility-scale inverter platforms when string sizing and current limits are observed.
Environmental: Built with double-glass construction for enhanced durability in coastal, agricultural, and desert environments. Manufacturing and quality systems follow ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards for quality, environmental management, and occupational safety.
Warranty: 15-year product warranty on materials and workmanship plus 30-year linear power output warranty. Total degradation is limited to 12.6% after 30 years, with an expected remaining power of 87.4% of the original nameplate rating and typical annual degradation of around 0.42% after the first year.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and project-specific pricing
