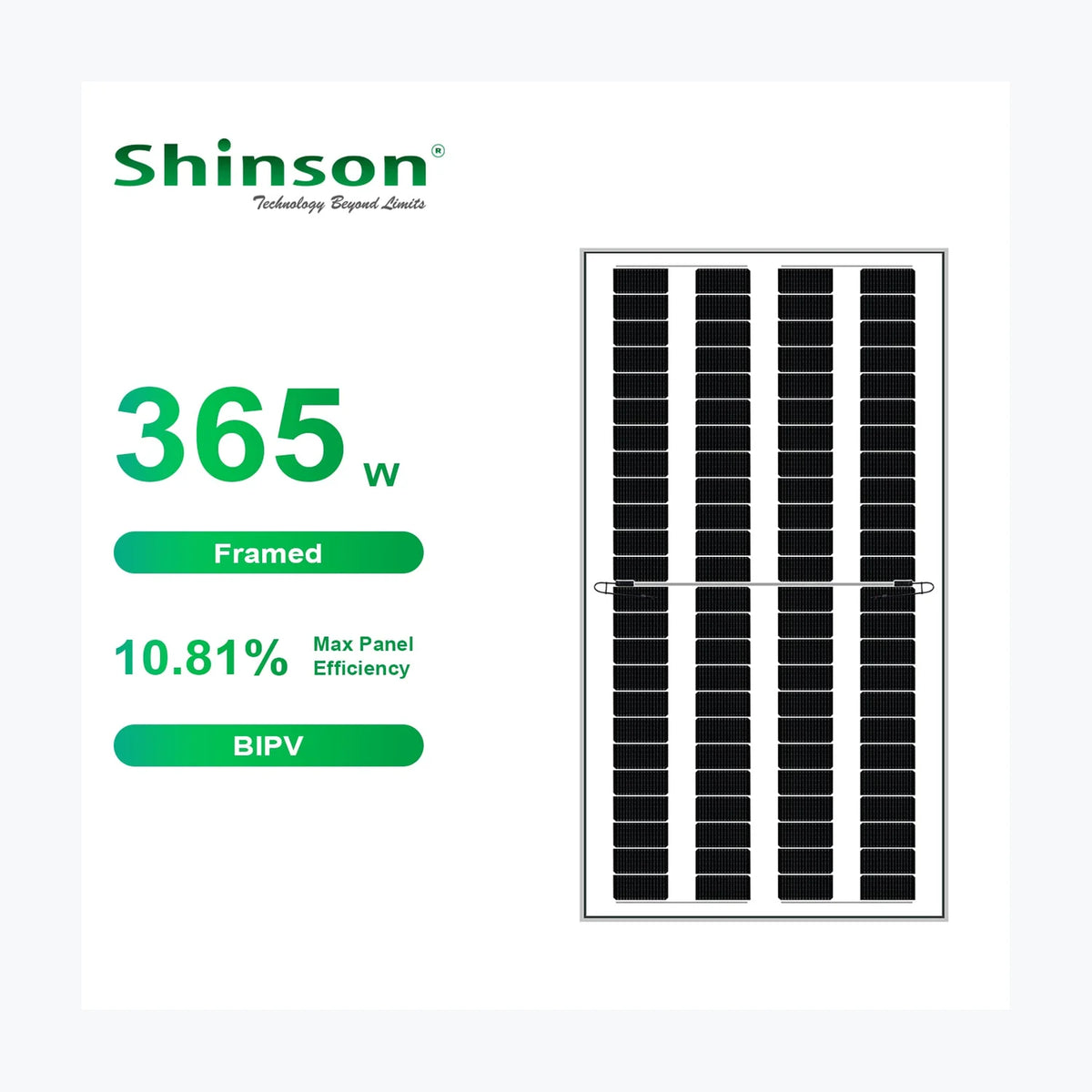

    Shinson Technology S365M10E

    Shinson Technology S365M10E

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17221
    • Container price: $124.20 USD
    • Container qty: 720
    • Odoo id: 24,095
    • Pallet price: $5.87 USD
    • Pallet qty: 30
    • Unit price: $0.23 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. S365M10E Product Warranty 25 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 365 Wp Voltage at Maximum Power (Vmpp) 33.77 V Current at Maximum Power (Impp) 10.81 A Open Circuit Voltage (Voc) 39.15 V Short Circuit Current (Isc) 11.67 A Panel Efficiency 18.7 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 20.5 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

      Technology: TOPCon
      Power Range: 350 ~ 365 Wp
      Panel Efficiency: 17.9 ~ 18.7 %
      Weight: 20.5 kg
      Seller Name: Shinson Technology Co., Ltd.
      Country: China
