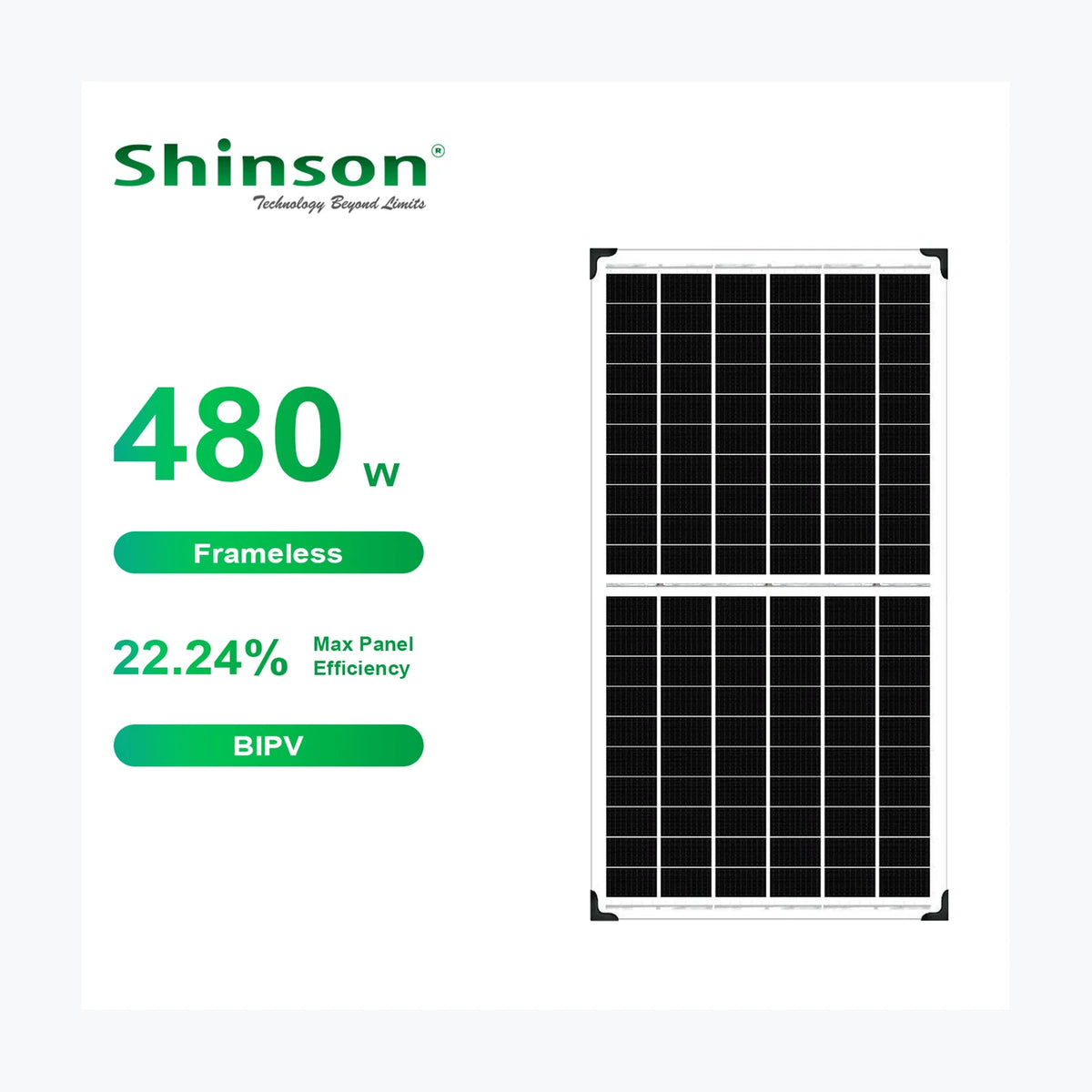

    Shinson Technology S470M60NT3B

    Shinson Technology S470M60NT3B

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17254
    • Container price: $64.80 USD
    • Container qty: 720
    • Pallet price: $3.06 USD
    • Pallet qty: 30
    • Unit price: $0.12 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. S470M60NT3B Product Warranty 25 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 470 Wp Voltage at Maximum Power (Vmpp) 35.05 V Current at Maximum Power (Impp) 13.41 A Open Circuit Voltage (Voc) 42.38 V Short Circuit Current (Isc) 14.15 A Panel Efficiency 21.78 % Maximum Power (Pmax) 353 Wp Voltage at Maximum Power (Vmpp) 32.94 V Current at Maximum Power (Impp) 10.73 A Open Circuit Voltage (Voc) 40.25 V Short Circuit Current (Isc) 11.42 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1903x1134x30 mm Weight 24.2 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's

      Technology: TOPCon, N-type
      Power Range: 465 ~ 480 Wp
      Panel Efficiency: 21.55 ~ 22.24 %
      Weight: 24.2 kg
      Seller Name: Shinson Technology Co., Ltd.
      Country: China
