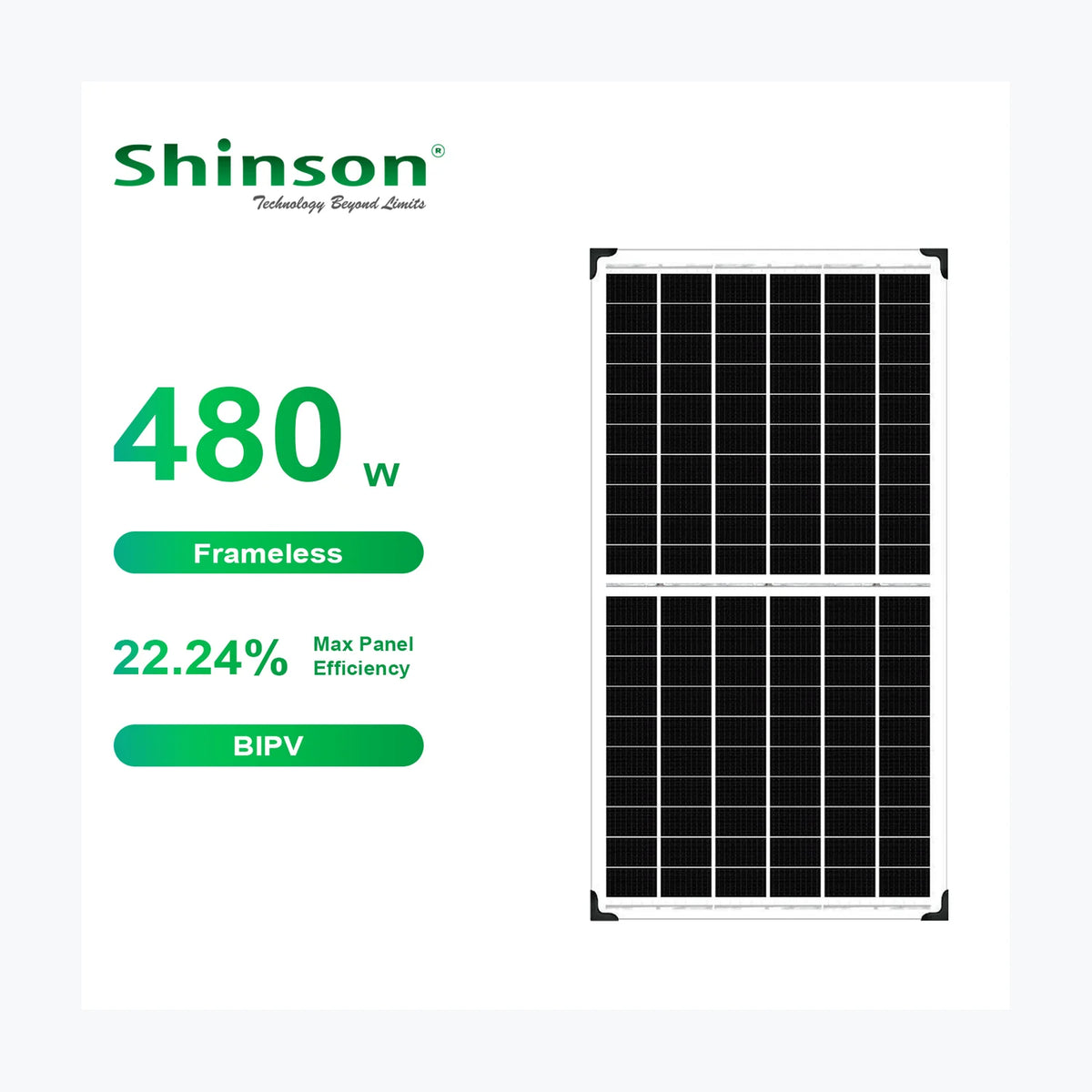

    Shinson Technology S475N60BPV

    Shinson Technology S475N60BPV

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17257
    • Container price: $81.00 USD
    • Container qty: 720
    • Pallet price: $3.82 USD
    • Pallet qty: 30
    • Unit price: $0.15 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. S475N60BPV Product Warranty 30 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 475 Wp Voltage at Maximum Power (Vmpp) 35.21 V Current at Maximum Power (Impp) 13.49 A Open Circuit Voltage (Voc) 42.54 V Short Circuit Current (Isc) 14.23 A Panel Efficiency 22.01 % Maximum Power (Pmax) 357 Wp Voltage at Maximum Power (Vmpp) 33.1 V Current at Maximum Power (Impp) 10.79 A Open Circuit Voltage (Voc) 40.41 V Short Circuit Current (Isc) 11.49 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1930x1136x6.5 mm Weight 23.5 kg Cell Size 182×91 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Encapsulant Type POE Frame Type Frameless Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Downl

      Technology: Bifacial, TOPCon, BIPV, N-type
      Power Range: 465 ~ 480 Wp
      Panel Efficiency: 21.55 ~ 22.24 %
      Weight: 23.5 kg
      Seller Name: Shinson Technology Co., Ltd.
      Country: China
