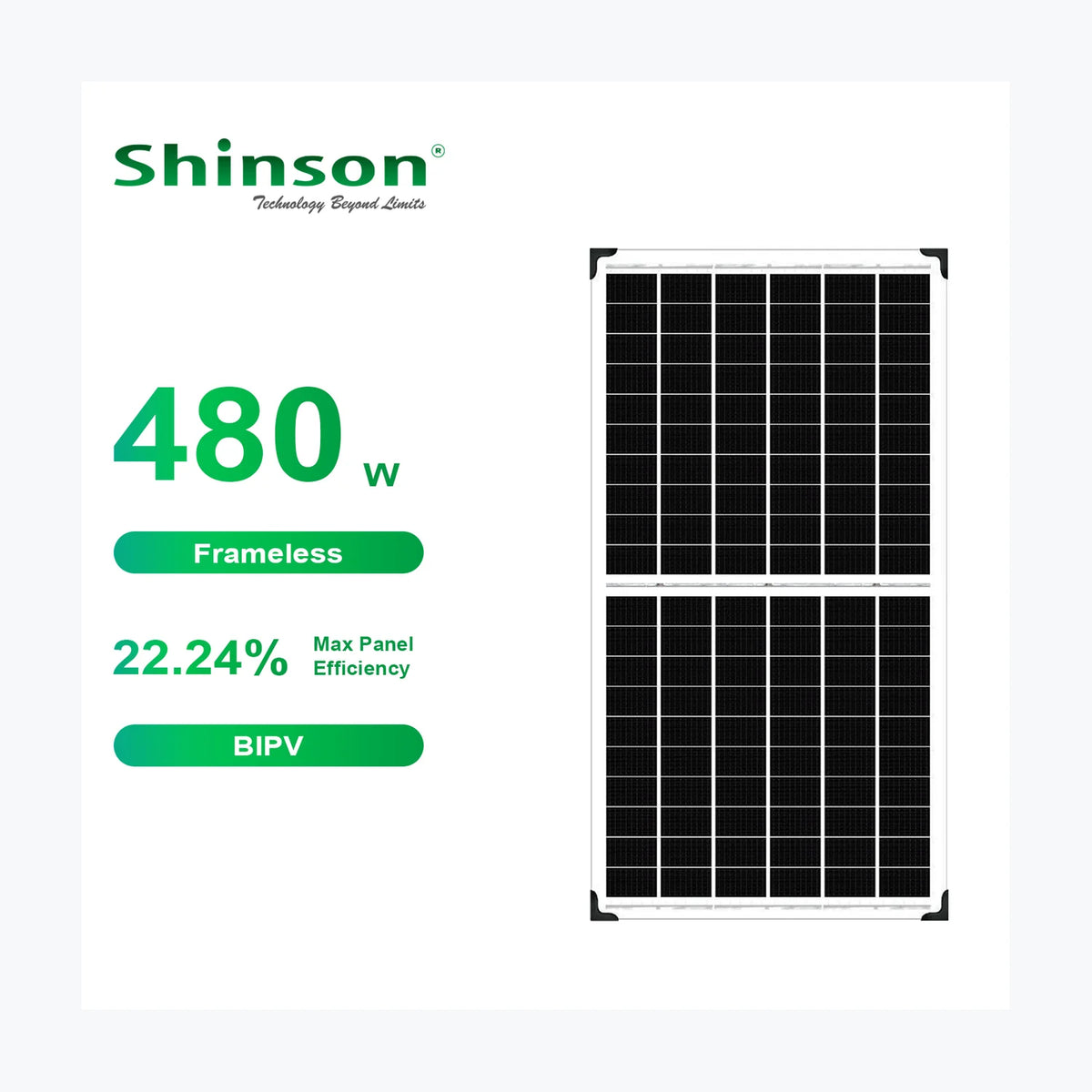

Shinson Technology S480N60BPV
Shinson Technology S480N60BPV
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-17259
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. S480N60BPV Product Warranty 30 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 35.38 V Current at Maximum Power (Impp) 13.57 A Open Circuit Voltage (Voc) 42.71 V Short Circuit Current (Isc) 14.31 A Panel Efficiency 22.24 % Maximum Power (Pmax) 361 Wp Voltage at Maximum Power (Vmpp) 33.27 V Current at Maximum Power (Impp) 10.85 A Open Circuit Voltage (Voc) 40.57 V Short Circuit Current (Isc) 11.55 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1930x1136x6.5 mm Weight 23.5 kg Cell Size 182×91 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Encapsulant Type POE Frame Type Frameless Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Down
Technology: Bifacial, TOPCon, BIPV, N-type
Power Range: 465 ~ 480 Wp
Panel Efficiency: 21.55 ~ 22.24 %
Weight: 23.5 kg
Seller Name: Shinson Technology Co., Ltd.
Country: China -
