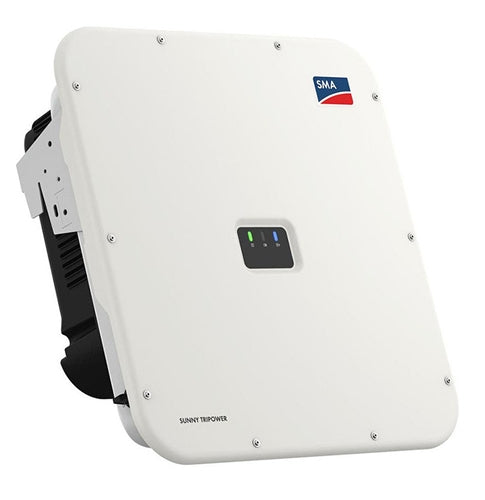

Sunny Tripower X 20-US 20kW 480/277V string inverter
Sunny Tripower X 20-US 20kW 480/277V string inverter
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock
SKU  PES-SPS-SIV-0741

Sunny Tripower X 20-US - 20KV 480/277 VAC 1000Vdc String Inverter 03-20-1000-2-50

Sunny Tripower X 20-US - 20KV 480/277 VAC 1000Vdc String Inverter 03-20-1000-2-50

$5,315.53 USD
$ $5,315.53 USD
Sale Sold out

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.



SMA Sunny Tripower X 20-US String Inverter

Model STP-X-20-US-50 | 20 kW | 480/277 VAC 3-Phase | 1000 Vdc

20 kW
AC Output
97.5%
CEC Efficiency
3 MPPT
Tracking

Product Overview

The Sunny Tripower X 20-US is a high-efficiency commercial 3-phase string inverter delivering 20 kW at 480/277 VAC with a 1000 Vdc PV input. It features three MPPTs (2 strings each), integrated SunSpec PLC rapid shutdown, DC AFCI, and an integrated DC disconnect. An Integrated System Manager provides monitoring and control for up to five inverters (max 150 kVA) via Sunny Portal powered by ennexOS.

Key Benefits

High Power & Efficiency: 20 kW @ 480/277 V with max AC current of 24 A and industry-leading CEC efficiency of 97.5%.

Advanced MPPT Design: 1000 Vdc system with 3 independent MPPTs, 2 strings per MPPT, 24 A usable / 37.5 A Isc per MPPT for maximum energy harvest.

Built-In Safety Features: SunSpec PLC rapid shutdown, DC AFCI, reverse-polarity protection, ground & grid monitoring; optional DC Type 2 or Type 1+2 surge protection.

Integrated System Manager: Centralized commissioning, remote parameterization, Dynamic Power Control with zero-export and Volt-VAr capabilities.

Rugged Outdoor Enclosure: Type 4X outdoor-rated enclosure with OptiCool forced-convection cooling; 59 dB(A) at 1 m for quiet operation.

Comprehensive Communications: Dual Ethernet, WLAN, Modbus (SMA & SunSpec), multi-function relay, and 6 digital inputs for flexible system integration.

How It Works

The Sunny Tripower X converts DC power from solar panels into grid-compatible 3-phase AC power. Its advanced architecture maximizes energy production while ensuring safety and reliable grid compliance.

Triple MPPT Architecture: Three independent maximum power point trackers optimize energy harvest from different string orientations or shading conditions.

Transformerless Design: High-efficiency transformerless topology reduces weight and losses while maintaining grid code compliance.

OptiCool Thermal Management: Variable-speed fans provide intelligent cooling, extending component life and maintaining efficiency across operating conditions.

Technical Specifications

Manufacturer SMA Solar Technology
Model Number STP-X-20-US-50 (MPN: 03-20-1000-2-50)
AC Output Power 20,000 W nominal / 20,000 VA max
AC Voltage / Phase 480/277 VAC, 3-Phase, 60 Hz
Max AC Current 24 A
Max DC System Voltage 1000 V
MPP Voltage Range 350–800 V
MPPT Configuration 3 MPPT, 2 strings per MPPT
Max Input Current per MPPT 24 A usable / 37.5 A Isc
CEC Efficiency 97.5%
Protection Features Integrated DC disconnect, DC AFCI, SunSpec PLC rapid shutdown
Enclosure Rating Type 4X (UL 50E), Transformerless
Cooling OptiCool Variable-Speed Fans
Dimensions (W × H × D) 28.7 × 30.0 × 10.5 in
Weight 77 lb
Communications Ethernet (2×), WLAN, SMA & SunSpec Modbus, 6 digital inputs

Certifications & Warranty

Certifications: UL 1741 SB, IEEE 1547:2018, UL 62109-1, UL 3741, FCC Part 15 Class A
Warranty: 10-Year Standard Warranty (optional extensions available)
