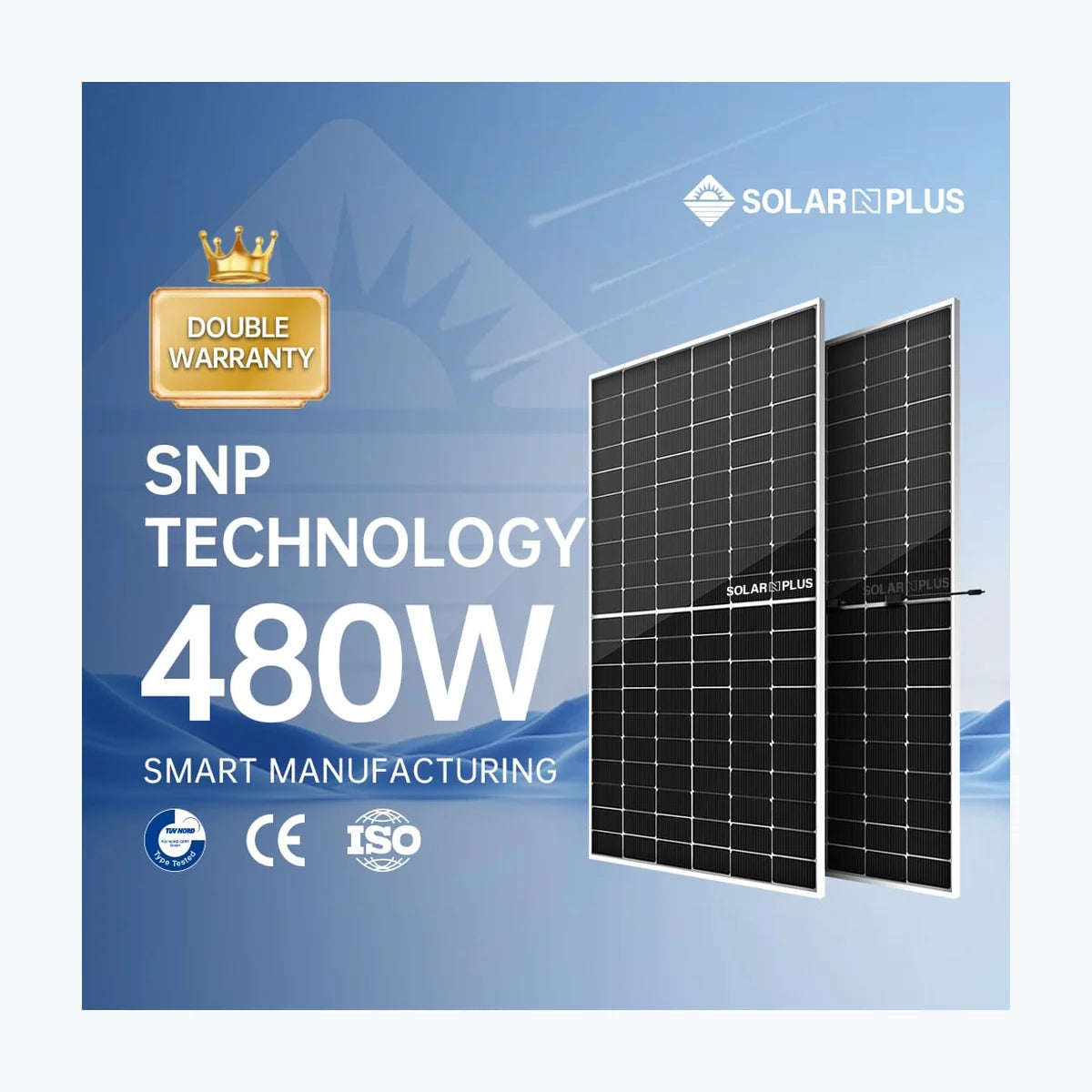

    Solar N Plus 480

    Solar N Plus 480

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17684
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,395
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 480 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 35.8 V Current at Maximum Power (Impp) 13.4 A Open Circuit Voltage (Voc) 43.3 V Short Circuit Current (Isc) 13.89 A Panel Efficiency 22.3 % Maximum Power (Pmax) 364 Wp Voltage at Maximum Power (Vmpp) 33.6 V Current at Maximum Power (Impp) 10.77 A Open Circuit Voltage (Voc) 41.17 V Short Circuit Current (Isc) 11.13 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1903x1134x30 mm Weight 27.1 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossectio

      Technology: Bifacial, N-type
      Power Range: 460 ~ 480 Wp
      Panel Efficiency: 21.3 ~ 22.3 %
      Weight: 27.1 kg
      Seller Name: Solar N Plus New Energy Tech. Co., Ltd
      Country: China
