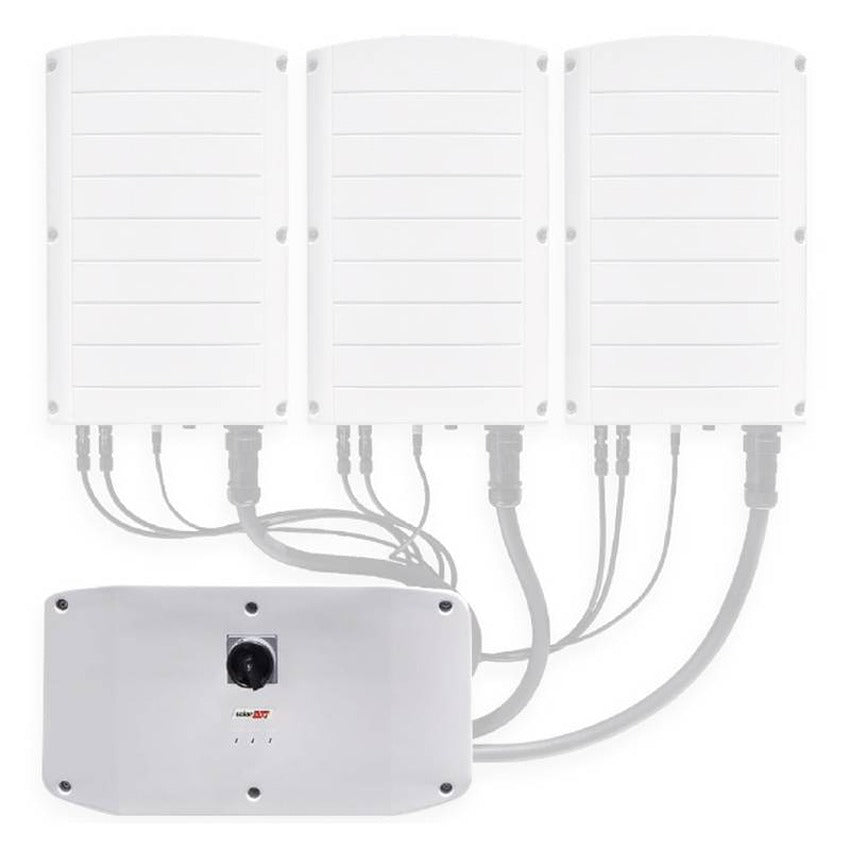

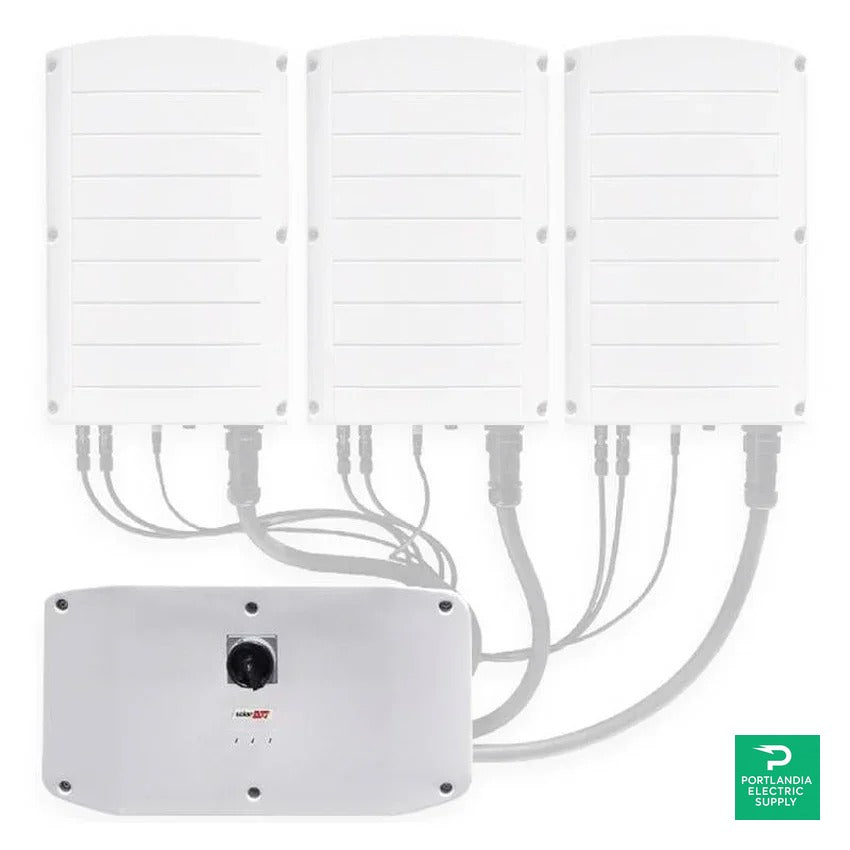

SolarEdge SE-100K Three Phase Synergy Manager 480V (3 secondary units required) - SE-100K-US08IBNZ4

SolarEdge SE-100K Three Phase Synergy Manager 480V (3 secondary units required) - SE-100K-US08IBNZ4

Return policy

Specification

  • SKU:PES-SPS-SIV-0122
  • Brands: SolarEdge
  • Documents:
  • Phase:
    • Three Phase
View full details
  • Product Description

    SolarEdge SE-100K Three Phase Synergy Manager for 480V Grid

    The SolarEdge SE-100K Three Phase Synergy Manager revolutionizes energy management for the 480V grid in North America with the aid of advanced Synergy technology. Integrating the target keyword SolarEdge SE-100K-US08IBNZ4, this inverter maximizes power efficiency and ensures cost-effective energy production. Designed for reliability, the SE-100K model embodies intelligent engineering and innovation that supports continued energy progress.

    Product Features

    Enhanced Power Conversion Efficiency

    The SolarEdge SE-100K optimizes power conversion to enhance energy yield, ensuring each unit effectively balances its load even during challenging grid conditions.

    Modular and Lightweight Design

    Making installation straightforward, the modular design of the SE-100K, each operating with two or three secondary units, allows for quick setup by a two-person team.

    Synergy Technology for Increased Uptime

    Incorporating Synergy technology, the SE-100K model ensures independent operation of each unit, delivering improved serviceability and uptime.

    Comprehensive Surge Protection

    Equipped with monitored and field-replaceable surge protection devices, this system withstands electrical surges, providing longevity and reliability.

    Built-in Arc Fault Protection

    The inverter is equipped with configurable arc fault protection, meeting stringent safety standards and enhancing overall system security.

    How It Works

    The SolarEdge SE-100K inverter employs advanced Synergy technology to optimize solar energy harnessing for the 480V grid, using a combination of smart modules and safety features to manage power effectively.

    Pre-Commissioning Process

    This feature rapidly validates system components and wiring before grid connection, ensuring a seamless setup and reliable performance.

    Module-Level Monitoring

    With built-in capabilities for Ethernet or cellular communication, users can monitor energy production at the module level for enhanced system management.

    Thermal and Wiring Safety

    Integrated thermal sensors monitor wiring and component temperatures, safeguarding against potential hazards and ensuring efficient operation.

    Specifications

    Rated AC Active Output Power 100,000 W
    Maximum AC Apparent Output Power 100,000 VA
    AC Output Line Connections 3W + PE, 4W + PE
    Supported Grids WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT
    Maximum Continuous Output Current (per Phase) 120 Aac
    Reverse-Polarity Protection Yes
    CEC Weighted Efficiency 98.5%
    Dimensions (H x W x D) Synergy Unit: 22 x 12.9 x 10.75 in / Synergy Manager: 14.17 x 22.4 x 11.6 in
    Operating Temperature Range -40 to +60C
    Protection Rating NEMA 3R
