SolarEdge - 43.2kW 208V 3-Phase Inverter (Primary) ( Each ) - SE43.2K-USRP0BNU4

SolarEdge - 43.2kW 208V 3-Phase Inverter (Primary) ( Each ) - SE43.2K-USRP0BNU4

Return policy

Specification

  • SKU:PES-SPS-SIV-0542
  • Brands: SolarEdge
  • Compliance special features:
    • Rapid Shutdown Ready
  • Documents:
  • Special sections quote cta:
    • AFCI
View full details
  • Product Description

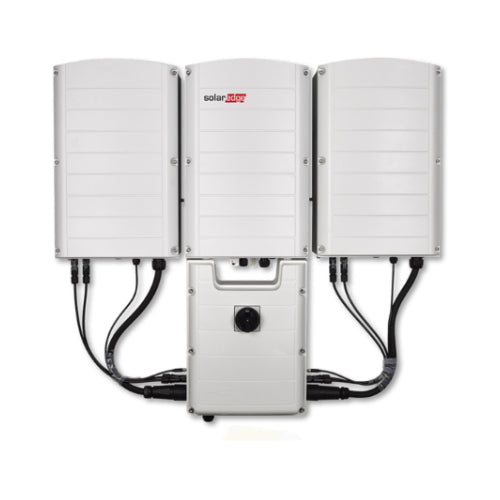

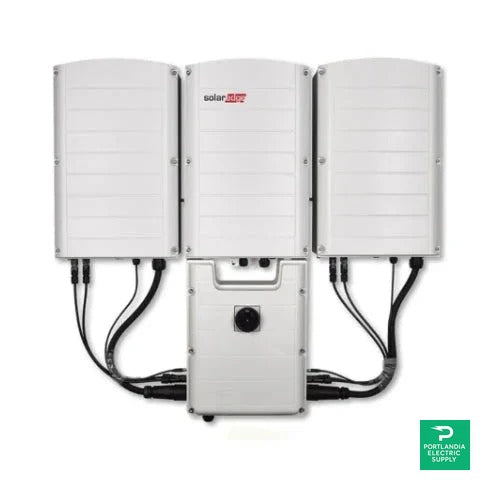

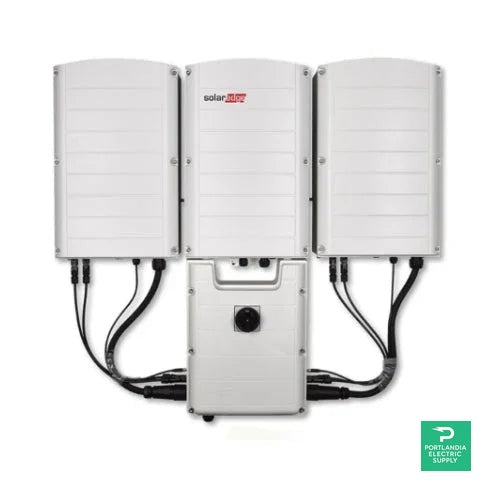

    SolarEdge SE43.2K-USRP0BNU4

    The SolarEdge SE43.2KUS inverter is designed to efficiently integrate into North American 208V grids with synergy technology, maximizing performance with power optimizers. This unit promises easy installation, increased reliability with independent operation, and comprehensive safety features. Experience advanced energy conversion with built-in module-level monitoring and rapid shutdown capabilities, aligned with modern standards.

    Product Features

    Effortless Two-Person Installation

    With the SolarEdge SE43.2KUS, installation is a breeze thanks to its lightweight units that mount separately with ready-to-connect cables, ensuring a quick setup.

    Enhanced Monitoring Capability

    Incorporates Ethernet and optional GSM connectivity for in-depth module-level monitoring, optimally managing your solar array's performance and uptime.

    Superb Efficiency and Longevity

    This inverter excels with a fixed voltage framework offering up to 97% efficiency, supporting longer strings for improved energy capture and conversion.

    Advanced Safety Standards

    Equipped with built-in DC safety switches and surge protection, meeting NEC 2014 and 2017 rapid shutdown requirements, enhancing safety and compliance.

    Weather-Resistant Design

    Designed for versatile installation, it can be mounted on walls or rails, including under modules with an angle, making no additional ground space necessary.

    How It Works

    The SolarEdge SE43.2KUS inverter operates through its synergy technology, efficiently managing the power conversion process to maximize energy output and system uptime. With its integrated safety and monitoring features, this inverter ensures optimal performance for diverse solar applications.

    Synergy Technology

    This technology allows for seamless synchronization across units, enhancing reliability and simplifying maintenance, ensuring the inverter maintains optimal performance even if one unit requires servicing.

    Built-in Safety and Compliance

    Featuring integrated arc fault detection, ground-fault isolation, and DC safety switches, this inverter ensures that your solar solution not only performs well but adheres to stringent safety protocols.

    Advanced Connectivity Solutions

    The inverter supports various communication interfaces including RS485 and Ethernet, with optional cellular GSM for real-time data accessibility and robust remote monitoring.

    Specifications

    Rated AC Power Output 43200 VA
    Maximum AC Power Output 43200 VA
    AC Output Line Connections 4-wire WYE (L1-L2-L3-N) plus PE or 3 wire Delta
    AC Output Voltage Range (L-N) 105-120-132.5 Vac
    AC Output Voltage Range (L-L) 183-208-229 Vac
    Continuous Output Current (per Phase) 120 A
    Ground-Fault Isolation Detection 350kA Sensitivity per Unit
    Maximum Input Voltage DC to Gnd 300 Vdc
    Maximum Input Voltage DC+ to DC- 600 Vdc
    CEC Weighted Efficiency 97%
