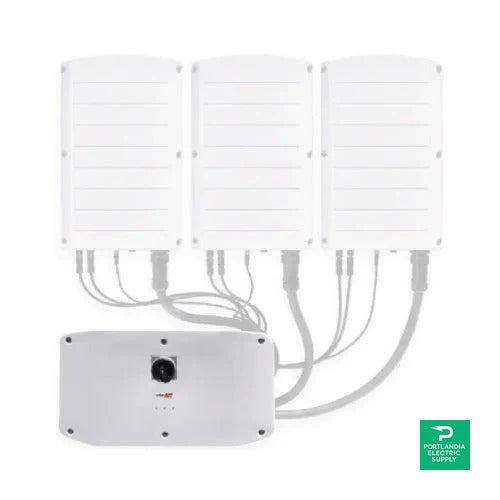

SolarEdge 66.6KW synergy manager 480v - SE66.6K-US08IBNZ4

SolarEdge 66.6KW synergy manager 480v - SE66.6K-US08IBNZ4

Call Now Email Us
Return policy

Specification

  • SKU:PES-SPS-SIV-0535
  • Brands: SolarEdge
  • Compliance special features:
    • Rapid Shutdown Ready
    • NEMA 3R
  • Documents:

    Datasheet
  • Height: 27.3
  • Length: 55.9
  • Phase:
    • Three Phase
View full details

  • Product Description

    SolarEdge 66.6KW Synergy Manager for 480V Grids

    The SolarEdge SE66.6K-US08IBNZ4, specifically designed for the 277/480V grid, is a cutting-edge three-phase inverter integrated with Synergy Technology. Engineered for optimal energy efficiency, this inverter offers exceptional performance with a rated AC output of 66.6KW. It is the perfect choice for harnessing solar energy with powerful synergy, ensuring reduced installation labor and improved energy production, making it ideal for North American power infrastructures.

    Product Features

    Enhanced Efficiency and Output

    Experience significant energy savings with the SolarEdge SE66.6K-US08IBNZ4's fixed voltage inverter, achieving an impressive 98.5% efficiency. Designed to maximize power output and allow longer string lengths.

    Easy Installation and Integration

    Facilitate streamlined installation with our easy two-person setup. Each unit mounts independently, significantly reducing labor and integration time.

    Advanced Safety Protocols

    Prioritize safety with the integrated DC safety switch and rapid shutdown features. Compliant with NEC standards, it ensures secure operation under varying conditions.

    Robust Monitoring and Communication

    Utilize built-in module-level monitoring via Ethernet or optional Cellular GSM for real-time performance tracking and system management.

    Durability and Adaptability

    Crafted to withstand challenging conditions, the unit supports NEMA 3R protection, offering versatility in installation€”whether wall-mounted or horizontally mounted beneath panels.

    How It Works

    The SolarEdge SE66.6K-US08IBNZ4 operates by converting DC power from solar panels into AC power suitable for grid use. Employing synergy technology, it ensures smooth energy flow while allowing each unit to function independently, thereby optimizing serviceability and uptime.

    Independent Unit Operation

    Each unit works autonomously, ensuring continuous energy production even if one unit requires maintenance or service.

    Synergy Technology Integration

    Synergy technology enhances system performance by balancing power flows and reducing energy wastage, thus ensuring maximized grid interactions.

    Smart Energy Management

    Leverage smart energy management systems that anticipate and respond to grid requirements, boosting both energy production and reliability.

    Specifications

    Rated AC Power Output 66,600 VA
    Maximum AC Power Output 66,600 VA
    AC Output Voltage Range (L-N) 244 - 277 - 305 Vac
    AC Output Voltage Range (L-L) 422.5 - 480 - 529 Vac
    AC Frequency Range 59.3 - 60 - 60.5 Hz
    Maximum Continuous Output Current 80 A
    Maximum DC Power Unit 100,000 W
    Ground-Fault Isolation Detection 350k„¦ Sensitivity per Unit
    Nighttime Power Consumption <12 W
    Cooling System Fan (user replaceable)
