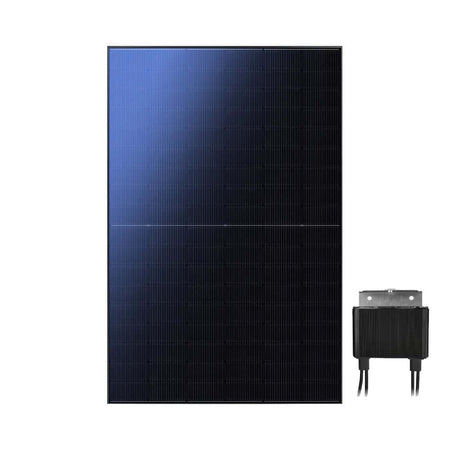

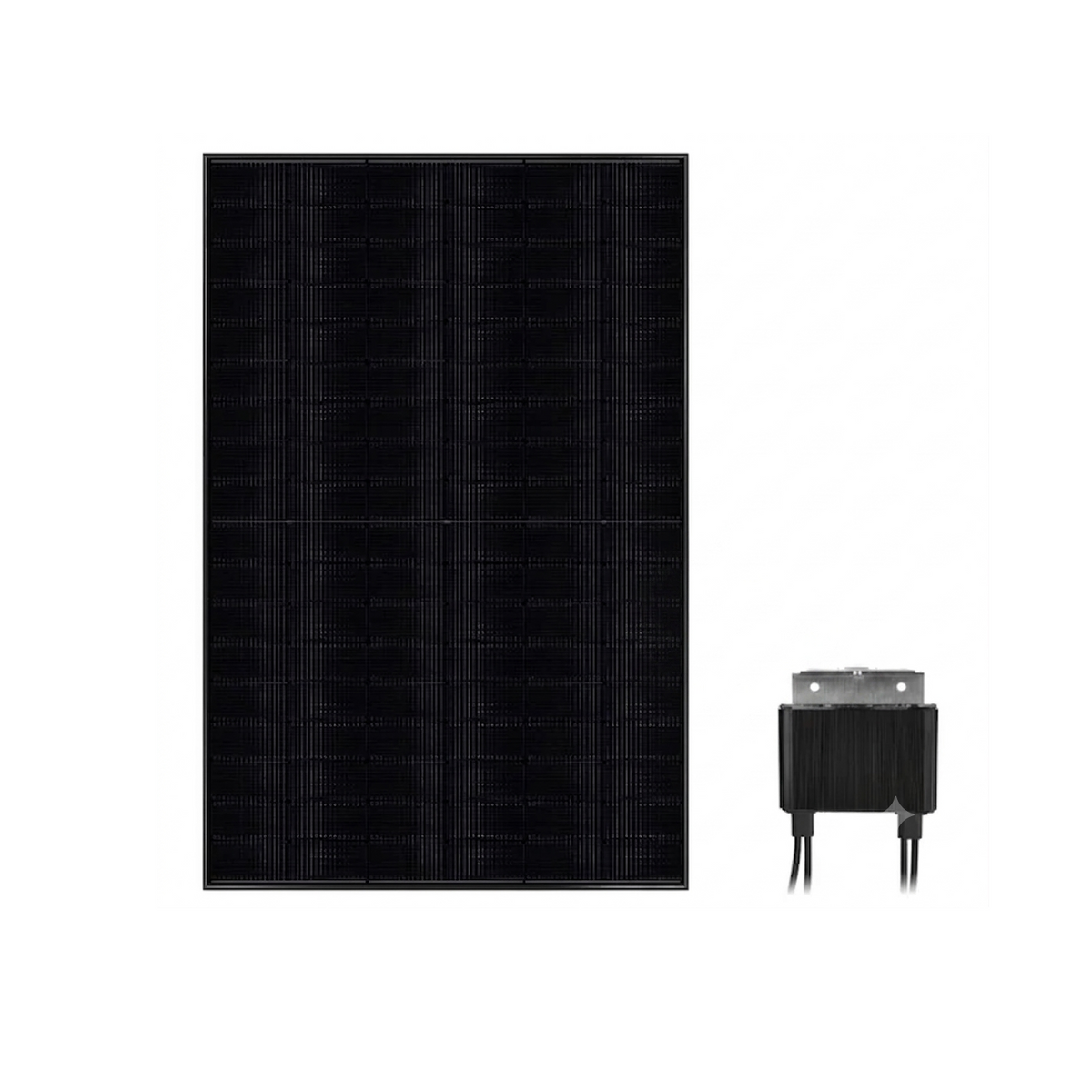

SolarEdge SPV430-R54PDTL 430W N-Type TOPCon Bifacial Monocrystalline Solar Panel

Model SPV430-R54PDTL | N-Type TOPCon | 108 Half-Cell Monocrystalline | Bifacial | 1000V System Voltage

430 W

Max Power Output

22.02%

Module Efficiency

108

N-Type TOPCon

Product Overview

The SolarEdge SPV430-R54PDTL 430W N-Type TOPCon bifacial monocrystalline solar panel is a smart module designed for high efficiency and long term reliability. This advanced panel combines N-type TOPCon cell technology with integrated S-Series Power Optimizer hardware for maximum energy harvest on every roof. With module efficiency up to 22.02%, it delivers strong power density in a compact 1722 x 1134 mm format suitable for residential and commercial projects. The module uses bifacial, dual tempered glass construction to capture light from both sides, improving real world energy yield. SolarEdge Smart Modules are engineered to work seamlessly within the SolarEdge Home ecosystem, creating a fully optimized DC coupled system. This panel is ideal when premium output, safety, and monitoring are priorities in a modern solar installation.

Key Benefits

High power density in a compact footprint: The module delivers up to 430 W at STC while keeping a manageable footprint for tight roofs. This helps more power fit on limited surfaces and supports higher system yields without increasing array size.

Advanced N-type TOPCon bifacial cell technology: N-type TOPCon cells improve efficiency and reduce degradation compared with conventional P-type cells. Bifacial design allows rear side generation when light reflects from surfaces, boosting annual energy production.

Integrated S-Series Power Optimizer: The pre assembled SolarEdge Power Optimizer performs module level MPPT for each unit. This increases energy harvest under shading, soiling, and mismatch and simplifies cable management during installation.

Enhanced safety with SafeDC and Sense Connect: Built in SafeDC technology is designed to reduce module voltage to safe levels whenever the inverter or AC power is off. Sense Connect monitoring helps detect potential connector issues early, lowering fire risk and improving system safety.

Long term reliability and strong warranties: Dual 1.6 mm tempered glass and a robust anodized aluminium frame support high snow and wind loads. A 25 year product warranty and 30 year linear performance warranty give long term peace of mind and predictable energy output.

How It Works

The SolarEdge SPV430-R54PDTL solar panel converts sunlight into electricity using high efficiency N-type TOPCon monocrystalline cells. Each module integrates an S-Series Power Optimizer that performs maximum power point tracking at the module level. DC power generated on the front and rear glass surfaces is continuously adjusted to extract the highest possible output under changing conditions. This optimized DC power is then sent to a compatible SolarEdge inverter, which converts the energy into AC electricity for home or business use. SafeDC functionality is designed to reduce string voltage automatically when AC power or the inverter is shut down, supporting safer installation and maintenance. The module is designed to operate in harsh climates, with stable performance across a wide temperature range from -40°C to +85°C.

Module level DC optimization: The integrated S-Series Power Optimizer performs real time MPPT on each smart module. This means output is maximized for every panel, even when some modules experience shade or orientation differences. Energy loss from mismatch is reduced, and array design gains extra layout flexibility.

Bifacial dual glass energy capture: The panel uses bifacial cells laminated between two 1.6 mm tempered glass layers. The front side absorbs direct sunlight while the rear side uses reflected and diffuse light from nearby surfaces. This configuration enables additional rear side power, increasing total kilowatt hour generation over the system lifetime.

Smart safety and monitoring: SafeDC technology is designed to drop the string voltage to a safer level whenever AC power or the SolarEdge inverter is turned off. Sense Connect helps detect abnormal connector temperature rises and can trigger alerts before damage occurs. System and module performance can be viewed through the SolarEdge monitoring platform, giving full visibility from the roof to the grid.

Technical Specifications

Module Type	Monocrystalline N-Type TOPCon bifacial smart module
Model Number	SPV430-R54PDTL
Nominal Power at STC	430 Wp
Module Efficiency at STC	22.02 %
Maximum Power Voltage (Vmp) STC	32.34 V
Maximum Power Current (Imp) STC	13.30 A
Open Circuit Voltage (Voc) STC	39.03 V
Short Circuit Current (Isc) STC	13.95 A
Nominal Module Power at NMOT	326 Wp
Maximum Power Voltage (Vmp) NMOT	30.45 V
Maximum Power Current (Imp) NMOT	10.72 A
Open Circuit Voltage (Voc) NMOT	37.39 V
Short Circuit Current (Isc) NMOT	11.24 A
Operating Cell Temperature (NMOT)	42 ± 2 °C
Operating Temperature Range	-40 to +85 °C
Temperature Coefficient of Power (Pm)	-0.30 % / °C
Temperature Coefficient of Voltage (Voc)	-0.25 % / °C
Temperature Coefficient of Current (Isc)	0.045 % / °C
Maximum System Voltage	1000 V DC
Maximum Series Fuse Rating	30 A
Cell Count and Layout	108 cells (6 x 18) half cut monocrystalline
Cell Size	182 x 91 mm
Panel Dimensions (L x W x H)	1722 x 1134 x 30 mm
Weight with Optimizer	21.74 kg
Front Glass	1.6 mm tempered glass
Rear Glass	1.6 mm tempered glass (dual glass construction)
Frame Type and Color	Black anodized aluminium frame
Junction Box Protection Rating	IP68 rated junction box
Connector Type	MC4 compatible connectors
Front Side Maximum Load (Snow)	5400 Pa
Rear Side Maximum Load (Wind)	2400 Pa
Power Warranty Degradation	Year 1 at 99 %, 30 years at 89.4 %, approx. 0.35 % annual rate
Packaging Quantity per Pallet	36 modules

Certifications & Compliance

Certifications: Certified to relevant international IEC standards for safety and performance, including mechanical load and environmental durability tests suitable for global markets.
Inverter Compatibility: Optimized for use with SolarEdge inverters and the SolarEdge Home ecosystem, ensuring full functionality of the integrated S-Series Power Optimizer and SafeDC features.
Environmental: Designed for long life in harsh climates with dual tempered glass, IP68 junction box, and resistance to high snow and wind loads, supporting dependable outdoor operation over decades.
Warranty: 25 year product warranty and 30 year linear performance warranty, with power output maintained at 99 % after year one and 89.4 % after 30 years, based on a 0.35 % annual degradation rate.

Documentation

Product Datasheet (PDF)
