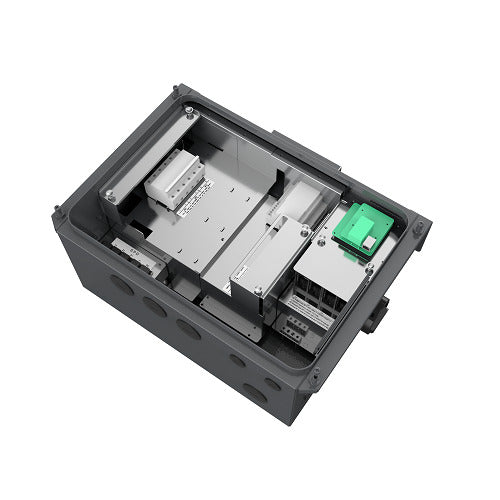

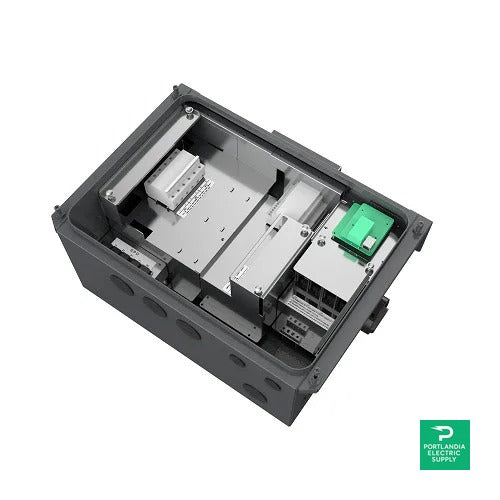

Solectria Wiring Box - PVI-50-60TL-WB-APS
Solectria Wiring Box - PVI-50-60TL-WB-APS
Specification
- SKU:PES-PA-ELC-0123
- Brands: Solectria
- Documents:
-
Product Description
Advanced Solectria Inverter Solution - PVI-50-60TL-WB-APS
The Solectria PVI-50-60TL-WB-APS inverter offers an efficient, transformerless solution, perfect for commercial photovoltaic systems. Designed with integrated rapid shutdown capabilities, this inverter ensures safety and complies with the latest NEC requirements. Its robust construction and innovative features are tailored to optimize power conversion in various installation scenarios.
Product Features
Transformerless Design
This Solectria inverter utilizes a transformerless architecture, improving performance efficiency and reducing overall footprint, making it ideal for space-limited installations.
Integrated Rapid Shutdown
The built-in SunSpec-compliant transmitters facilitate swift modular-level rapid shutdown, enhancing safety and simplifying compliance with NEC regulations.
High Efficiency Rating
Achieving up to 98.8% peak efficiency, the inverter ensures maximum energy yield, optimizing return on investment for commercial installations.
Advanced Communication
Equipped with RS-485 Modbus RTU, this device supports remote monitoring and diagnostics, streamlining maintenance and operation management.
Durable Construction
The NEMA Type 4X rating provides superior protection against environmental elements, ensuring robust outdoor performance in varied climates.
How It Works
The PVI-50-60TL-WB-APS inverter operates by converting DC electricity from solar panels into usable AC power. Its multi-point power tracking and integrated features ensure optimal energy conversion efficiency and safety during operation.
Multi-Point Power Tracking
The three MPPTs with 5 inputs each allow for flexible array configurations, enhancing energy capture across different conditions.
SunSpec Compliance
This compliance ensures rapid system shutdown capabilities, an important safety feature that meets industry standards.
Temperature Management
Designed to operate efficiently in a wide temperature range, maintaining performance even in extreme conditions.
Specifications
Maximum PV Power 90 kW (33 kW per MPPT) Maximum Input Voltage 1000 VDC DC Voltage Ranges 200-950 VDC / 480-850 VDC Number of MPPT Trackers 3 Trackers / 5 Fused-inputs each Power Factor Unity, >0.99 Total Harmonic Distortion < 3% @ Rated Load Maximum Operating Ambient Temperature -22°F to +140°F Certifications UL 1741SB, IEEE 1547-2018 Weight Inverter: 123.5 lbs; Wiring Box: 33 lbs Enclosure Rating NEMA Type 4X -
