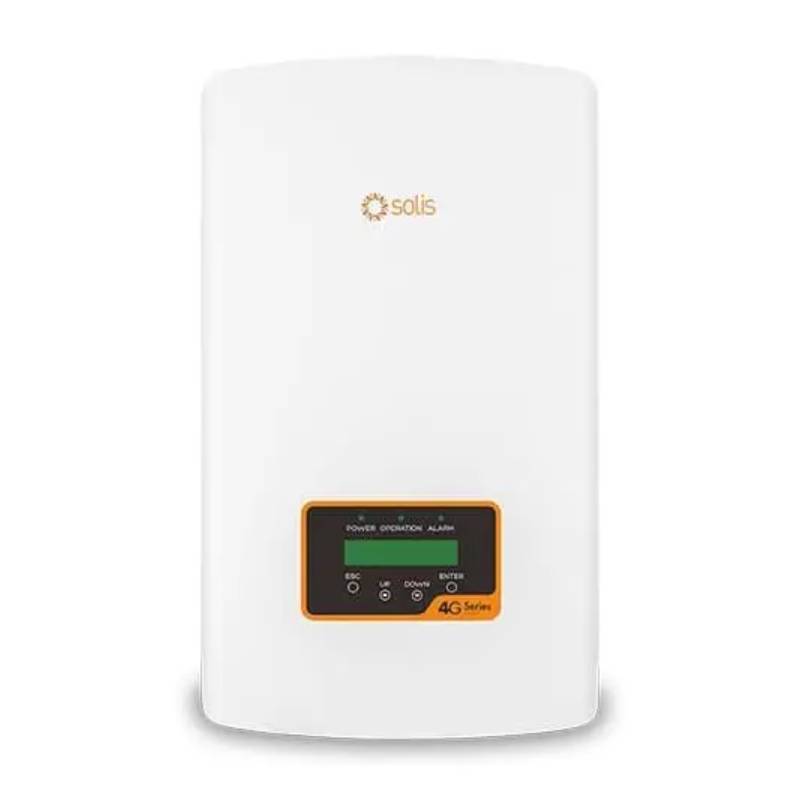

Solis 4.6kW 1-Phase 2-MPPT String Inverter - 1P4.6K-4G-US-SPRT
Solis 4.6kW 1-Phase 2-MPPT String Inverter - 1P4.6K-4G-US-SPRT
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SIV-0114
- Brands: Solis
- Documents:
- Height: 16
- Length: 72.4
-
Phase:
- Single Phase
-
Shop by inverter type:
- String Inverters
Product Description
-
Solis 4.6kW 1-Phase 2-MPPT String Inverter
The Solis 1P4.6K-4G-US-SPRT inverter is a top-tier choice for efficient solar energy conversion. Designed with advanced technology, this single-phase inverter features a dual MPPT system, providing optimized energy production from two strings of solar panels. Its user-friendly design and modular functionality make it ideal for residential installations, enhancing overall grid adaptability and resilience.
Key Features
Outstanding Efficiency
Achieve maximum solar energy conversion with this inverter's impressive 98.1% efficiency, ensuring you get the most out of your solar panels.
Advanced Switching Technology
Experience the benefits of super high frequency switching, which enhances the performance and reliability of the power conversion process.
Flexible Voltage Range
The inverter covers a wide voltage spectrum with a low start-up voltage, making it compatible with a diverse array of solar panel configurations.
Export Power Management
Features integrated Export Power Manager, allowing for better control over energy distribution and export back to the grid.
Compact and Lightweight Design
With its sleek form factor, the inverter is easy to install and blends seamlessly into different residential settings.
How It Works
The Solis 1P4.6K-4G-US-SPRT strings solar power from multiple panel arrays, optimizes it, and then converts the DC electricity into AC for household use. This inverter ensures efficient energy flow while maintaining grid stability and responsiveness.
Dual MPPT Design
This component maximizes power generation by tracking two independent solar panel strings, ensuring optimal energy capture even under varying conditions.
Grid Connectivity and Adaptability
Facilitates seamless integration with the grid, enhancing overall electricity management and providing reliable energy supply.
Natural Convection Cooling
Uses advanced cooling principles for efficient heat dissipation without the need for additional fans, ensuring quiet and maintenance-free operation.
Specifications
Model Name Solis-1P4.6K-4G Input DC - Max Voltage 600V Rated Voltage 330V Output AC - Rated Power 4.6kW Max Apparent Output Power 5kVA Efficiency - Max 98.1% Protection DC reverse-polarity, short circuit, over current, surge, grid monitoring, anti-islanding, temperature Dimensions (W*H*D) 310*543*160 mm Weight 11.5kg Topology Transformerless Operating Temperature Range -25 ~ +60C Ingress Protection IP65 -
