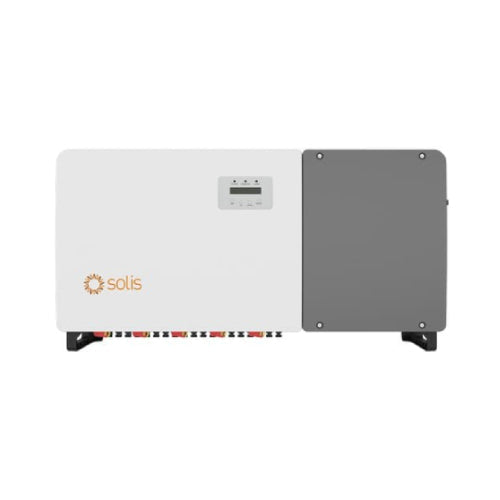

Solis 75kW 3-Phase 8-MPPT w/AFCI w/FAN Inverter - 75K-5G-US-F

Solis 75kW 3-Phase 8-MPPT w/AFCI w/FAN Inverter - 75K-5G-US-F

$5,406.00 USD
$5,406.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0521
  • Brands: Solis
  • Documents:

    Datasheet
  • Height: 34.5
  • Length: 106.4
  • Special sections quote cta:
    • AFCI
  • Width: 56.6
View full details

Product Description

  • Solis 75kW 3-Phase Inverter with AFCI & Fan - 75K-5G-US-F

    The Solis 75K-5G-US-F inverter is designed to deliver efficient and secure energy solutions. Featuring advanced MPPT technology and substantial energy storage capacity, this inverter ensures optimal performance with maximum efficiency reaching up to 99%. Its robust structure and intelligent cooling system promise reliability, making it an ideal choice for various installations.

    Product Features

    Advanced MPPT Technology

    This inverter includes 8 MPPTs (Maximum Power Point Trackers), enhancing the energy extraction capabilities, especially under varying conditions. This feature supports consistent energy output, using the target keyword: Solis 75K-5G-US-F.

    High Efficiency and Safety

    The inverter boasts a peak efficiency of 99%, with integrated safety features such as AFCI for arc fault protection. This ensures prolonged viability and safety of the system in both daily and adverse conditions.

    Intelligent String Monitoring

    Equipped with smart I-V curve scanning, the inverter enables precise string-level performance monitoring, facilitating swift identification of issues for improved system management.

    Flexible Installation Options

    With compatibility for bifacial modules and support for the "Y" type connection on the DC side, this inverter allows for versatile installation configurations, enhancing its adaptability and usability.

    How It Works

    The Solis 75K-5G-US-F inverter converts direct current (DC) into alternating current (AC), suitable for home or business use. Its multiple MPPTs ensure optimal energy conversion, adjusting dynamically to solar input variations.

    DC Connection Component

    The inverter uses an MC4 connector for DC connections, ensuring a secure and efficient transfer of energy from the solar panels to the inverter.

    AC Connection Design

    An OT terminal is utilized for AC connections, accommodating cables up to 185 mm², which supports higher currents and enhances the inverter's electrical performance.

    Cooling System

    The unit features an intelligent redundant fan-cooling system that adjusts cooling demands based on ambient temperature, maintaining optimal operational efficiency across diverse environments.

    Specifications

    Maximum Input Voltage 1000 V
    Rated Voltage 600 V
    Start-up Voltage 195 V
    MPPT Voltage Range 180-1000 V
    Maximum Input Current 8*26 A
    Rated Output Power 75 kW
    Rated Grid Voltage 3Ф/PE, 480 V
    Rated Grid Frequency 60 Hz
    Power Factor >0.99
    Max. Efficiency 98.7%
    Weight 187 lbs (85 kgs)
    Dimensions (W*H*D) 41.9*22.3*13.6 in (1065*567*344.5 mm)
    Operating Temperature Range -13°F~140°F (-25°C~60°C)
    Ingress Protection TYPE 4X
