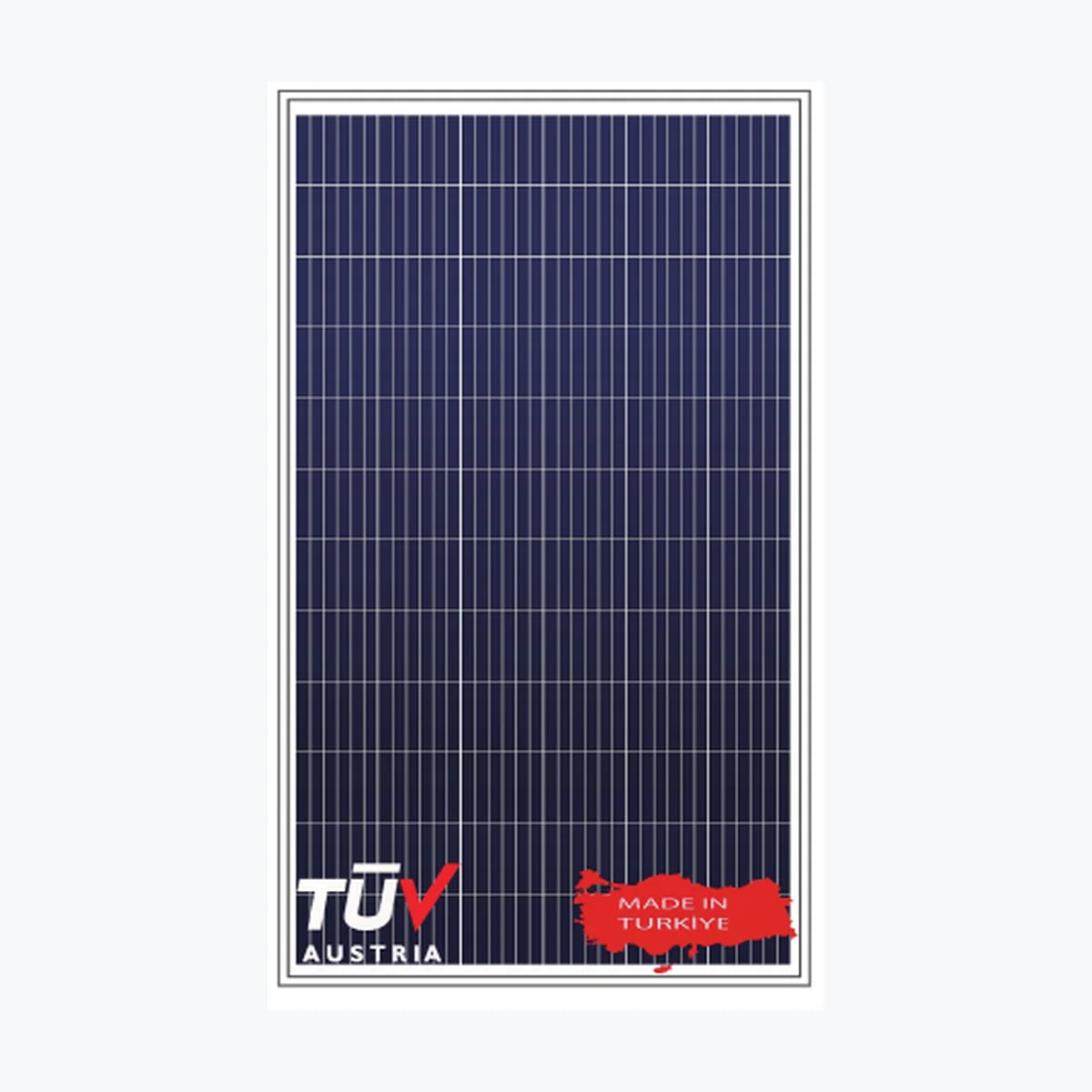

    SP Enerji SP-320P72

    SP Enerji SP-320P72

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-16470
    • Container price: $108.00 USD
    • Container qty: 720
    • Pallet price: $5.10 USD
    • Pallet qty: 30
    • Unit price: $0.20 USD
    View full details

    Product Description

    • Type Polycrystalline Model No. SP-320P72 Product Warranty 10 Years Power Warranty 10 Years of 91.2 %, 25 Years of 80.7 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 37.46 V Current at Maximum Power (Impp) 8.56 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 9.15 A Panel Efficiency 16.5 % Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.422 %/°C Temperature Coefficient of Voc -0.3326 %/°C Temperature Coefficient of Isc 0.0546 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1956x992x40 mm Weight 23 kg Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

      Power Range: 315 ~ 335 Wp
      Panel Efficiency: 16.23 ~ 17.26 %
      Weight: 23 kg
      Seller Name: Sp Enerji̇ Elektri̇k Üreti̇m Ltd. Şti̇.
      Country: Turkey
