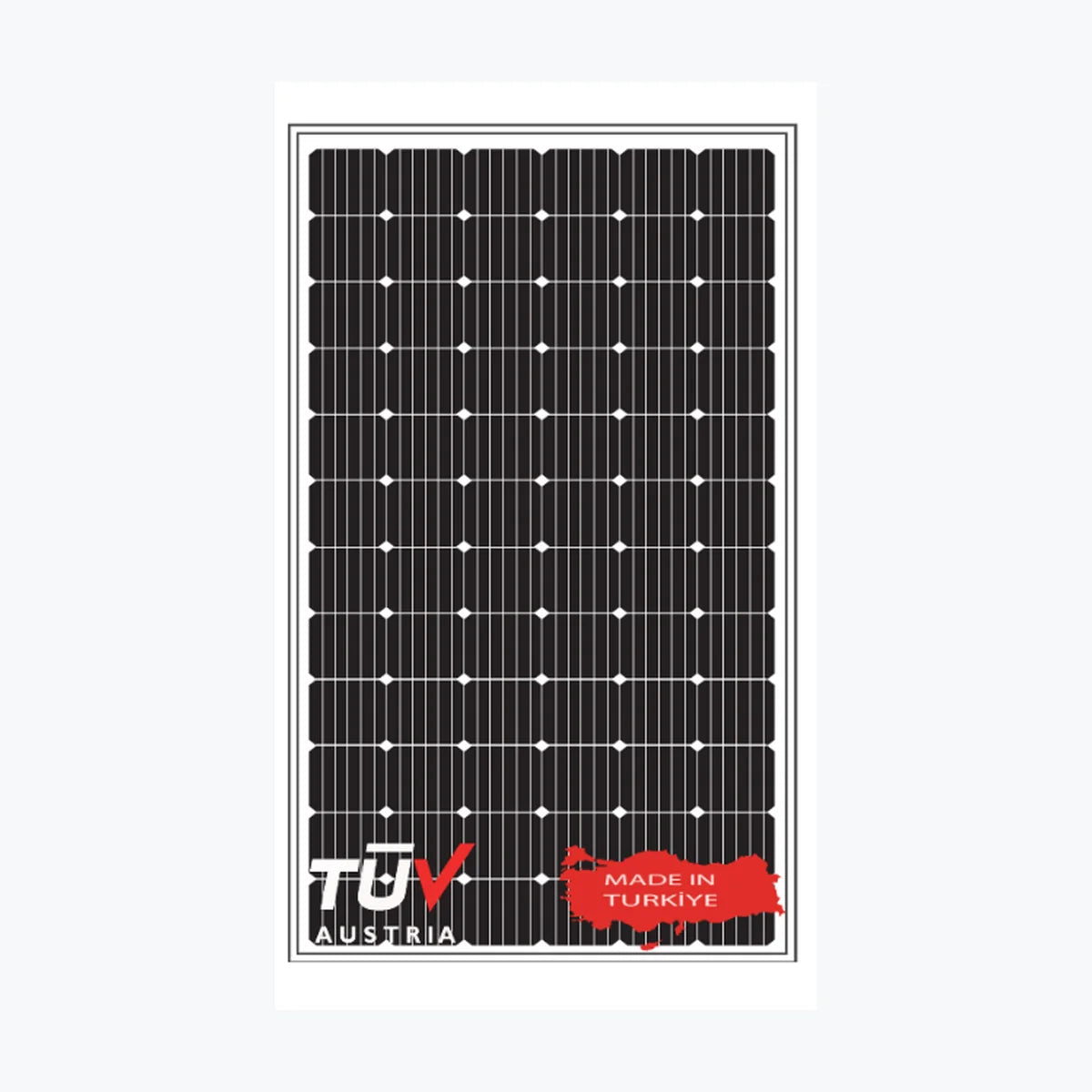

    SP Enerji SP410M72

    SP Enerji SP410M72

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-16488
    • Container price: $113.40 USD
    • Container qty: 720
    • Pallet price: $5.35 USD
    • Pallet qty: 30
    • Unit price: $0.21 USD
    View full details

    Product Description

    • Model No. SP410M72 Product Warranty 10 Years Power Warranty 10 Years of 91.2 %, 25 Years of 85 % Total Degradation Rate ⏳ 0.6 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 410 Wp Voltage at Maximum Power (Vmpp) 42.3 V Current at Maximum Power (Impp) 9.72 A Open Circuit Voltage (Voc) 50.3 V Short Circuit Current (Isc) 10.61 A Panel Efficiency 20.67 % Temperature 46±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.370 %/°C Temperature Coefficient of Voc -0.280 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1979x1002x40 mm Weight 23.5 kg Cell Size 158.75×158.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 385 ~ 410 Wp
      Panel Efficiency: 19.42 ~ 20.67 %
      Weight: 23.5 kg
      Seller Name: Sp Enerji̇ Elektri̇k Üreti̇m Ltd. Şti̇.
      Country: Turkey
