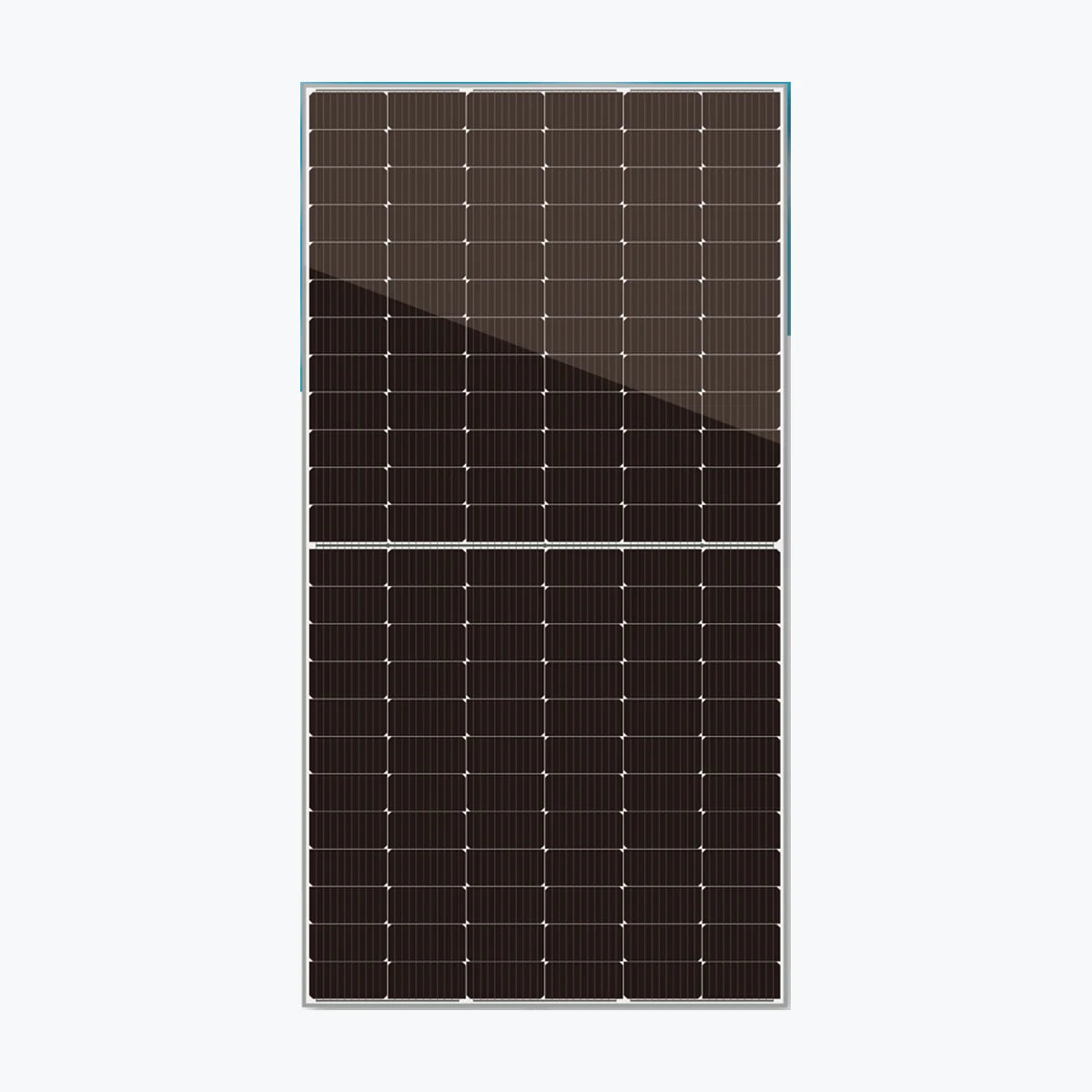

    SpolarPV SP560HM6-72L

    SpolarPV SP560HM6-72L

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18526
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,353
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. SP560HM6-72L Product Warranty 12 Years Power Warranty 12 Years of 90 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 42.88 V Current at Maximum Power (Impp) 13.06 A Open Circuit Voltage (Voc) 51.91 V Short Circuit Current (Isc) 13.83 A Panel Efficiency 21.7 % Maximum Power (Pmax) 423 Wp Voltage at Maximum Power (Vmpp) 40.5 V Current at Maximum Power (Impp) 10.45 A Open Circuit Voltage (Voc) 48.2 V Short Circuit Current (Isc) 11.06 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.350 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1135x35 mm Weight 28 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Bo

      Technology: PERC
      Power Range: 525 ~ 560 Wp
      Panel Efficiency: 20.3 ~ 21.7 %
      Weight: 28 kg
      Seller Name: SpolarPV Technology Co., Ltd.
      Country: China
