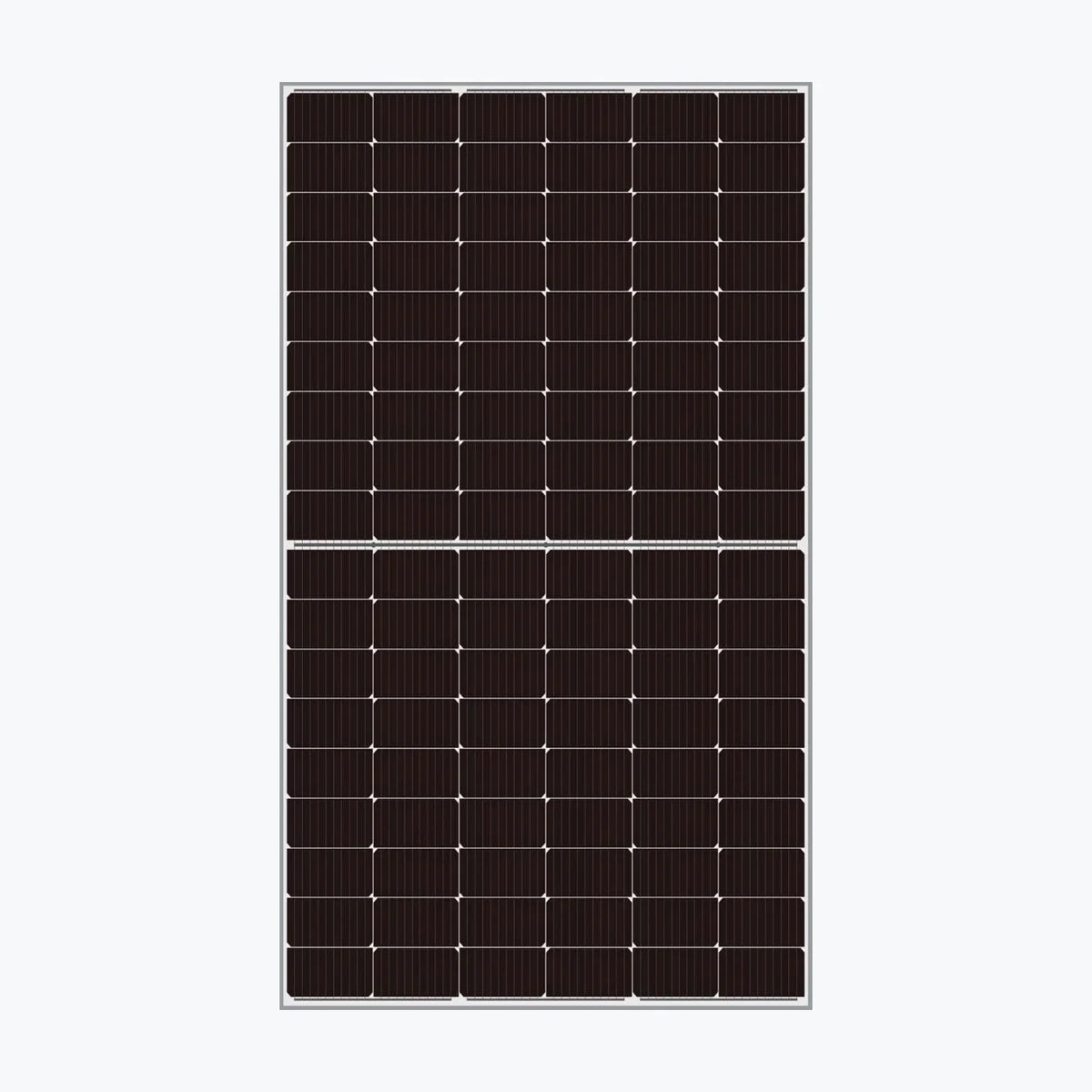

SpolarPV SPV445-TM10-108
PayPal Pay in 4 interest-free payments of $39.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-18576
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. SPV445-TM10-108 Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 33.12 V Current at Maximum Power (Impp) 13.44 A Open Circuit Voltage (Voc) 40.15 V Short Circuit Current (Isc) 14.37 A Panel Efficiency 22.83 % Maximum Power (Pmax) 339 Wp Voltage at Maximum Power (Vmpp) 30.78 V Current at Maximum Power (Impp) 11.01 A Open Circuit Voltage (Voc) 37.31 V Short Circuit Current (Isc) 11.57 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1721x1133x30 mm Weight 21.5 kg Cell Size 182×91 mm Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junctio
Technology: TOPCon
Power Range: 420 ~ 445 Wp
Panel Efficiency: 21.54 ~ 22.83 %
Weight: 21.5 kg
Seller Name: SpolarPV Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-18576 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
