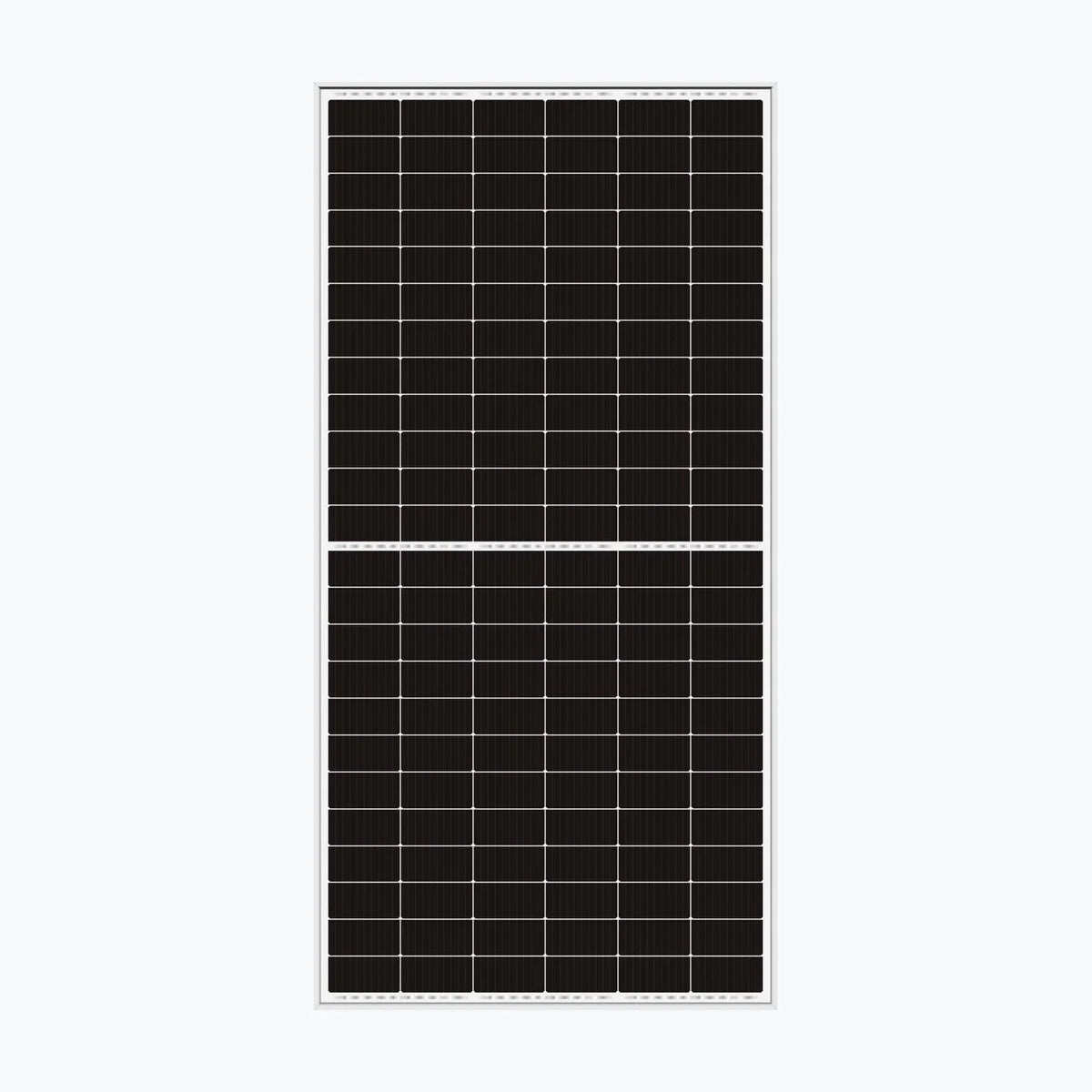

SpolarPV SPV590-TM10-144
PayPal Pay in 4 interest-free payments of $51.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-18601
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. SPV590-TM10-144 Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 43.38 V Current at Maximum Power (Impp) 13.6 A Open Circuit Voltage (Voc) 52.27 V Short Circuit Current (Isc) 14.53 A Panel Efficiency 22.85 % Maximum Power (Pmax) 447 Wp Voltage at Maximum Power (Vmpp) 40.22 V Current at Maximum Power (Impp) 11.12 A Open Circuit Voltage (Voc) 48.63 V Short Circuit Current (Isc) 11.89 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1133x30 mm Weight 26.5 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Juncti
Technology: TOPCon
Power Range: 565 ~ 590 Wp
Panel Efficiency: 21.89 ~ 22.85 %
Weight: 26.5 kg
Seller Name: SpolarPV Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-18601 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
