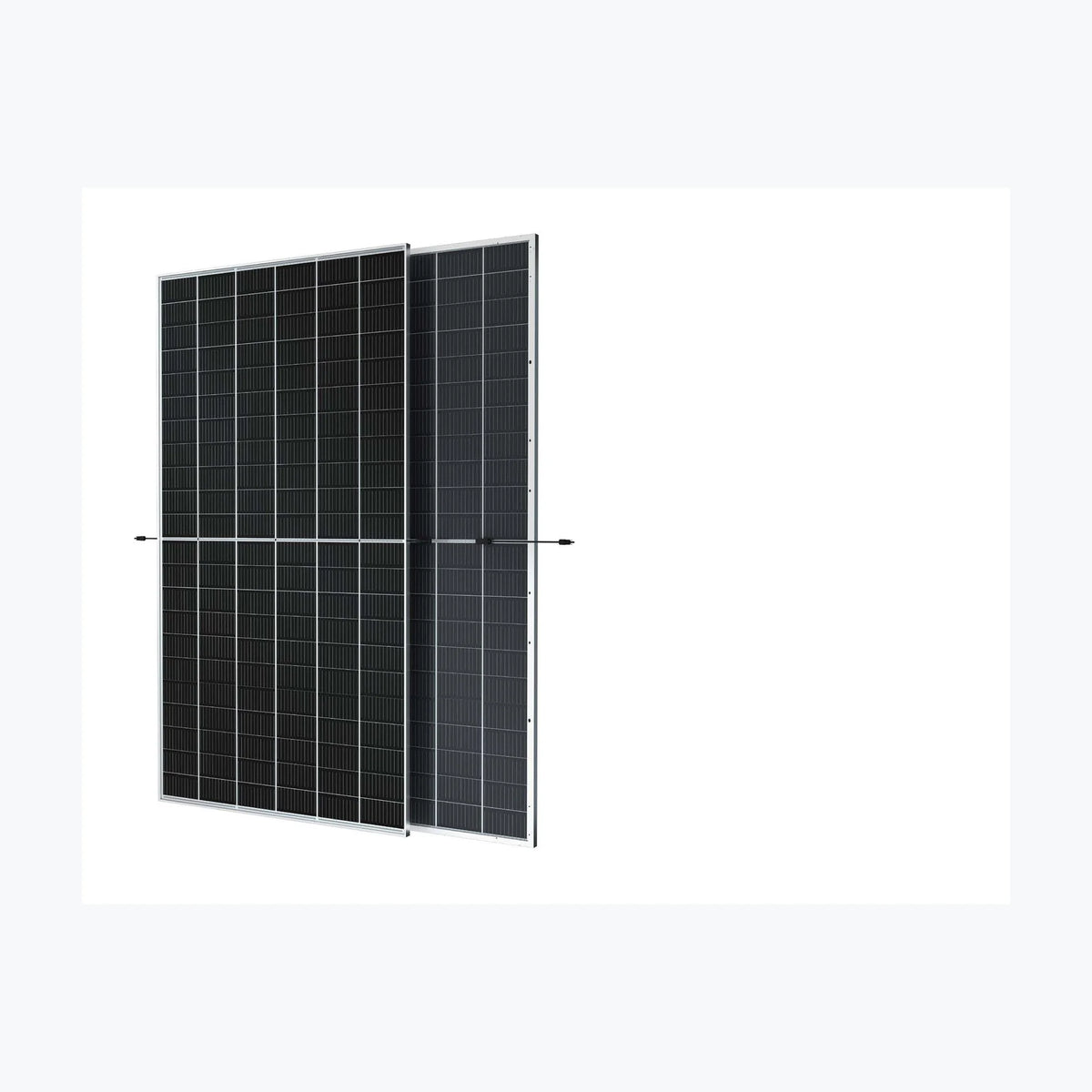

    SpolarPV SPV670-TG12-132BD

    SpolarPV SPV670-TG12-132BD

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18604
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,478
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. SPV670-TG12-132BD Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 670 Wp Voltage at Maximum Power (Vmpp) 39.21 V Current at Maximum Power (Impp) 17.09 A Open Circuit Voltage (Voc) 46.5 V Short Circuit Current (Isc) 17.9 A Panel Efficiency 21.59 % Maximum Power (Pmax) 510 Wp Voltage at Maximum Power (Vmpp) 36.81 V Current at Maximum Power (Impp) 13.85 A Open Circuit Voltage (Voc) 44.52 V Short Circuit Current (Isc) 14.58 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2383x1303x30 mm Weight 38 kg Cell Size 210×105 mm Cell Number 132 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Clas

      Technology: TOPCon
      Power Range: 660 ~ 680 Wp
      Panel Efficiency: 21.28 ~ 21.92 %
      Weight: 38 kg
      Seller Name: SpolarPV Technology Co., Ltd.
      Country: China
