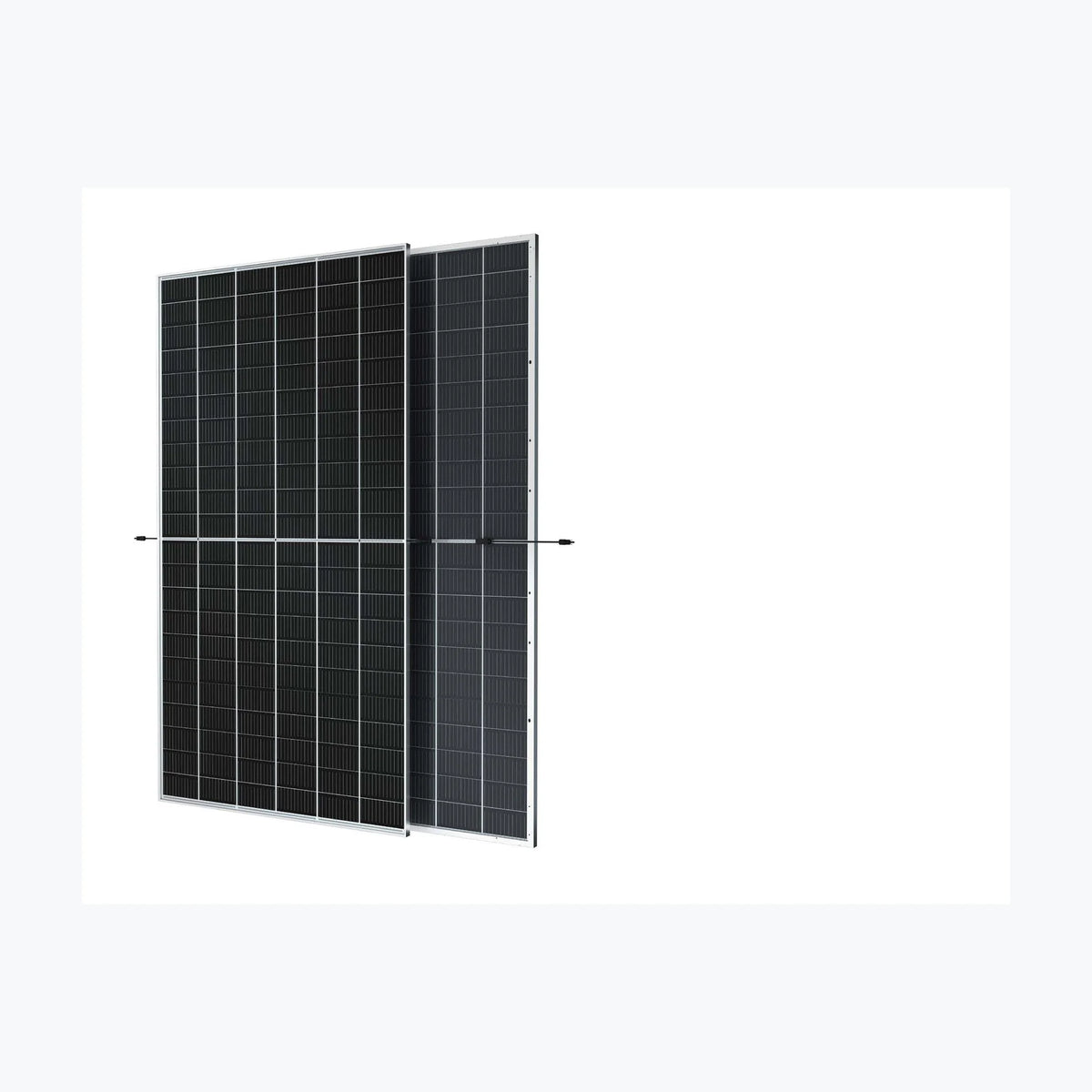

SpolarPV SPV680-TG12-132BD
PayPal Pay in 4 interest-free payments of $13.70 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-18606
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. SPV680-TG12-132BD Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 680 Wp Voltage at Maximum Power (Vmpp) 39.63 V Current at Maximum Power (Impp) 17.18 A Open Circuit Voltage (Voc) 46.9 V Short Circuit Current (Isc) 17.96 A Panel Efficiency 21.92 % Maximum Power (Pmax) 517 Wp Voltage at Maximum Power (Vmpp) 37.18 V Current at Maximum Power (Impp) 13.93 A Open Circuit Voltage (Voc) 44.89 V Short Circuit Current (Isc) 14.67 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2383x1303x30 mm Weight 38 kg Cell Size 210×105 mm Cell Number 132 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Cla
Technology: TOPCon
Power Range: 660 ~ 680 Wp
Panel Efficiency: 21.28 ~ 21.92 %
Weight: 38 kg
Seller Name: SpolarPV Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-18606 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
