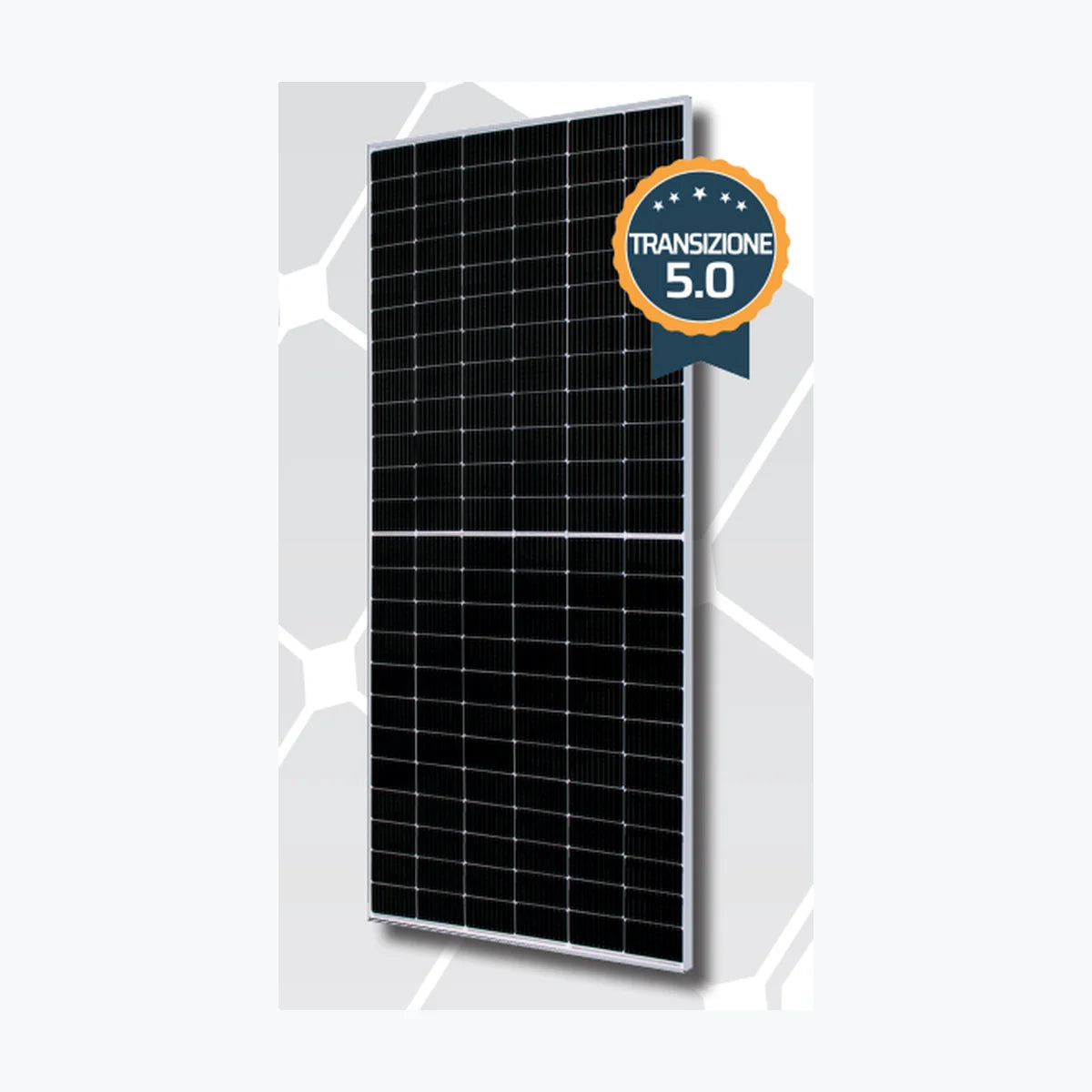

    Sunerg Solar XMHCTQ565BFDG+H

    Sunerg Solar XMHCTQ565BFDG+H

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19216
    • Container price: $70.20 USD
    • Container qty: 720
    • Pallet price: $3.32 USD
    • Pallet qty: 30
    • Unit price: $0.13 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. XMHCTQ565BFDG+H Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 87 % Total Degradation Rate ⏳ 0.52 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 565 Wp Voltage at Maximum Power (Vmpp) 41.78 V Current at Maximum Power (Impp) 13.53 A Open Circuit Voltage (Voc) 50.6 V Short Circuit Current (Isc) 14.32 A Panel Efficiency 21.87 % Maximum Power (Pmax) 427.8 Wp Voltage at Maximum Power (Vmpp) 39.7 V Current at Maximum Power (Impp) 10.78 A Open Circuit Voltage (Voc) 48.1 V Short Circuit Current (Isc) 11.57 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.289 %/°C Temperature Coefficient of Voc -0.244 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 30 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP

      Technology: Bifacial, TOPCon, N-type
      Power Range: 565 ~ 580 Wp
      Panel Efficiency: 21.87 ~ 22.45 %
      Weight: 30 kg
      Seller Name: Sunerg Solar Energy S.r.l.
      Country: Italy
