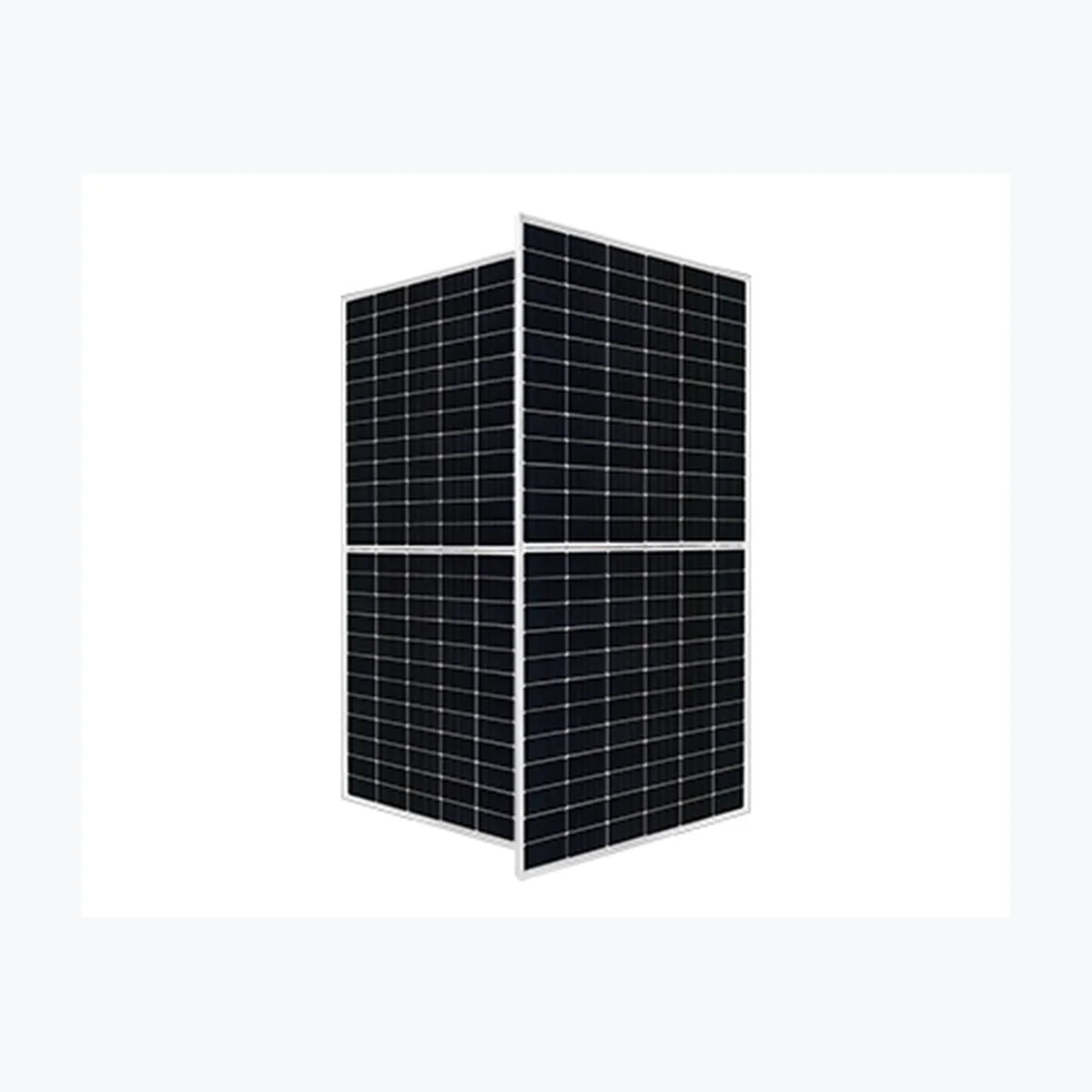

    SunEvo Solar JAM78D40-620/MB

    SunEvo Solar JAM78D40-620/MB

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18785
    • Brand: JA Solar
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,027
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. JAM78D40-620/MB Product Warranty 12 Years Power Warranty 15 Years of 93.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 620 Wp Voltage at Maximum Power (Vmpp) 46.2 V Current at Maximum Power (Impp) 13.42 A Open Circuit Voltage (Voc) 55.34 V Short Circuit Current (Isc) 14.3 A Panel Efficiency 22.2 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2465x1134x35 mm Weight 34.6 kg Cell Number 156 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1500 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial
      Power Range: 620 ~ 625 Wp
      Panel Efficiency: 22.2 ~ 22.4 %
      Weight: 34.6 kg
      Seller Name: SunEvo Solar Co., Ltd.
      Country: China
