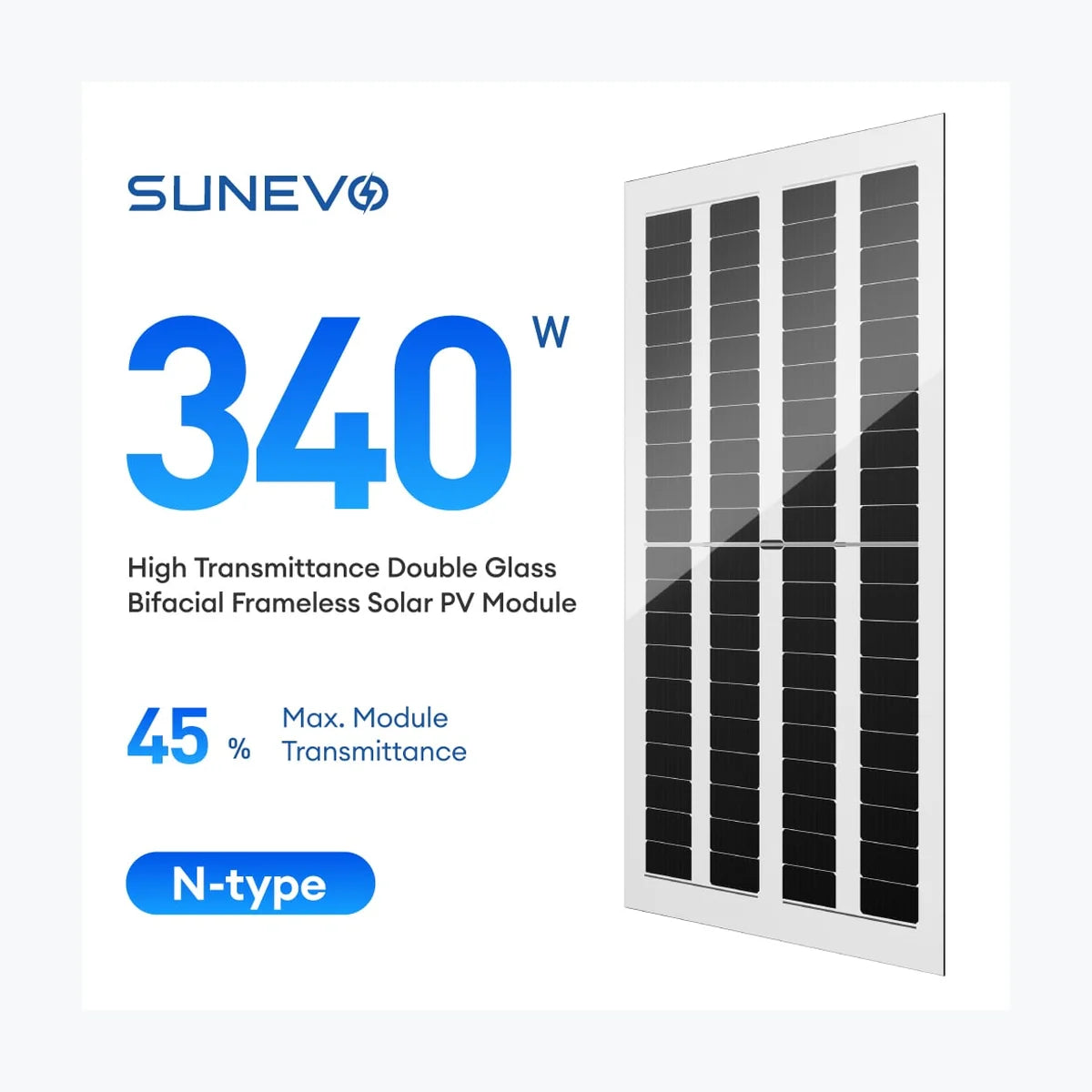

SunEvo Solar SE5-40HBD 340W
PayPal Pay in 4 interest-free payments of $29.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-18798
- Unit price
- $0.35/W
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. SE5-40HBD 340W Product Warranty 25 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1.52 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 25.4 V Current at Maximum Power (Impp) 13.38 A Open Circuit Voltage (Voc) 28.7 V Short Circuit Current (Isc) 14.29 A Panel Efficiency 14.4 % Temperature 42±3 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc +0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2088x1128x5 mm Weight 27 kg Cell Number 80 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type EVA Frame Type Frameless Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Bifacial
Power Range: 320 ~ 340 Wp
Panel Efficiency: 13.6 ~ 14.4 %
Weight: 27 kg
Seller Name: SunEvo Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-18798 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
