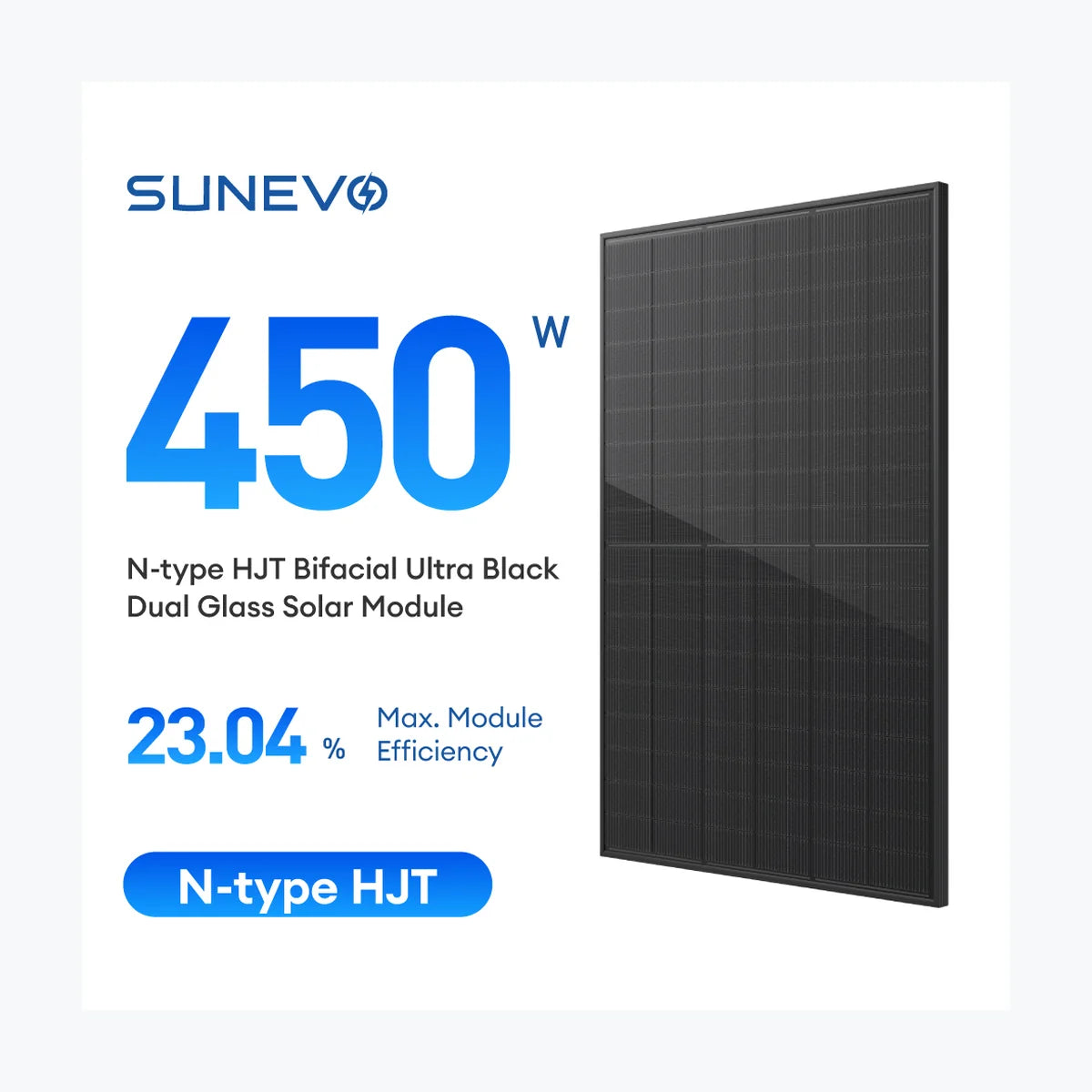

    SunEvo Solar SE5-54HBD 450

    SunEvo Solar SE5-54HBD 450

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18825
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,795
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. SE5-54HBD 450 Product Warranty 25 Years Power Warranty 30 Years of 88 % Total Degradation Rate ⏳ 0.4 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 450 Wp Voltage at Maximum Power (Vmpp) 34.51 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 41.34 V Short Circuit Current (Isc) 13.5 A Panel Efficiency 23.04 % Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc +0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 23.5 kg Cell Number 108 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial, HJT
      Power Range: 430 ~ 450 Wp
      Panel Efficiency: 22.02 ~ 23.04 %
      Weight: 23.5 kg
      Seller Name: SunEvo Solar Co., Ltd.
      Country: China
