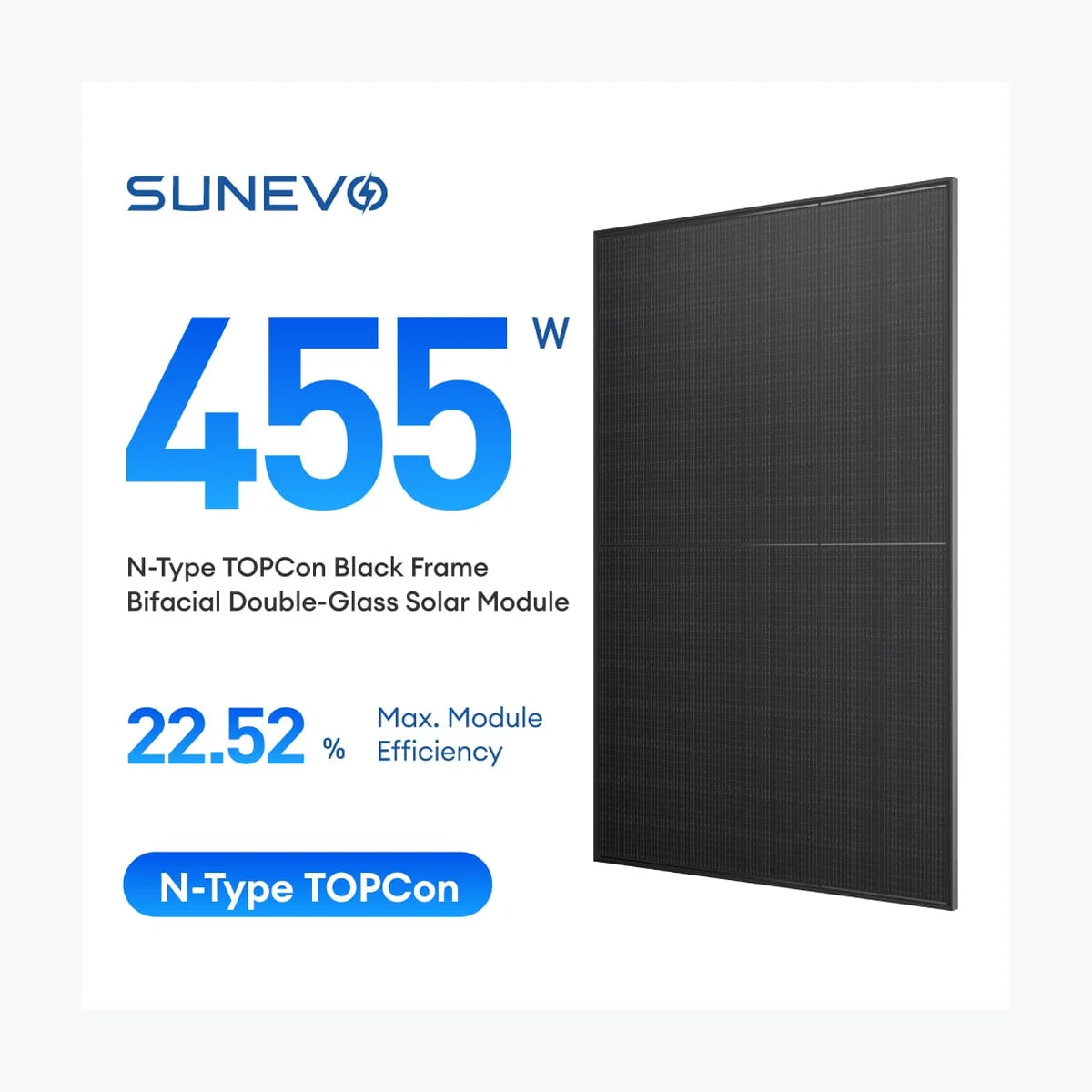

    SunEvo Solar SE6R-48HBD-455M

    SunEvo Solar SE6R-48HBD-455M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18909
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,958
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. SE6R-48HBD-455M Product Warranty 30 Years Power Warranty 12 Years of 95 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +0.8 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 29.98 V Current at Maximum Power (Impp) 15.18 A Open Circuit Voltage (Voc) 36.13 V Short Circuit Current (Isc) 16.02 A Panel Efficiency 22.52 % Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc +0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 25 kg Cell Size 210×182 mm Cell Number 96 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Technology: TOPCon, N-type
      Power Range: 435 ~ 455 Wp
      Panel Efficiency: 21.77 ~ 22.52 %
      Weight: 25 kg
      Seller Name: SunEvo Solar Co., Ltd.
      Country: China
