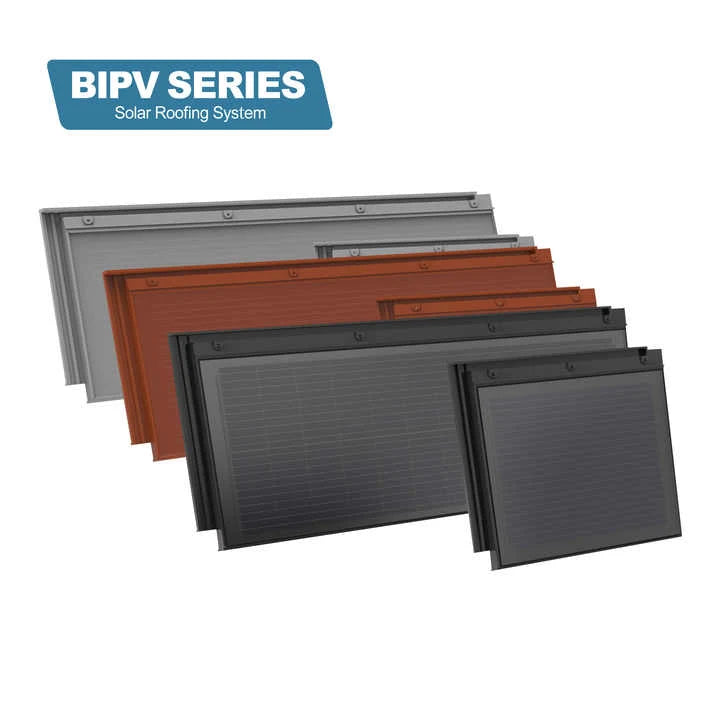

Sunket New Energy Mystic Dawn Tile
PayPal Pay in 4 interest-free payments of $20.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-19420
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. Mystic Dawn Tile Product Warranty 12 Years Power Warranty 25 Years of 89.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +4.99 % Maximum Power (Pmax) 135 Wp Voltage at Maximum Power (Vmpp) 22.03 V Current at Maximum Power (Impp) 6.13 A Open Circuit Voltage (Voc) 25.31 V Short Circuit Current (Isc) 6.45 A Panel Efficiency 18.85 % Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3904 %/°C Temperature Coefficient of Voc -0.286 %/°C Temperature Coefficient of Isc 0.0268 %/°C Panel Dimension (H/W/D) 2000x422x25 mm Weight 9.3 kg Cell Size 182×182 mm Cell Number 36 Glass Type Anti-reflection Coating Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet
Technology: BIPV, N-type
Power Range: 135 Wp
Panel Efficiency: 18.85%
Weight: 9.3 kg
Seller Name: Wuxi Sunket New Energy Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-19420 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
