    In Stock

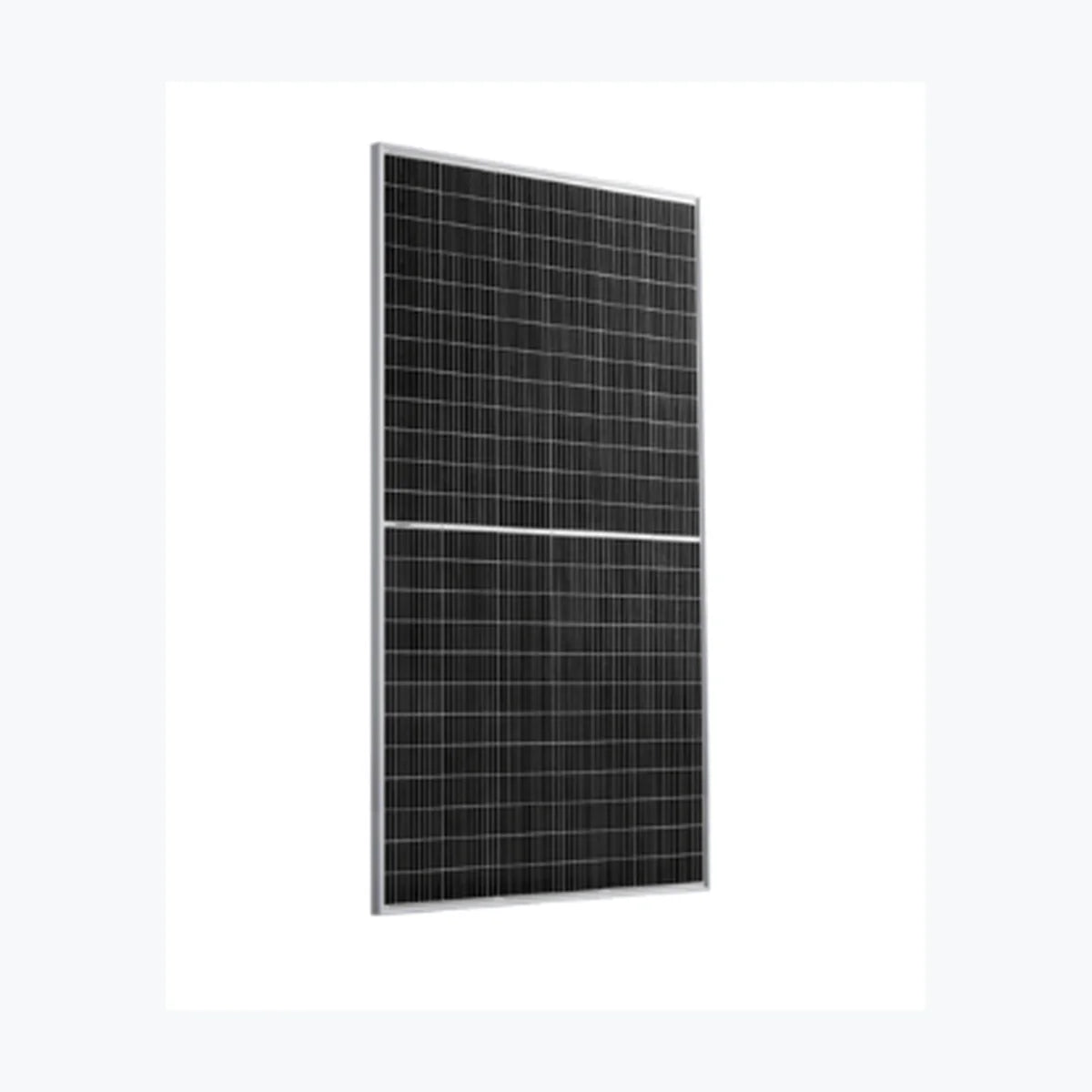

    Sunlike Solar LNSU-390M

    Sunlike Solar LNSU-390M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19528
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,864
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNSU-390M Product Warranty 10 Years Power Warranty 25 Years of 80.2 % Total Degradation Rate ⏳ 0.79 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 390 Wp Voltage at Maximum Power (Vmpp) 40.63 V Current at Maximum Power (Impp) 9.6 A Open Circuit Voltage (Voc) 49.61 V Short Circuit Current (Isc) 10.14 A Panel Efficiency 19.32 % Maximum Power (Pmax) 289 Wp Voltage at Maximum Power (Vmpp) 37.48 V Current at Maximum Power (Impp) 7.71 A Open Circuit Voltage (Voc) 45.72 V Short Circuit Current (Isc) 8.17 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2015x1002x40 mm Weight 24.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 C

      Power Range: 390 ~ 410 Wp
      Panel Efficiency: 19.32 ~ 20.31 %
      Weight: 24.5 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
