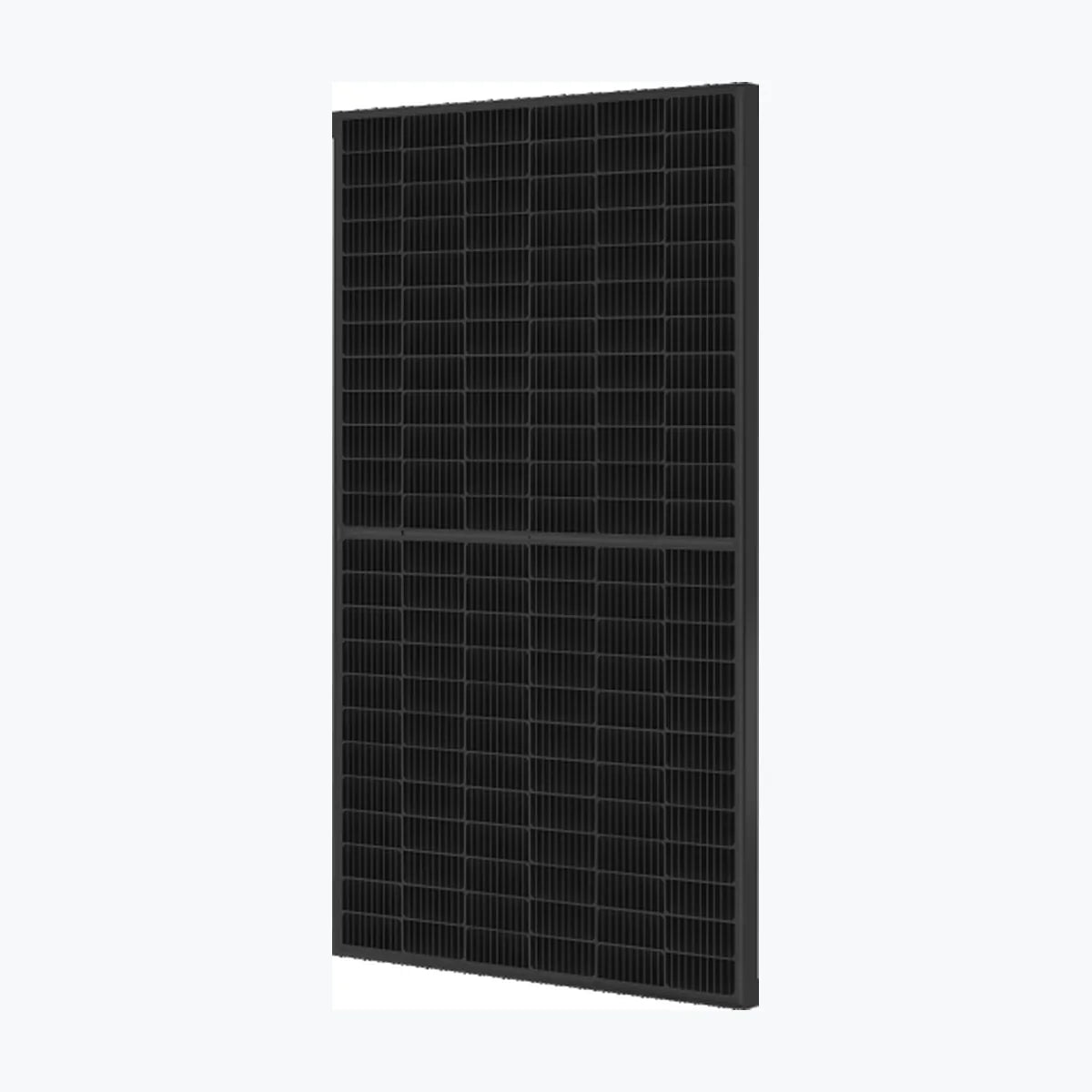

    Sunlike Solar LNSU-430M

    Sunlike Solar LNSU-430M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19533
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,222
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNSU-430M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 40.6 V Current at Maximum Power (Impp) 10.59 A Open Circuit Voltage (Voc) 49.2 V Short Circuit Current (Isc) 11.3 A Panel Efficiency 19.75 % Maximum Power (Pmax) 318 Wp Voltage at Maximum Power (Vmpp) 37.46 V Current at Maximum Power (Impp) 8.49 A Open Circuit Voltage (Voc) 45.45 V Short Circuit Current (Isc) 9.03 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2095x1039x35 mm Weight 23 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2

      Power Range: 430 ~ 450 Wp
      Panel Efficiency: 19.75 ~ 20.67 %
      Weight: 23 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
