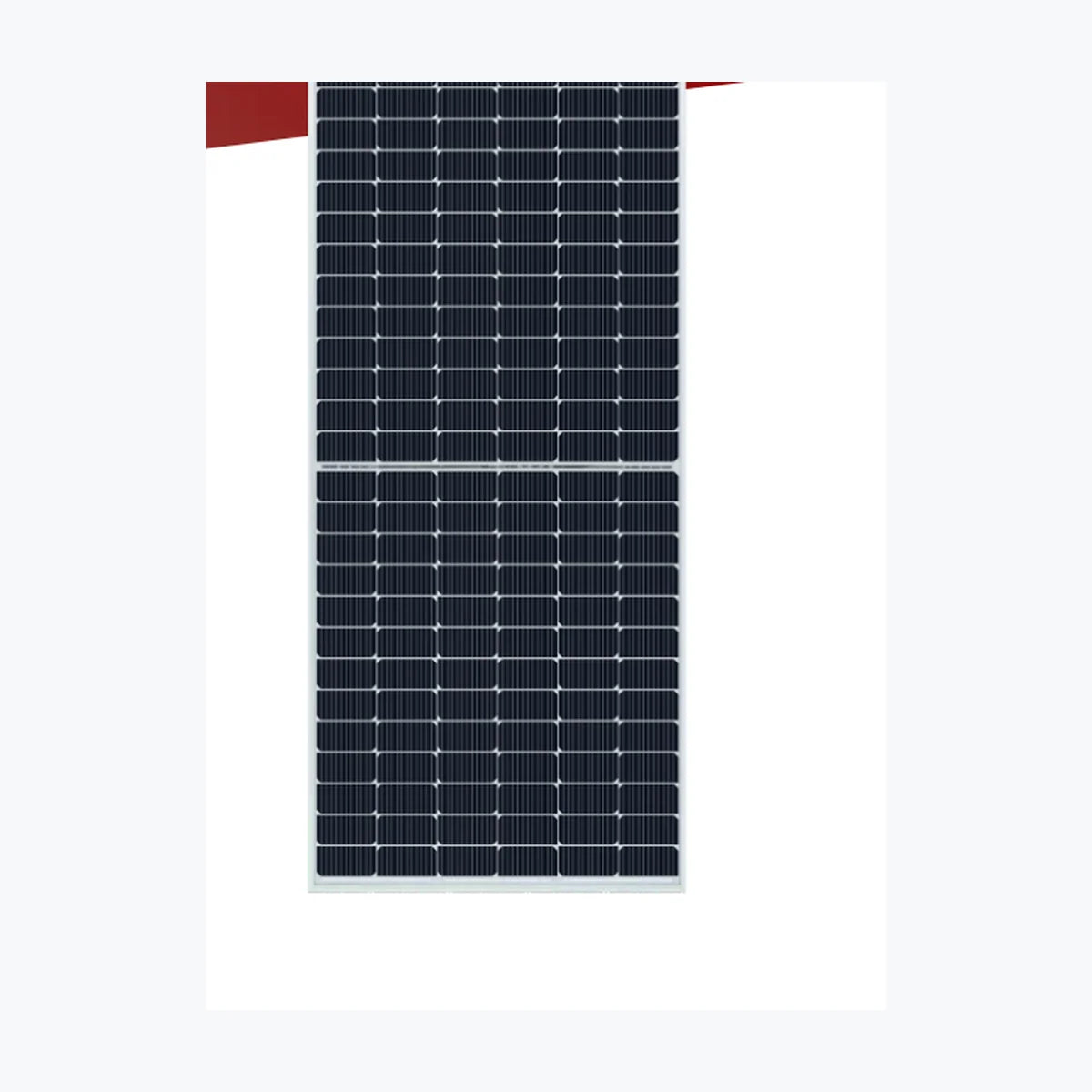

    Sunlike Solar LNVH-580M

    Sunlike Solar LNVH-580M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19549
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,587
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNVH-580M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 45.45 V Current at Maximum Power (Impp) 12.76 A Open Circuit Voltage (Voc) 53.62 V Short Circuit Current (Isc) 13.66 A Panel Efficiency 20.75 % Maximum Power (Pmax) 441 Wp Voltage at Maximum Power (Vmpp) 41.25 V Current at Maximum Power (Impp) 10.69 A Open Circuit Voltage (Voc) 49.47 V Short Circuit Current (Isc) 11.31 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x35 mm Weight 30 kg Cell Number 156 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm

      Power Range: 560 ~ 595 Wp
      Panel Efficiency: 20.75 ~ 21.46 %
      Weight: 30 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
