1 0

    In Stock

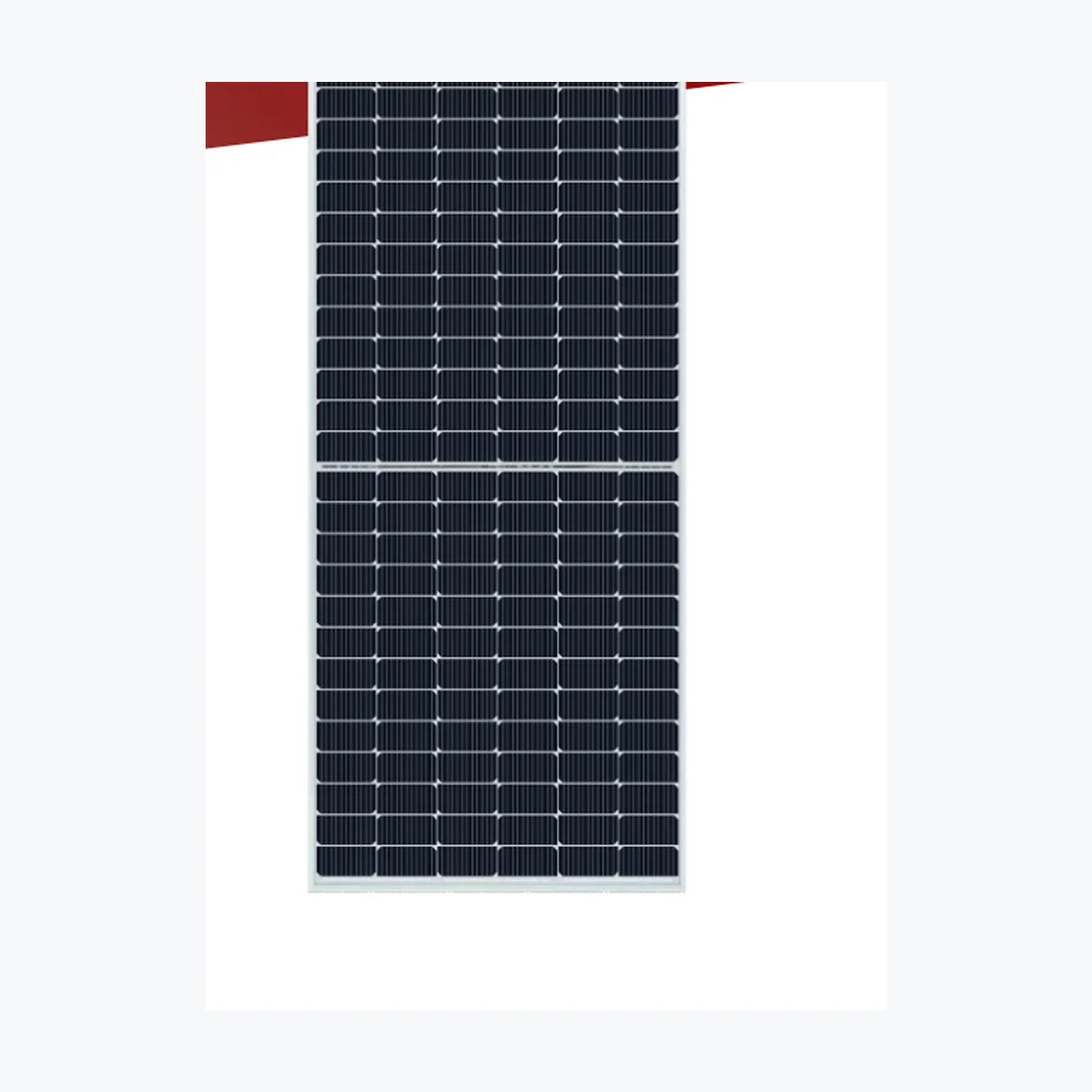

    Sunlike Solar LNVH-585M

    Sunlike Solar LNVH-585M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19550
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,588
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNVH-585M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 585 Wp Voltage at Maximum Power (Vmpp) 45.6 V Current at Maximum Power (Impp) 12.83 A Open Circuit Voltage (Voc) 53.75 V Short Circuit Current (Isc) 13.73 A Panel Efficiency 20.93 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 41.47 V Current at Maximum Power (Impp) 10.73 A Open Circuit Voltage (Voc) 49.69 V Short Circuit Current (Isc) 11.35 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x35 mm Weight 30 kg Cell Number 156 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2

      Power Range: 560 ~ 595 Wp
      Panel Efficiency: 20.75 ~ 21.46 %
      Weight: 30 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
