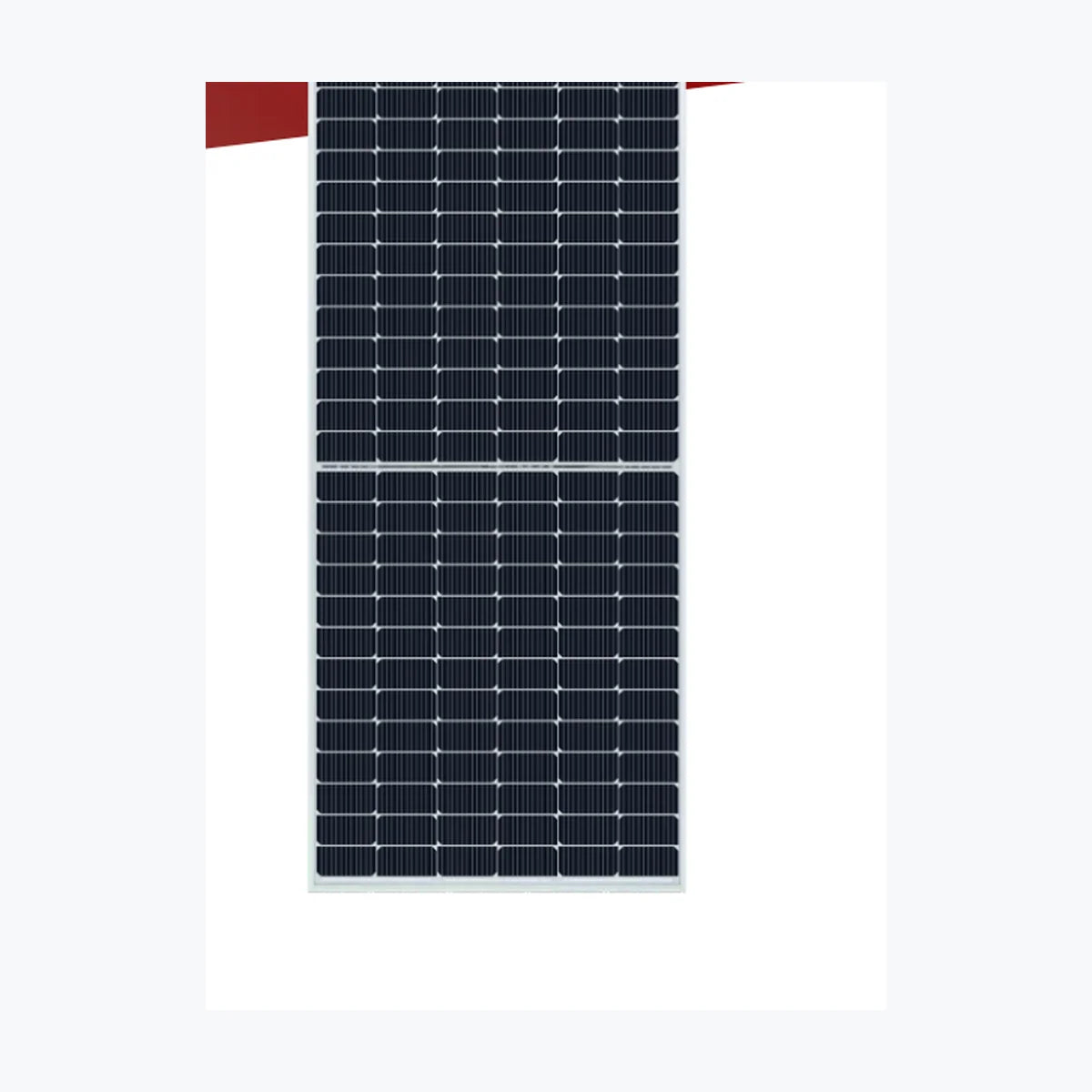

    Sunlike Solar LNVH-600M

    Sunlike Solar LNVH-600M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19553
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,586
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNVH-600M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 46.01 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 54.12 V Short Circuit Current (Isc) 13.94 A Panel Efficiency 21.46 % Maximum Power (Pmax) 457 Wp Voltage at Maximum Power (Vmpp) 42.12 V Current at Maximum Power (Impp) 10.85 A Open Circuit Voltage (Voc) 50.35 V Short Circuit Current (Isc) 11.47 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x35 mm Weight 30 kg Cell Number 156 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm

      Power Range: 560 ~ 595 Wp
      Panel Efficiency: 20.75 ~ 21.46 %
      Weight: 30 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
