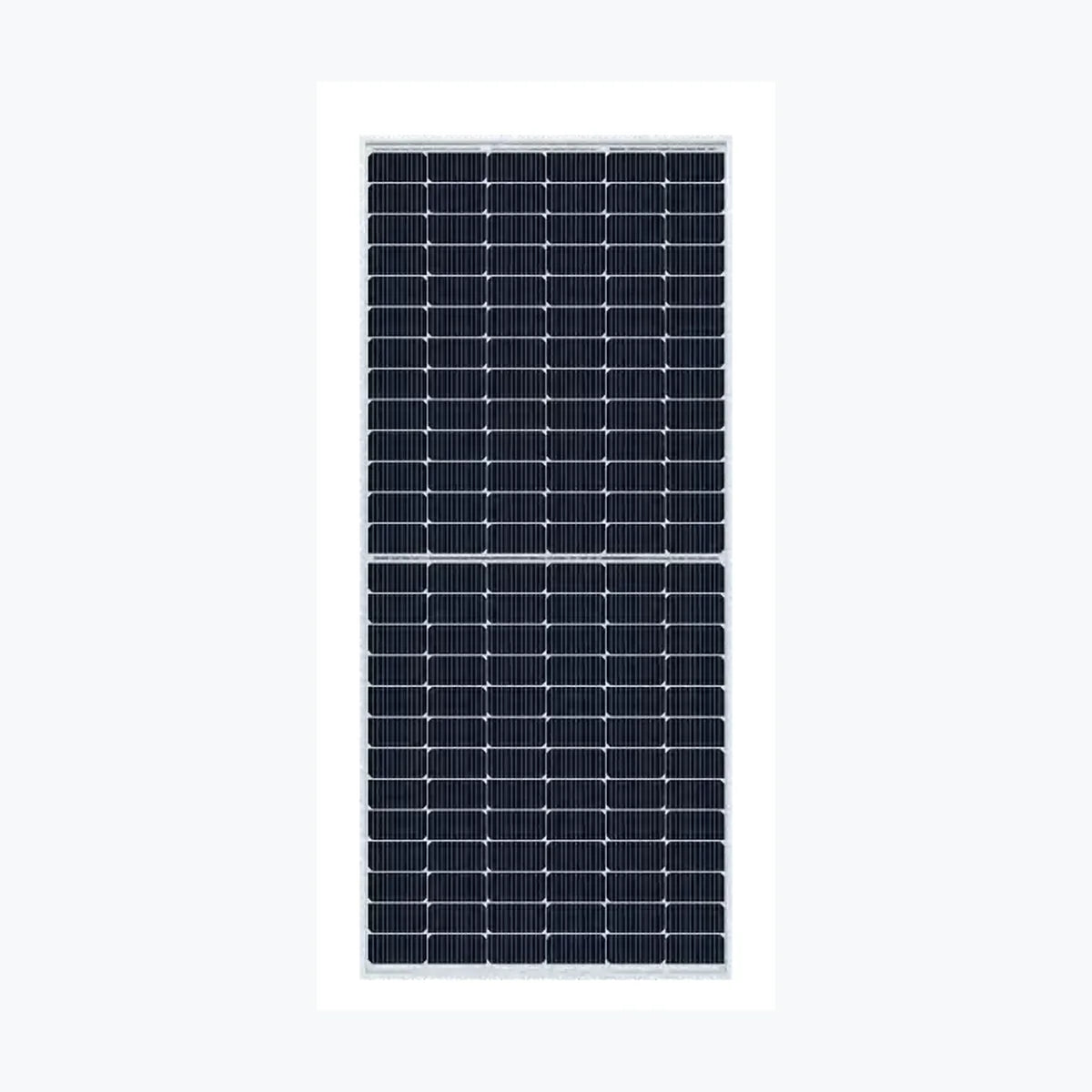

Sunlike Solar LNVH-630N
PayPal Pay in 4 interest-free payments of $55.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-19558
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. LNVH-630N Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 630 Wp Voltage at Maximum Power (Vmpp) 46.19 V Current at Maximum Power (Impp) 13.64 A Open Circuit Voltage (Voc) 55.74 V Short Circuit Current (Isc) 14.46 A Panel Efficiency 22.54 % Maximum Power (Pmax) 475 Wp Voltage at Maximum Power (Vmpp) 42.87 V Current at Maximum Power (Impp) 11.08 A Open Circuit Voltage (Voc) 53.13 V Short Circuit Current (Isc) 11.65 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x35 mm Weight 30 kg Cell Number 156 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm
Technology: TOPCon, N-type
Power Range: 610 ~ 630 Wp
Panel Efficiency: 21.82 ~ 22.54 %
Weight: 30 kg
Seller Name: Sunlike Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-19558 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
