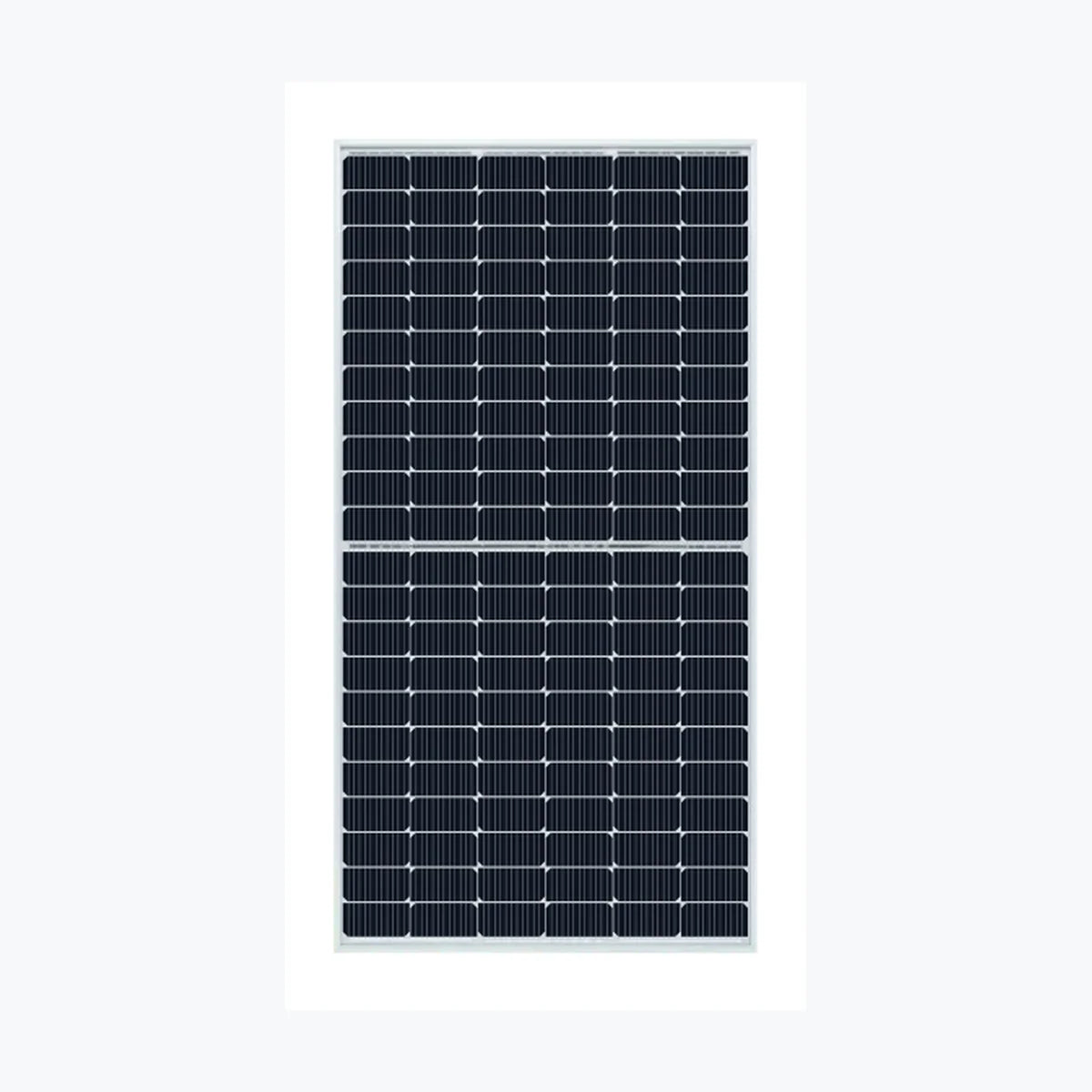

    Sunlike Solar LNVT-480MD

    Sunlike Solar LNVT-480MD

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19566
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,481
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNVT-480MD Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 39.9 V Current at Maximum Power (Impp) 12.03 A Open Circuit Voltage (Voc) 48.18 V Short Circuit Current (Isc) 12.92 A Panel Efficiency 20.14 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2102x1134x30 mm Weight 28.5 kg Cell Number 132 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial
      Power Range: 480 ~ 500 Wp
      Panel Efficiency: 20.14 ~ 20.98 %
      Weight: 28.5 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
