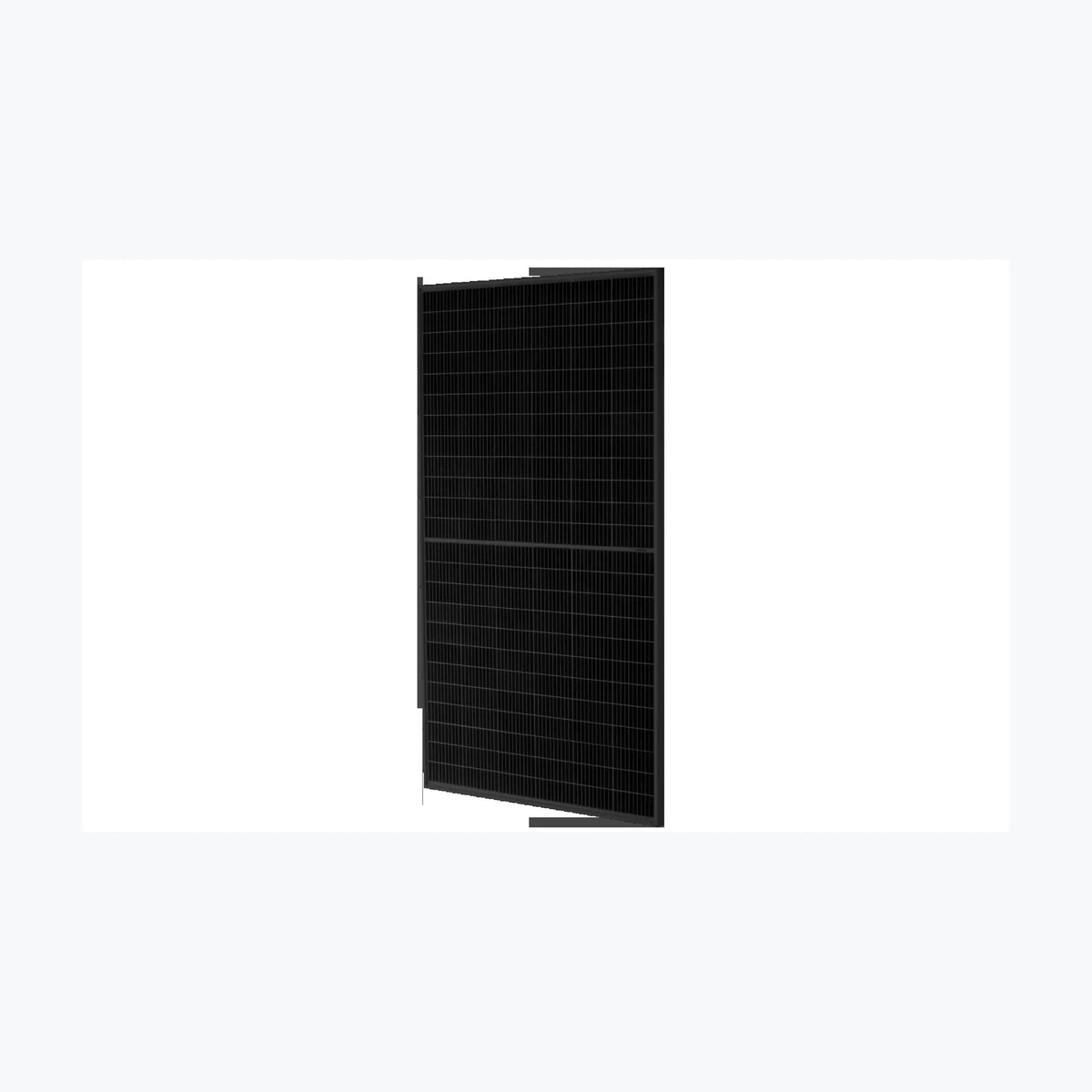

Sunlike Solar LNVU-525M
PayPal Pay in 4 interest-free payments of $46.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-19576
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. LNVU-525M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 525 Wp Voltage at Maximum Power (Vmpp) 41.47 V Current at Maximum Power (Impp) 12.66 A Open Circuit Voltage (Voc) 49.59 V Short Circuit Current (Isc) 13.55 A Panel Efficiency 20.31 % Maximum Power (Pmax) 397 Wp Voltage at Maximum Power (Vmpp) 38.73 V Current at Maximum Power (Impp) 10.25 A Open Circuit Voltage (Voc) 46.92 V Short Circuit Current (Isc) 10.87 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossec
Power Range: 525 ~ 545 Wp
Panel Efficiency: 20.31 ~ 21.09 %
Weight: 27.5 kg
Seller Name: Sunlike Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-19576 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
