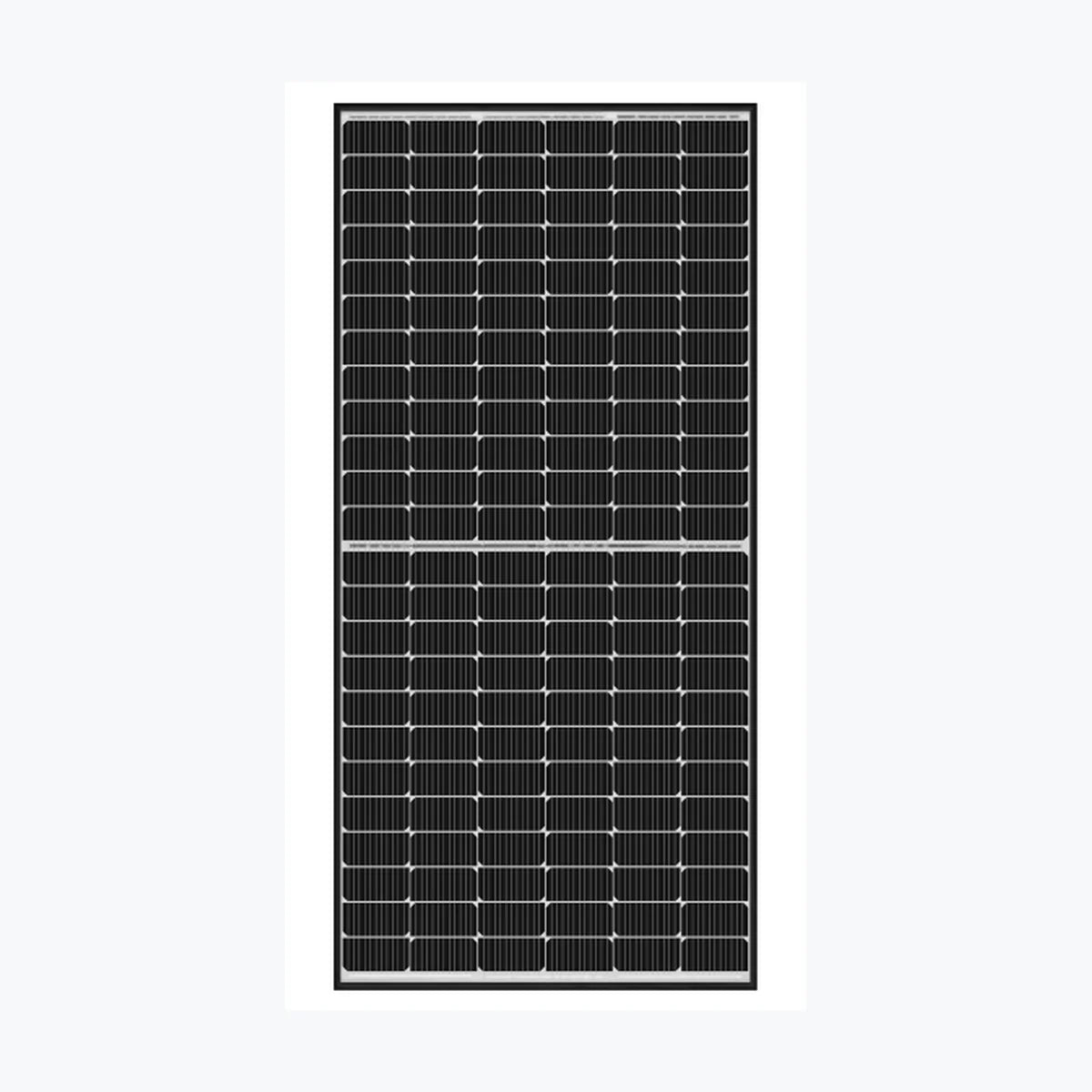

    Sunlike Solar LNVU-580N

    Sunlike Solar LNVU-580N

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19586
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,627
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNVU-580N Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 43.09 V Current at Maximum Power (Impp) 13.46 A Open Circuit Voltage (Voc) 51.57 V Short Circuit Current (Isc) 14.33 A Panel Efficiency 22.44 % Maximum Power (Pmax) 437 Wp Voltage at Maximum Power (Vmpp) 39.91 V Current at Maximum Power (Impp) 10.95 A Open Circuit Voltage (Voc) 49.14 V Short Circuit Current (Isc) 11.57 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc +0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crosse

      Technology: TOPCon, N-type
      Power Range: 560 ~ 580 Wp
      Panel Efficiency: 21.67 ~ 22.44 %
      Weight: 27.5 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
