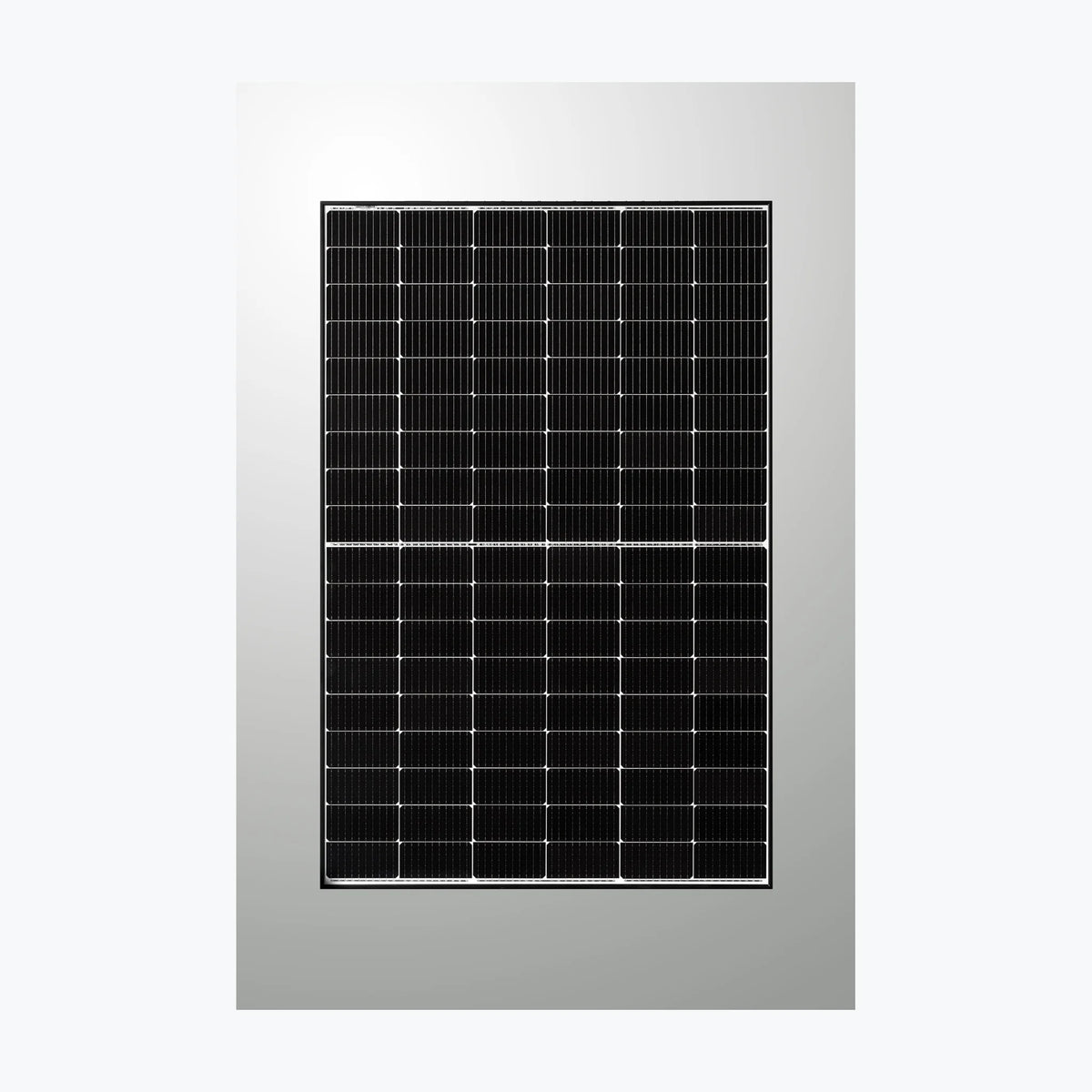

SunLink PV 405
PayPal Pay in 4 interest-free payments of $37.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-18922
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 405 Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 415 Wp Voltage at Maximum Power (Vmpp) 31.66 V Current at Maximum Power (Impp) 13.11 A Open Circuit Voltage (Voc) 37.5 V Short Circuit Current (Isc) 14 A Panel Efficiency 21.3 % Maximum Power (Pmax) 314 Wp Voltage at Maximum Power (Vmpp) 29.74 V Current at Maximum Power (Impp) 10.55 A Open Circuit Voltage (Voc) 31.61 V Short Circuit Current (Isc) 11.17 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 21.5 kg Cell Size 182×182 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protect
Technology: PERC
Power Range: 405 ~ 415 Wp
Panel Efficiency: 20.7 ~ 21.3 %
Weight: 21.5 kg
Seller Name: SunLink PV
Country: China
| SKU | PES-SPS-SOL-18922 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
