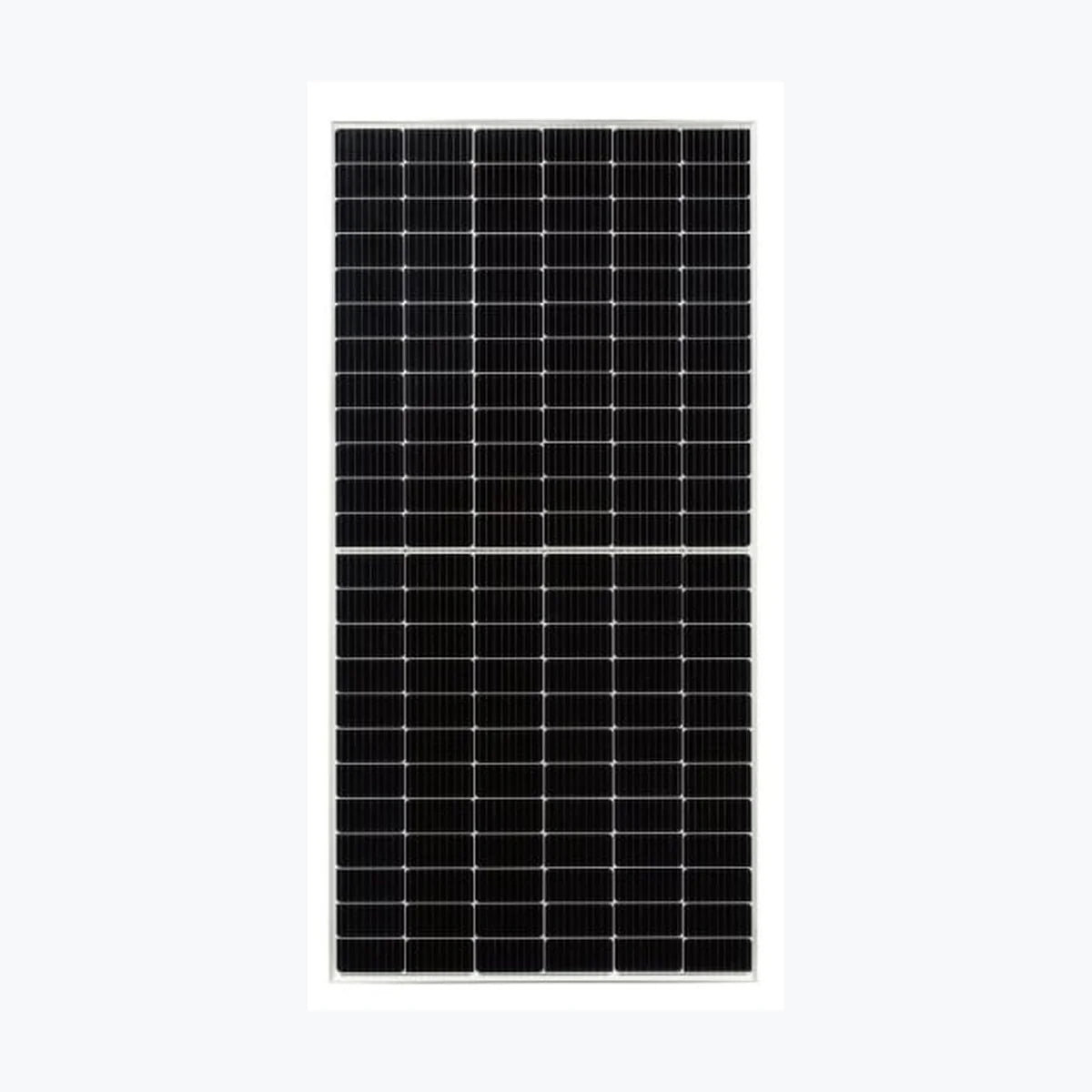

    SunLink PV 540

    SunLink PV 540

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18933
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,727
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 540 Product Warranty 12 Years Power Warranty 30 Years of 84.95 % Total Degradation Rate ⏳ 0.5 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 41.64 V Current at Maximum Power (Impp) 12.97 A Open Circuit Voltage (Voc) 49.6 V Short Circuit Current (Isc) 13.86 A Panel Efficiency 20.9 % Maximum Power (Pmax) 408 Wp Voltage at Maximum Power (Vmpp) 38.99 V Current at Maximum Power (Impp) 10.47 A Open Circuit Voltage (Voc) 46.43 V Short Circuit Current (Isc) 11.09 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 32 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Cr

      Power Range: 535 ~ 550 Wp
      Panel Efficiency: 20.7 ~ 21.3 %
      Weight: 32 kg
      Seller Name: SunLink PV
      Country: China
