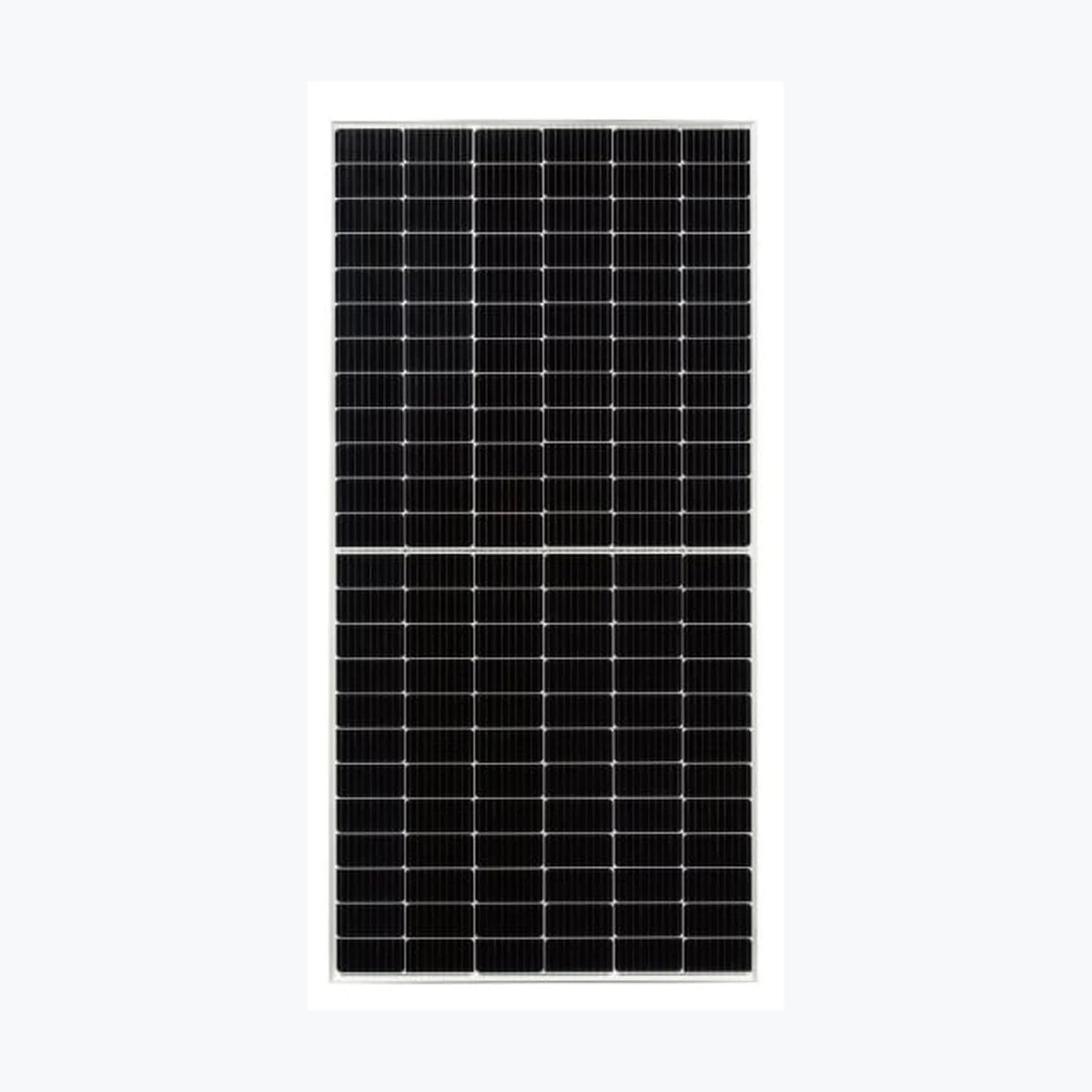

SunLink PV 545
PayPal Pay in 4 interest-free payments of $47.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-18934
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 545 Product Warranty 12 Years Power Warranty 30 Years of 84.95 % Total Degradation Rate ⏳ 0.5 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.81 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 49.75 V Short Circuit Current (Isc) 13.93 A Panel Efficiency 21.1 % Maximum Power (Pmax) 412 Wp Voltage at Maximum Power (Vmpp) 39.21 V Current at Maximum Power (Impp) 10.51 A Open Circuit Voltage (Voc) 46.55 V Short Circuit Current (Isc) 11.13 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 32 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable C
Power Range: 535 ~ 550 Wp
Panel Efficiency: 20.7 ~ 21.3 %
Weight: 32 kg
Seller Name: SunLink PV
Country: China
| SKU | PES-SPS-SOL-18934 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
