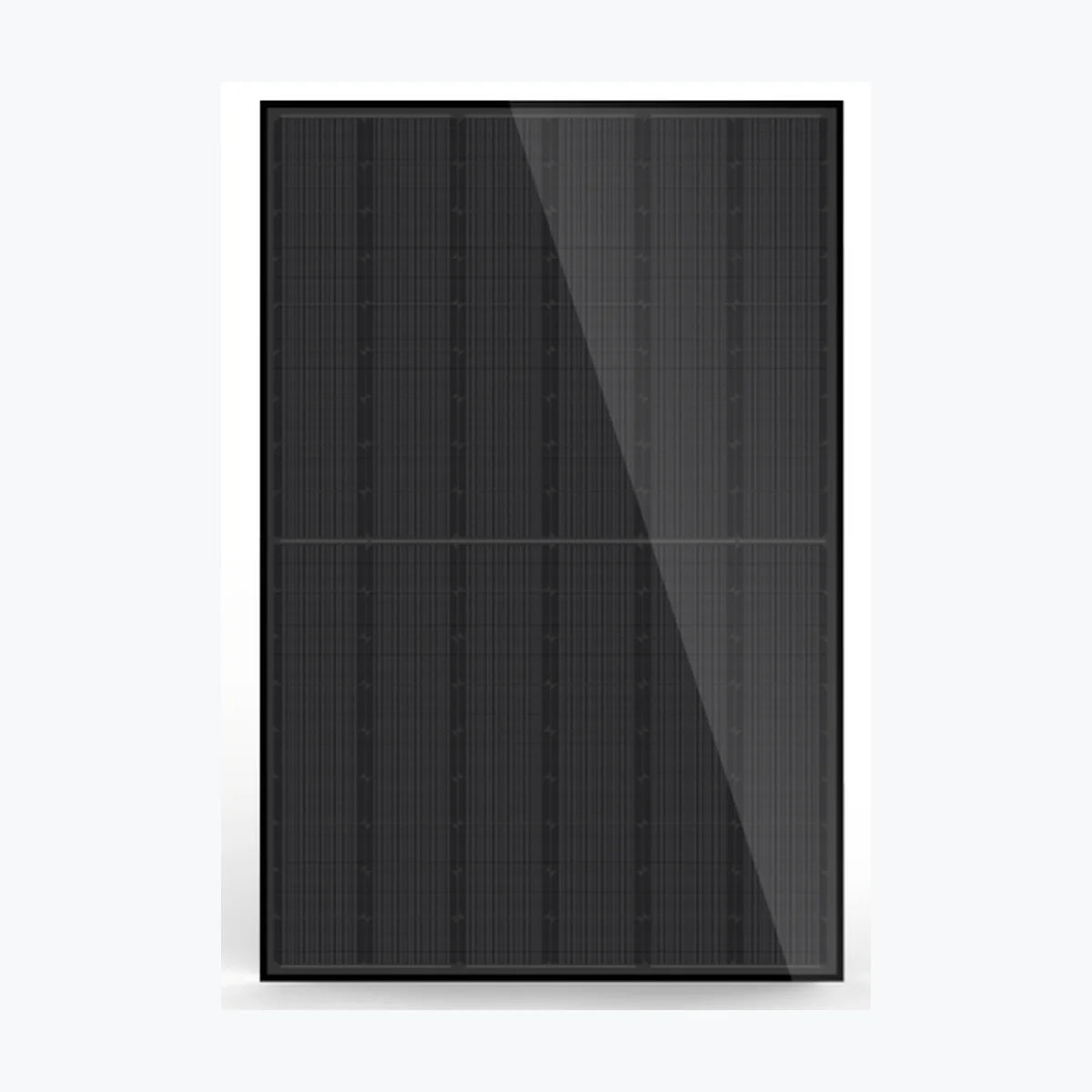

    SunLink PV SL5N108 435W

    SunLink PV SL5N108 435W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18939
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,916
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Model No. SL5N108 435W Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +5 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 32.47 V Current at Maximum Power (Impp) 13.4 A Open Circuit Voltage (Voc) 38.61 V Short Circuit Current (Isc) 14.24 A Panel Efficiency 22.3 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 30.39 V Current at Maximum Power (Impp) 10.86 A Open Circuit Voltage (Voc) 36.74 V Short Circuit Current (Isc) 11.39 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 22 kg Cell Size 182×182 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Back Cover Type PET Frame Type Anodized Aluminium Junction B

      Technology: TOPCon
      Power Range: 420 ~ 435 Wp
      Panel Efficiency: 21.5 ~ 22.3 %
      Weight: 22 kg
      Seller Name: SunLink PV
      Country: China
