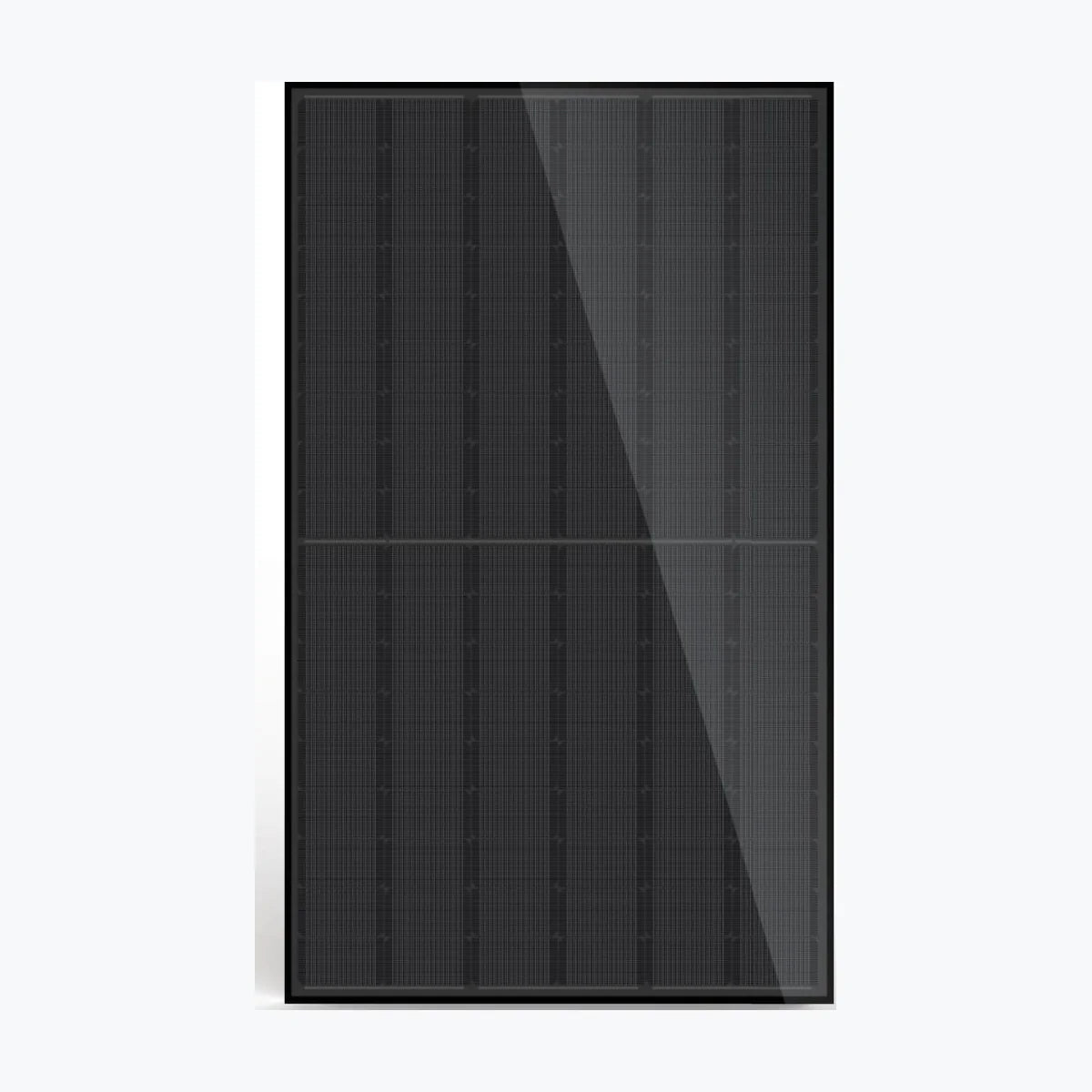

    SunLink PV SL5N108 445

    SunLink PV SL5N108 445

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18941
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,928
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. SL5N108 445 Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 32.65 V Current at Maximum Power (Impp) 13.63 A Open Circuit Voltage (Voc) 39.3 V Short Circuit Current (Isc) 14.4 A Panel Efficiency 22.3 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 30.45 V Current at Maximum Power (Impp) 11 A Open Circuit Voltage (Voc) 37.33 V Short Circuit Current (Isc) 11.63 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 22 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 380 mm D

      Technology: TOPCon
      Power Range: 440 ~ 445 Wp
      Panel Efficiency: 22 ~ 22.3 %
      Weight: 22 kg
      Seller Name: SunLink PV
      Country: China
