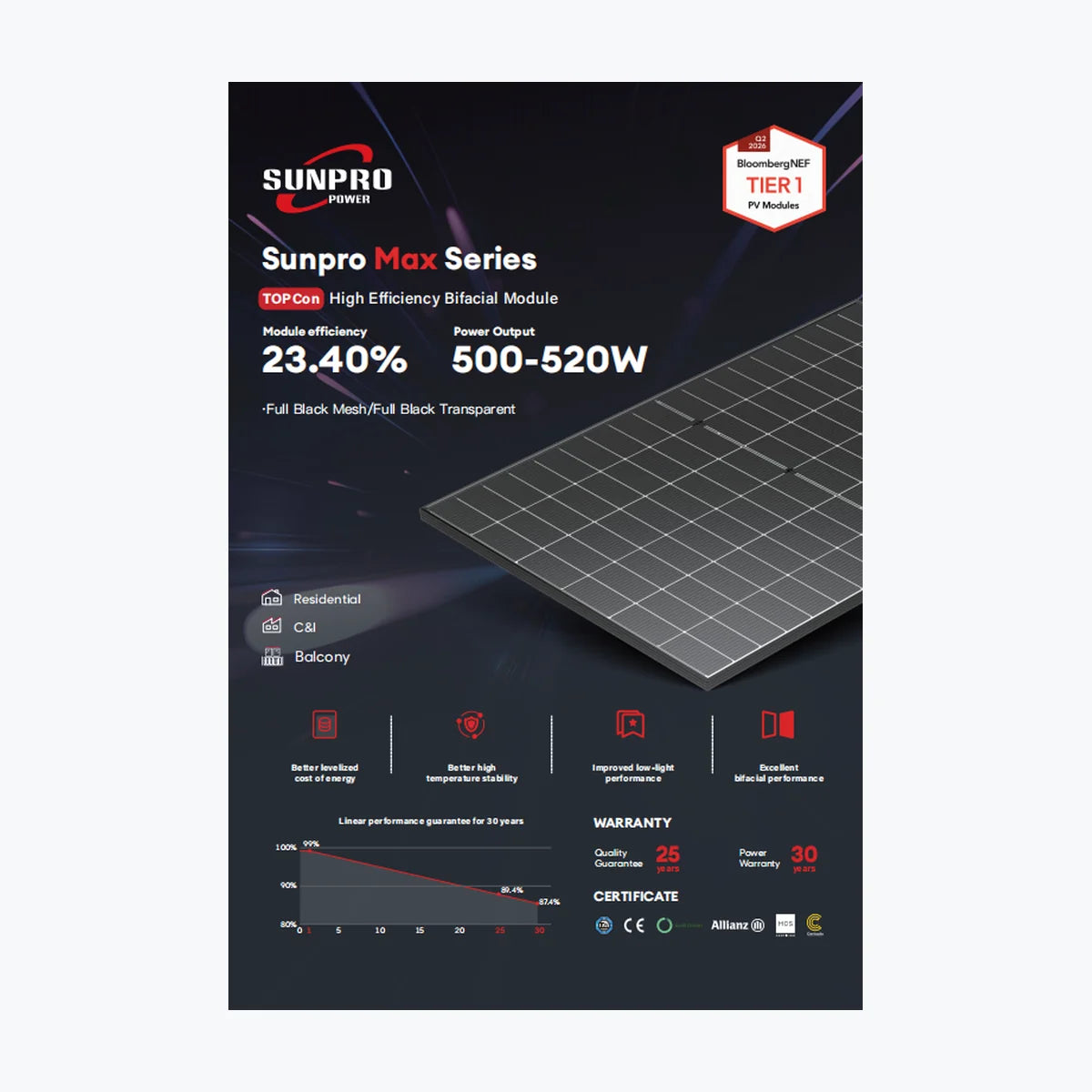

Sunpro Power SPDG515-N108R12
PayPal Pay in 4 interest-free payments of $45.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-19735
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. SPDG515-N108R12 Product Warranty 25 Years Power Warranty 25 Years of 89.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Maximum Power (Pmax) 515 Wp Voltage at Maximum Power (Vmpp) 34.09 V Current at Maximum Power (Impp) 15.11 A Open Circuit Voltage (Voc) 40.71 V Short Circuit Current (Isc) 15.98 A Panel Efficiency 23.17 % Maximum Power (Pmax) 390.3 Wp Voltage at Maximum Power (Vmpp) 32.1 V Current at Maximum Power (Impp) 12.18 A Open Circuit Voltage (Voc) 38.6 V Short Circuit Current (Isc) 12.87 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1960x1134x30 mm Weight 26.6 kg Cell Size 182.2×105 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2.0 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 500 ~ 515 Wp
Panel Efficiency: 22.5 ~ 23.17 %
Weight: 26.6 kg
Seller: Zhejiang Sunpro Power Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-19735 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
