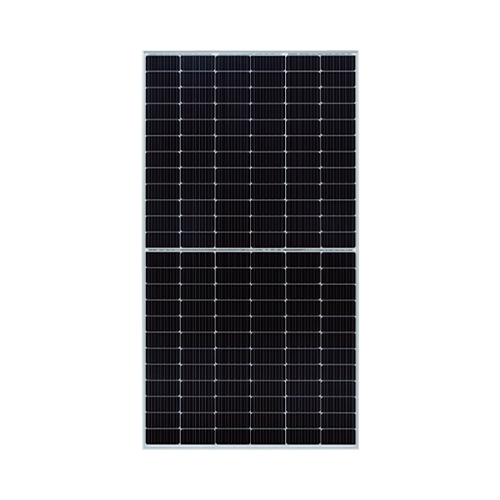

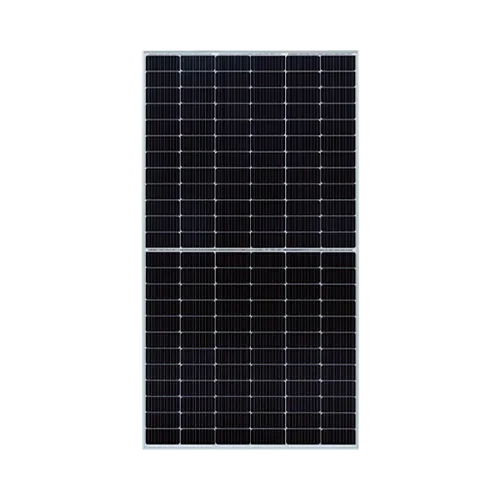

Talesun 144 Half Cells Black/Silver 545w Solar Panel - TD7G72M 545W
Talesun 144 Half Cells Black/Silver 545w Solar Panel - TD7G72M 545W
$0.5/watt
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0164
- Brands: Talesun
- Height: 1135
- Length: 2300
- Panel wattage: 545
- Short description: Explore our full range of Solar Modules <a href="https://www.portlandiaelectric.supply/solar-panels/" target="_new" rel="noopener">here</a> to find the perfect solution for your energy needs.
-
Technology:
- Half-Cell
Product Description
-
Talesun TD7G72M 545W Solar Panel Overview
The Talesun TD7G72M 545W is an advanced solar panel designed for optimal energy generation with a power output of 545 watts. This high-efficiency module features 144 half-cut cells and a durable black/silver design, making it ideal for residential, commercial, and utility-scale applications. With innovative 10BB cell technology and robust construction, the Talesun TD7G72M 545W ensures exceptional performance and reliability.Key Features
High Power Output
The Talesun TD7G72M 545W delivers an impressive 545 W of power, ensuring efficient energy conversion for diverse installations.10BB Half-Cell Technology
This module utilizes 10 busbar half-cell technology, reducing resistance and increasing efficiency, making it a top choice for modern solar systems.Durable and Reliable Design
Engineered to endure harsh conditions, the Talesun TD7G72M 545W withstands heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa.Outstanding Performance in Low Light
The advanced design ensures excellent performance under low-light conditions, maximizing energy output even on cloudy days.Eco-Friendly Construction
Designed with sustainability in mind, this panel minimizes its carbon footprint, contributing to a greener future.How It Works
The Talesun TD7G72M 545W harnesses sunlight through its high-efficiency monocrystalline cells. The 10BB half-cell design reduces internal resistance and power loss, ensuring consistent performance in various conditions.Optimized Cell Configuration
144 half-cut cells are arranged to reduce electrical losses, enhance energy yield, and improve overall efficiency.Smart Junction Box
An IP68-rated junction box ensures reliable performance, offering superior protection against moisture and dust.Temperature and Light Adaptability
With a temperature coefficient of -0.35%/ °C, the panel maintains optimal performance even in high-temperature environments, making it suitable for diverse climates.Specifications
Specification Title Specification Value Model Number TD7G72M 545W Nominal Max. Power (Pmax) 545 W Opt. Operating Voltage (Vmp) 41.3 V Opt. Operating Current (Imp) 13.19 A Open Circuit Voltage (Voc) 49.4 V Short Circuit Current (Isc) 13.89 A Module Efficiency 20.89% Dimensions 2279 × 1134 × 35 mm Weight 28.6 kg Cell Type Monocrystalline Cell Configuration 144 Half Cells Front Glass 3.2 mm tempered glass Frame Anodized aluminum alloy Junction Box IP68-rated Cable 4 mm ², 1200 mm Operating Temperature -40 °C ~ +85 °C Max. System Voltage 1500 V Temperature Coefficient -0.35%/ °C Snow Load 5400 Pa Wind Load 2400 Pa Certification IEC 61215, IEC 61730 -
