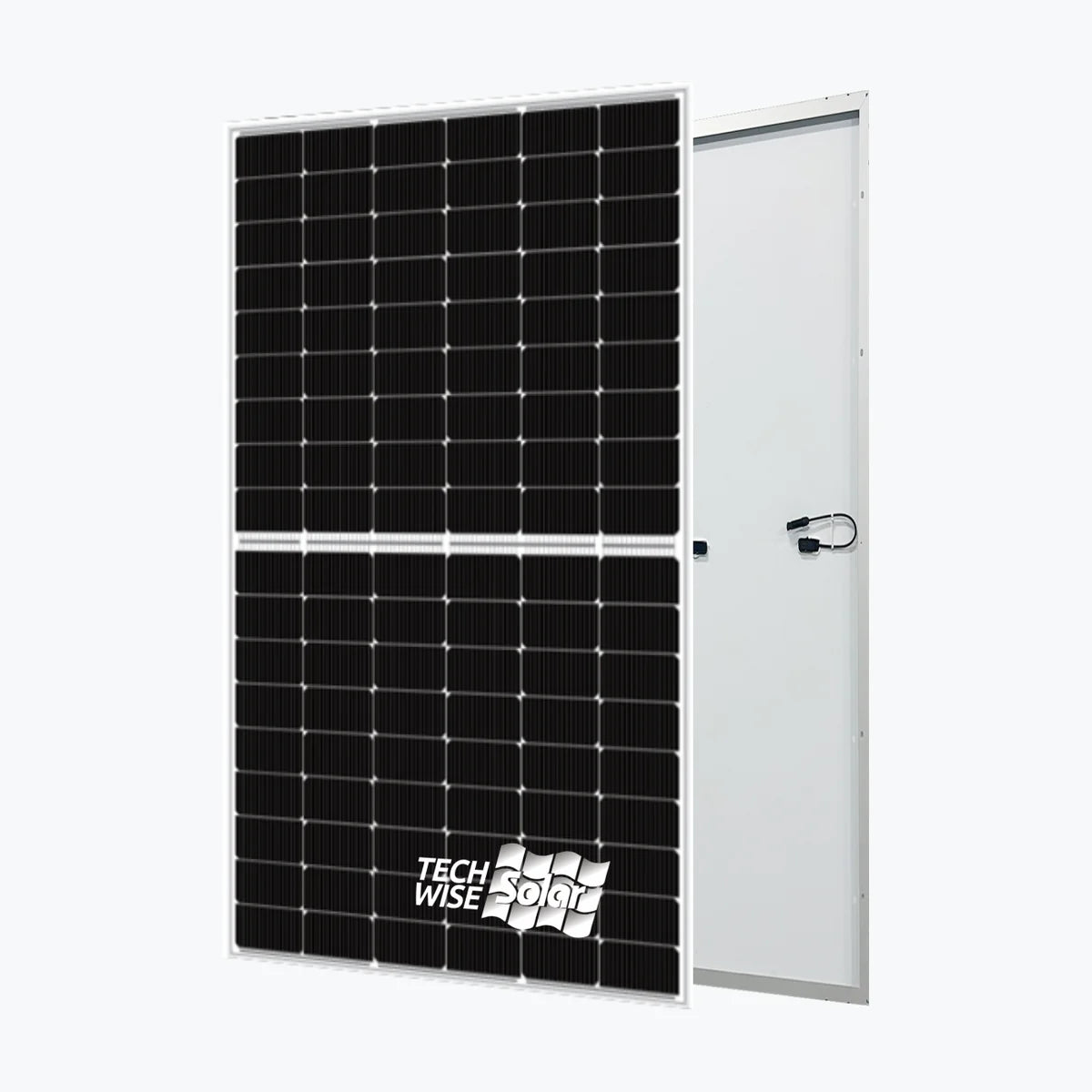

    Techwise Solar 430W

    Techwise Solar 430W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20695
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,838
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 430W Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 32.98 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 39.69 V Short Circuit Current (Isc) 13.71 A Panel Efficiency 22.02 % Maximum Power (Pmax) 323 Wp Voltage at Maximum Power (Vmpp) 29.68 V Current at Maximum Power (Impp) 10.87 A Open Circuit Voltage (Voc) 35.76 V Short Circuit Current (Isc) 11.5 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 24.6 kg Cell Number 108 Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 30

      Technology: Bifacial, TOPCon, N-type
      Power Range: 425 ~ 445 Wp
      Panel Efficiency: 21.76 ~ 22.79 %
      Weight: 24.6 kg
      Seller Name: Techwise Solar Technology Co., Ltd.
      Country: China
