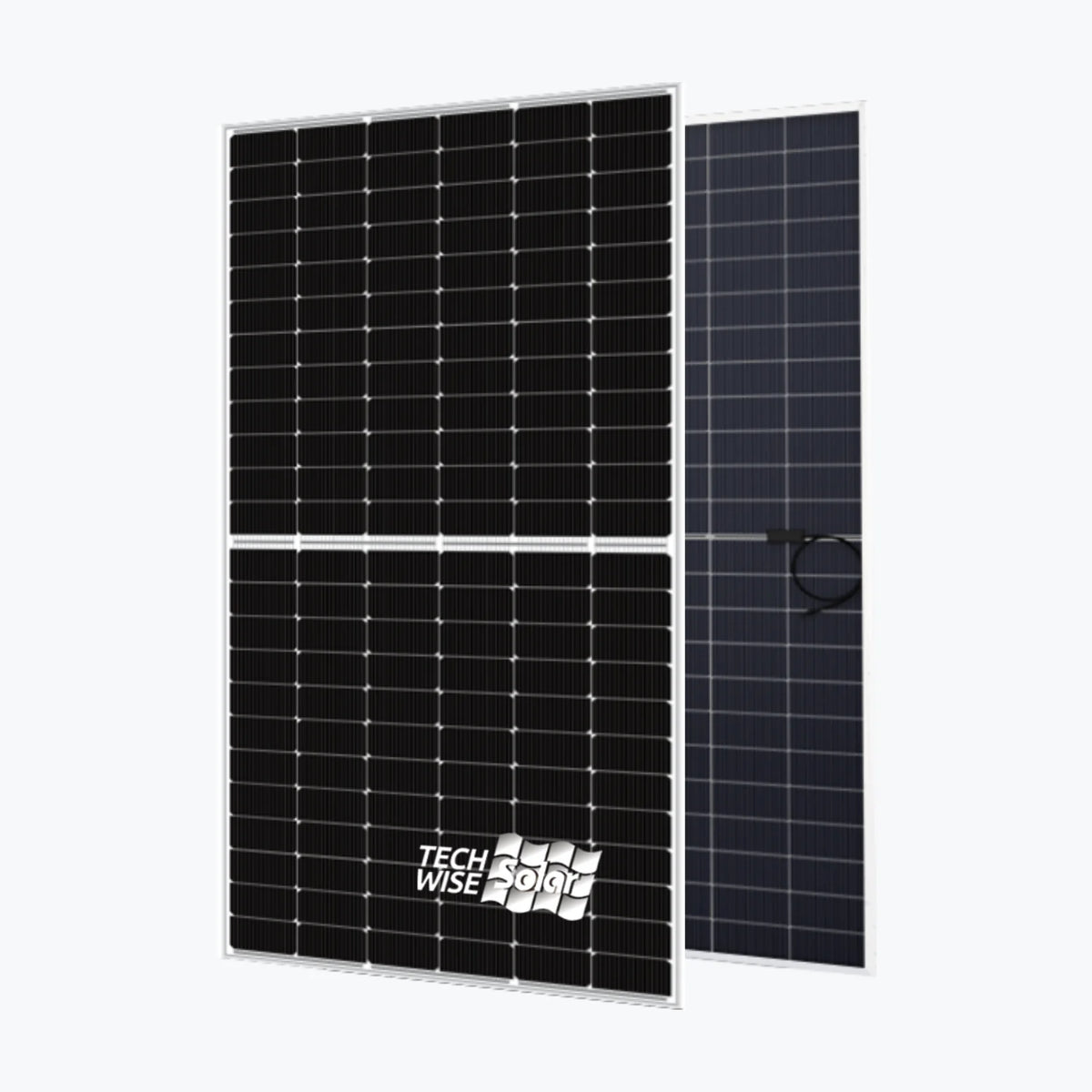

    Techwise Solar 590W-1

    Techwise Solar 590W-1

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20721
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,974
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 590W-1 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 44.36 V Current at Maximum Power (Impp) 13.3 A Open Circuit Voltage (Voc) 52.31 V Short Circuit Current (Isc) 14.23 A Panel Efficiency 22.84 % Maximum Power (Pmax) 443 Wp Voltage at Maximum Power (Vmpp) 39.92 V Current at Maximum Power (Impp) 11.08 A Open Circuit Voltage (Voc) 48.1 V Short Circuit Current (Isc) 11.73 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 31.2 kg Cell Number 144 Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 m

      Technology: Bifacial, TOPCon, N-type
      Power Range: 580 ~ 595 Wp
      Panel Efficiency: 22.45 ~ 23.23 %
      Weight: 31.2 kg
      Seller Name: Techwise Solar Technology Co., Ltd.
      Country: China
