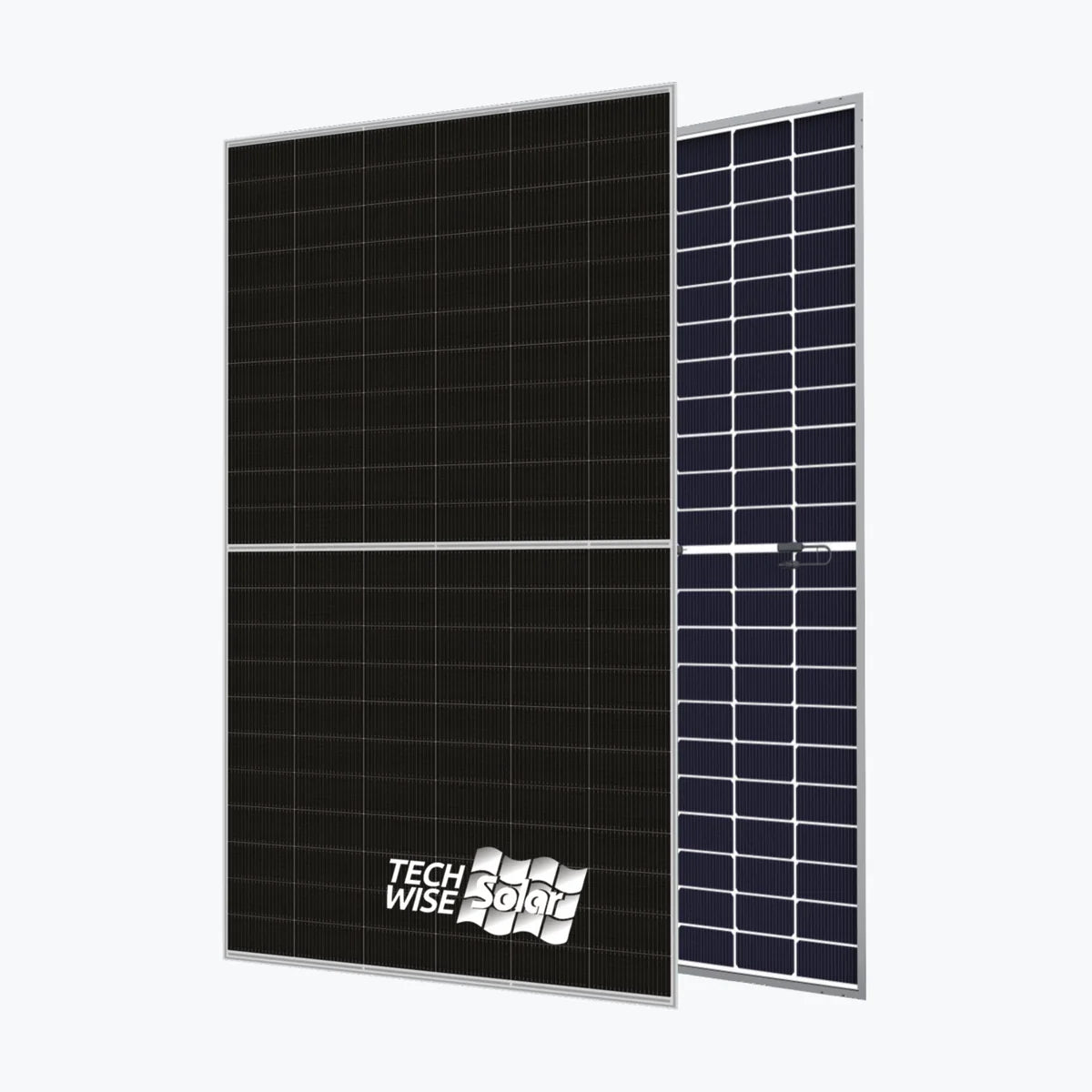

Techwise Solar 705W
PayPal Pay in 4 interest-free payments of $61.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-20736
- Unit price
- $0.35/W
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 705W Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 705 Wp Voltage at Maximum Power (Vmpp) 40.61 V Current at Maximum Power (Impp) 17.36 A Open Circuit Voltage (Voc) 48.32 V Short Circuit Current (Isc) 18.47 A Panel Efficiency 22.7 % Maximum Power (Pmax) 533 Wp Voltage at Maximum Power (Vmpp) 38.38 V Current at Maximum Power (Impp) 13.89 A Open Circuit Voltage (Voc) 45.91 V Short Circuit Current (Isc) 14.77 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38 kg Cell Size 210×210 mm Cell Number 132 Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 C
Technology: Bifacial, TOPCon, N-type
Power Range: 700 ~ 720 Wp
Panel Efficiency: 22.53 ~ 23.18 %
Weight: 38 kg
Seller Name: Techwise Solar Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-20736 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
