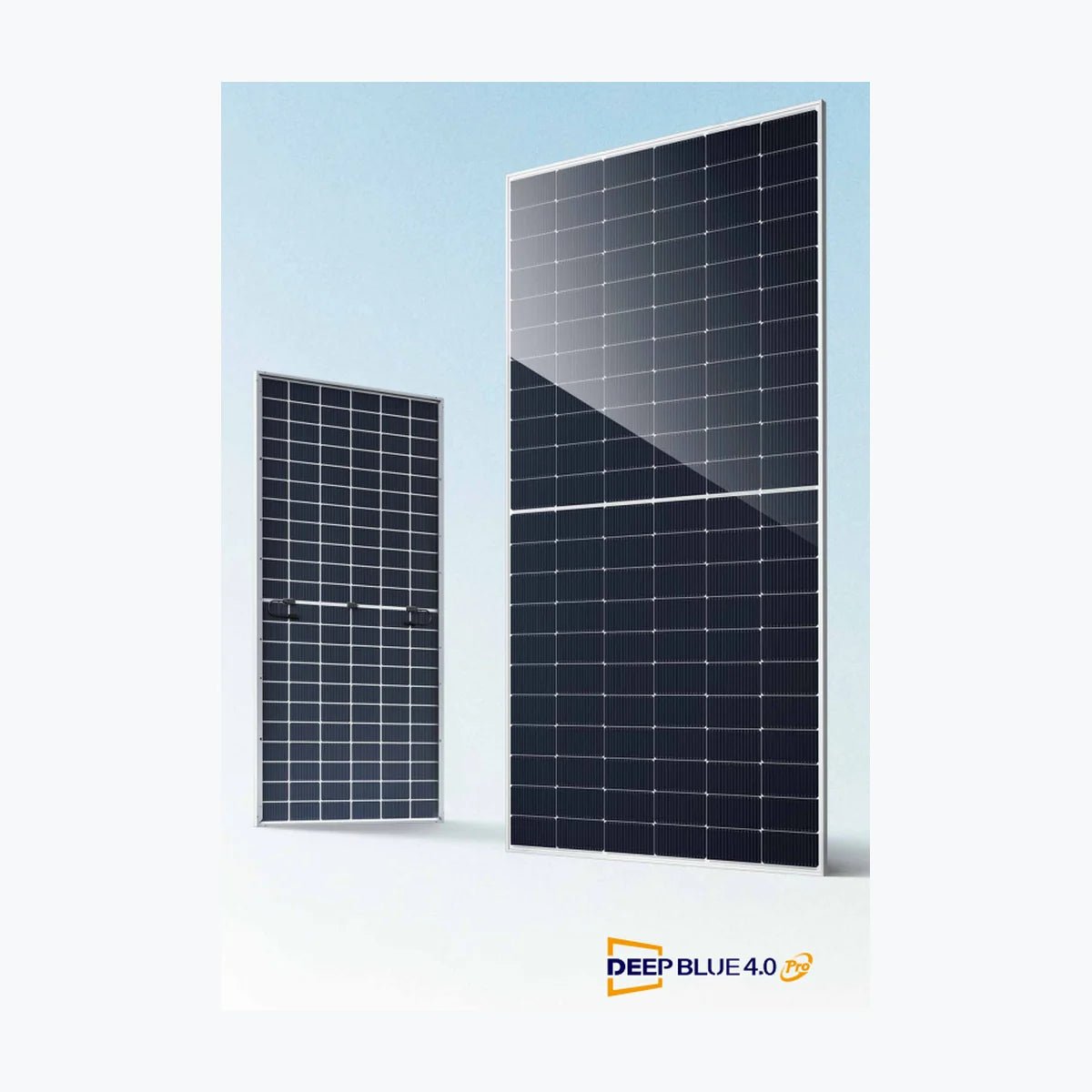

    Tianyao Dangui JAM66D46-710/LB

    Tianyao Dangui JAM66D46-710/LB

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20965
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JAM66D46-710/LB Product Warranty 12 Years Power Warranty 1 Years of 99 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 710 Wp Voltage at Maximum Power (Vmpp) 40.8 V Current at Maximum Power (Impp) 17.4 A Open Circuit Voltage (Voc) 48.6 V Short Circuit Current (Isc) 18.51 A Panel Efficiency 22.9 % Temperature 45±2 °C Operating Temperature Range -40 - 70 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 38.2 kg Cell Number 132 Glass Thickness 2 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: Bifacial, N-type
      Power Range: 710 ~ 720 Wp
      Panel Efficiency: 22.9 ~ 23.2 %
      Weight: 38.2 kg
      Seller Name: Suzhou Tianyao Dangui New Energy Technology Co., Ltd.
      Country: China
