Tigo Energy 484-00252-24

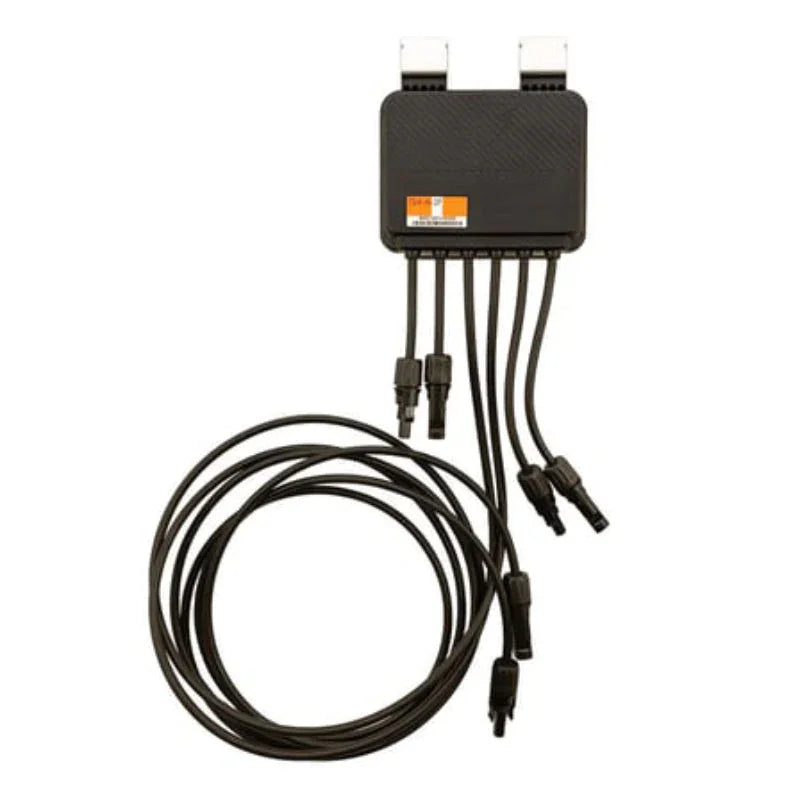

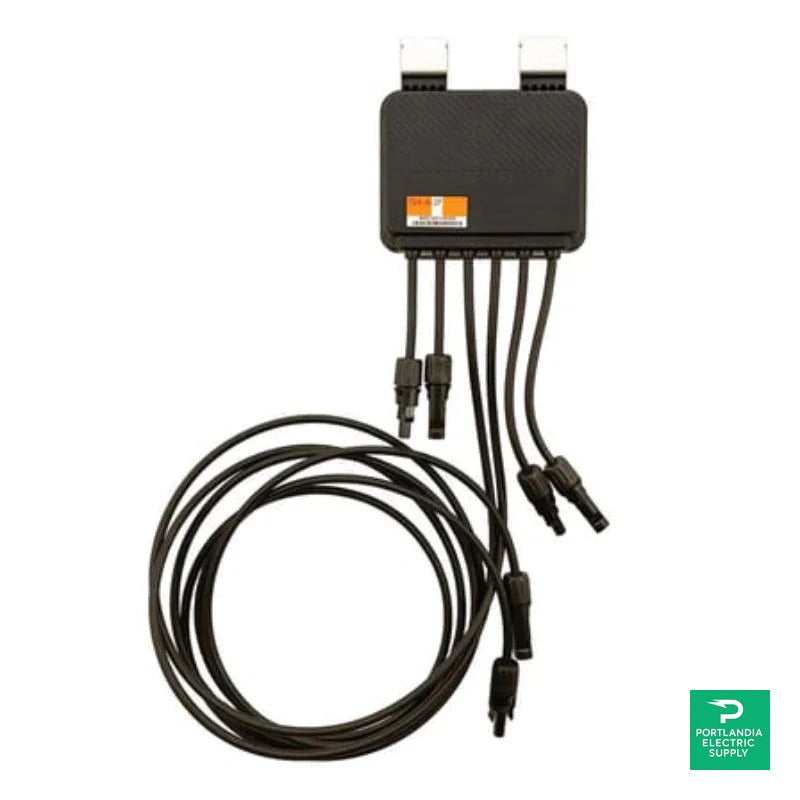

The Tigo TS4-A-2F is an advanced module-level rapid shutdown solution specifically designed to bring enhanced safety features to standard photovoltaic modules. This product ensures compliance with National Electrical Code (NEC) 2017 and 2020 specifications, making it essential for both new installations and upgrades to existing PV systems. By focusing on user safety, the Tigo TS4-A-2F provides a reliable and efficient solution for implementing rapid shutdown functionality in solar energy systems, handling two modules simultaneously.

Product Features

Enhanced Safety Compliance

The Tigo TS4-A-2F includes advanced safety features that ensure adherence to NEC 690.12 rapid shutdown regulations. This means that users can have peace of mind knowing their solar installations are up to code and safe in emergency situations.

Fire Safety Capabilities

Designed with fire safety in mind, this product automatically initiates rapid shutdown in cases of AC grid loss, significantly mitigating fire risks associated with solar energy systems.

Easy Installation Process

Installing the Tigo TS4-A-2F is a breeze, as it seamlessly snaps to standard module frames or can be rack mounted with the removal of brackets, ensuring quick setup for any solar project.

PLC Signaling Integration

This model supports Power Line Communication (PLC) signaling, allowing users to control shutdown activities effectively through the Tigo RSS Transmitter, enhancing overall system management.

Automatic Shutdown Features

The automatic shutdown feature of the TS4-A-2F ensures that in the event of any issues such as AC grid loss, the PV array will be switched off, protecting both the system and the environment.

How It Works

The Tigo TS4-A-2F operates by connecting with PV modules to provide rapid shutdown capabilities. It plays a crucial role in improving both the safety and functionality of solar energy systems, particularly in compliance with electrical codes. Understanding how each component works is key to maximizing the safety and performance of your installations.

Module Bypass Functionality

This component is vital for allowing two PV modules to be managed together, enabling efficient operation and shutdown without compromising safety.

Communication Module

Support for PLC communication allows the TS4-A-2F to integrate smoothly with other systems, ensuring robust control over shutdown processes and enhancing overall system responsiveness.

Safety Protocol Activation

In case of emergencies, this component quickly activates the safety protocols, enabling immediate shutdown of the panels to minimize risks associated with electrical faults.

Specifications
