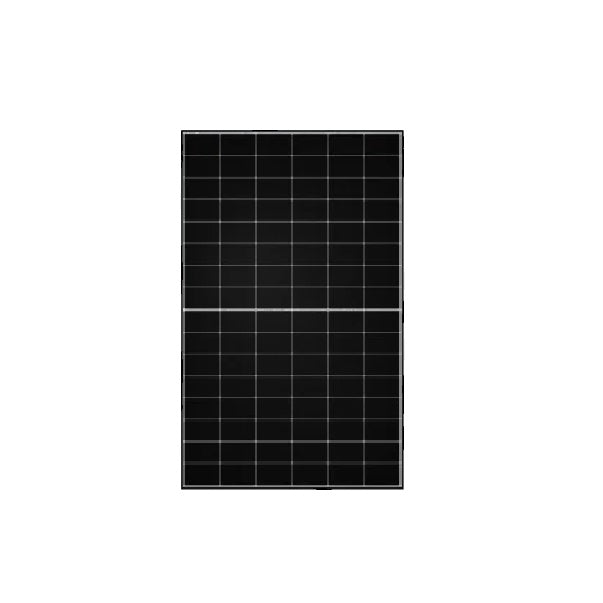

Tongwei Solar TWMNH-48HD455W

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-21059

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-21059

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Tongwei Solar TWMNH-48HD455W $180.00

Specifications

Power Rating 455W

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Tongwei TWMNH-48HD455W 455W N-Type HJT Bifacial Dual Glass Solar Panel

Model TWMNH-48HD455W | N-Type HJT Half-Cell | 96 Half-Cell Monocrystalline | Bifacial | 1500V System Voltage

455 W

Max Power Output

22.8%

Module Efficiency

96 Cells

N-Type TOPCon

Product Overview

The Tongwei Solar TWMNH-48HD455W bifacial dual glass module delivers high performance in a compact footprint. This N-type half-cell panel offers a powerful 455W output with up to 22.8% front-side efficiency. Power is captured from both sides of the module, which boosts real-world yield on reflective surfaces. Its dual glass construction enhances durability and long-term reliability in harsh outdoor conditions. The module size remains installation friendly at 1762 x 1134 mm with a low 30 mm depth. Weight is only 23.7 kg, so handling on rooftops and carports stays manageable. With a 1500V system rating, the panel suits modern residential, commercial and light industrial arrays. A black anodized frame and transparent back glass offer clean aesthetics for carport and balcony projects. The linear power warranty supports long-term energy planning with 87.4% output guaranteed at year 30. This combination makes the TWMNH-48HD455W ideal where efficiency, design and longevity are required.

Key Benefits

High power density in compact size: An output of 455W with 22.8% efficiency maximizes energy from limited roof or carport space.

Bifacial N-type technology for higher yield: Rear-side generation captures reflected light, lifting total kWh production over the system life.

Durable dual glass construction: Semi tempered glass on both sides improves fire resistance, weatherability and long-term mechanical strength.

Low degradation and strong warranty: Year one power is guaranteed at 99%, with only 0.4% annual degradation and 87.4% output at year 30.

Versatile applications and sleek design: The black frame and transparent rear glass work perfectly on carports, balconies and modern rooftops.

System-friendly electrical design: A 1500V maximum system voltage and 30A fuse rating support longer strings and reduced BOS costs.

How It Works

Sunlight hits the front glass of the Tongwei TWMNH-48HD455W panel and passes into the N-type monocrystalline cells. Each half-cell converts photons into direct current using high efficiency HJT and TOPCon style junctions. Because the module is bifacial, the rear glass also accepts reflected and diffuse light from below the array. This rear-side light is converted into additional power, which increases the effective energy yield over time. The 96 half-cell layout balances voltage and current to keep losses low in real operating conditions. Generated DC power flows through the three-diode junction box and out via 4 mm² solar cables. The DC is then routed to a compatible string or hybrid inverter, where it is converted into AC power. This AC energy is used onsite for home or business loads or exported back to the grid if allowed. Optimized temperature coefficients keep power output more stable during hot summer conditions. Together these elements create a reliable module that turns available light into dependable clean electricity.

Front-side generation: High-transmittance AR coated front glass directs more light into the N-type cells. The 22.8% efficiency means more of that light becomes usable DC power even in constrained spaces.

Rear-side bifacial gain: The transparent rear glass allows light from reflective surfaces to reach the cell rear. Bifaciality around 80% means notable extra output on bright ground or white carport roofs.

Stable performance in real conditions: Low temperature coefficients reduce power loss as cell temperature rises. Combined with robust dual glass encapsulation, the module maintains performance for decades in demanding climates.

Technical Specifications

Brand	Tongwei Co., Ltd. (TW Solar)
Model Number	TWMNH-48HD455W
Module Type	N-type half-cell bifacial dual glass, black frame and transparent back
Cell Technology and Type	TNC N-type monocrystalline, HJT / TOPCon style, 96 half-cells (6×16)
Nominal Power Range	445 Wp to 465 Wp series range, 455 Wp rated module
Maximum Power (Pmax)	455 Wp (STC)
Module Efficiency (front side)	22.8%
Voltage at Maximum Power (Vmp)	30.44 V
Current at Maximum Power (Imp)	14.95 A
Open Circuit Voltage (Voc)	35.95 V
Short Circuit Current (Isc)	15.98 A
Power Output Tolerance	0 to +3%
Bifaciality Factor	80% ± 10%
Operating Temperature Range	-40°C to +85°C
Maximum System Voltage	1500 V DC
Maximum Series Fuse Rating	30 A
Temperature Coefficient of Pmax	-0.28% / °C
Temperature Coefficient of Voc	-0.24% / °C
Temperature Coefficient of Isc	+0.046% / °C
Panel Dimensions (H × W × D)	1762 × 1134 × 30 mm (±2 mm on length and width)
Weight	23.7 kg
Front Glass	2.0 mm semi tempered glass with anti-reflection coating
Rear Glass	2.0 mm semi tempered transparent glass
Frame	Black anodized aluminium alloy frame
Junction Box	IP68 rated, 3 bypass diodes for string protection
Cable Specification	4.0 mm² solar cable, 1200 mm length (customizable)
Packaging Details	36 modules per pallet, 936 modules per 40' HC container

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, IEC TS 62804, IEC 61701, IEC 62716, IEC 60068-2-68, EC62941:2019, manufactured under ISO9001, ISO14001, ISO45001 and ISO50001 systems.
Inverter Compatibility: Compatible with most modern string and hybrid inverters. Ensure array Voc and operating current stay within the inverter MPPT voltage and current limits for all temperatures.
Environmental: Designed for outdoor operation from -40°C to +85°C with high resistance to salt mist, ammonia and dust exposure when installed to guidelines.
Warranty: 15-year material and workmanship warranty. Linear power warranty with 99% output in year 1, then 0.4% annual degradation, guaranteeing 87.4% of nominal power at year 30.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Tongwei TWMNH-48HD455W 455W N-Type HJT Bifacial Dual Glass Solar Panel

Model TWMNH-48HD455W | N-Type HJT Half-Cell | 96 Half-Cell Monocrystalline | Bifacial | 1500V System Voltage

455 W

Max Power Output

22.8%

Module Efficiency

96 Cells

N-Type TOPCon

Product Overview

Key Benefits

High power density in compact size: An output of 455W with 22.8% efficiency maximizes energy from limited roof or carport space.

Bifacial N-type technology for higher yield: Rear-side generation captures reflected light, lifting total kWh production over the system life.

Durable dual glass construction: Semi tempered glass on both sides improves fire resistance, weatherability and long-term mechanical strength.

Low degradation and strong warranty: Year one power is guaranteed at 99%, with only 0.4% annual degradation and 87.4% output at year 30.

Versatile applications and sleek design: The black frame and transparent rear glass work perfectly on carports, balconies and modern rooftops.

System-friendly electrical design: A 1500V maximum system voltage and 30A fuse rating support longer strings and reduced BOS costs.

How It Works

Technical Specifications

Brand	Tongwei Co., Ltd. (TW Solar)
Model Number	TWMNH-48HD455W
Module Type	N-type half-cell bifacial dual glass, black frame and transparent back
Cell Technology and Type	TNC N-type monocrystalline, HJT / TOPCon style, 96 half-cells (6×16)
Nominal Power Range	445 Wp to 465 Wp series range, 455 Wp rated module
Maximum Power (Pmax)	455 Wp (STC)
Module Efficiency (front side)	22.8%
Voltage at Maximum Power (Vmp)	30.44 V
Current at Maximum Power (Imp)	14.95 A
Open Circuit Voltage (Voc)	35.95 V
Short Circuit Current (Isc)	15.98 A
Power Output Tolerance	0 to +3%
Bifaciality Factor	80% ± 10%
Operating Temperature Range	-40°C to +85°C
Maximum System Voltage	1500 V DC
Maximum Series Fuse Rating	30 A
Temperature Coefficient of Pmax	-0.28% / °C
Temperature Coefficient of Voc	-0.24% / °C
Temperature Coefficient of Isc	+0.046% / °C
Panel Dimensions (H × W × D)	1762 × 1134 × 30 mm (±2 mm on length and width)
Weight	23.7 kg
Front Glass	2.0 mm semi tempered glass with anti-reflection coating
Rear Glass	2.0 mm semi tempered transparent glass
Frame	Black anodized aluminium alloy frame
Junction Box	IP68 rated, 3 bypass diodes for string protection
Cable Specification	4.0 mm² solar cable, 1200 mm length (customizable)
Packaging Details	36 modules per pallet, 936 modules per 40' HC container

Certifications & Compliance

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
