Tongwei Solar TWMNH-48HD460W

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-21060

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-21060

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Tongwei Solar TWMNH-48HD460W $180.00

Specifications

Power Rating 460W

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

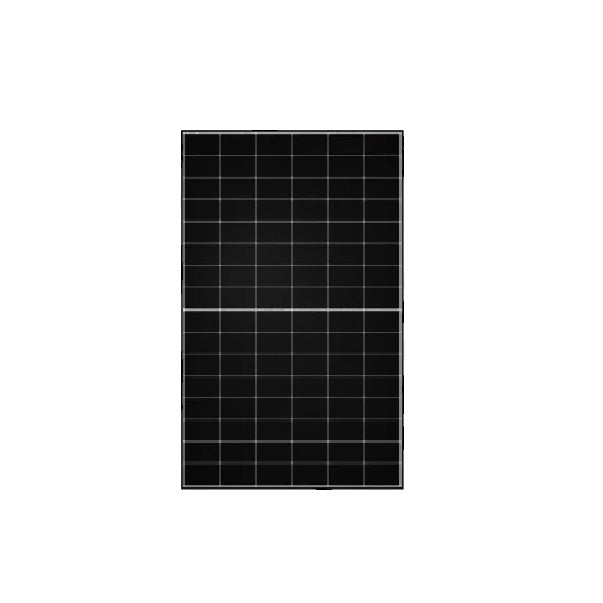

Tongwei TWMNH-48HD460W 460W N-Type Bifacial Dual Glass Solar Panel

Model TWMNH-48HD460W | N-Type Half-Cell | 96 Half-Cell Monocrystalline | Bifacial Dual Glass | 1500V System Voltage

460 W

Max Power Output

23%

Module Efficiency

96 Cells

N-Type TOPCon

Product Overview

The Tongwei Solar TWMNH-48HD460W N-type bifacial solar panel is designed for modern residential and light commercial projects. This advanced dual glass module delivers up to 460 watts of power with module efficiency up to 23 percent. Its compact, lightweight design is ideal for carports, balcony railings, and architectural facades where aesthetics matter. N-type half-cell technology improves performance in real world conditions and reduces light induced degradation. Bifacial construction allows energy to be harvested from both the front and rear sides of the panel. This increases total system yield when mounted above bright or reflective surfaces. Durable dual glass, a black anodized frame, and IP68 junction box help ensure long term reliability in harsh environments. The panel is certified to major international standards and carries long term linear power output protection. Tongwei’s attention to quality and efficiency makes this module a strong choice for space constrained rooftops and premium installations.

Key Benefits

High power in a compact footprint: Each module delivers up to 460 watts, enabling more capacity on limited roof space. This supports higher system output without expanding the array footprint.

Premium N-type half-cell technology: N-type cells reduce degradation over time compared with many conventional P-type products. Half-cell layout cuts resistive losses and improves shade tolerance on real roofs.

Bifacial dual glass design: Energy is captured from both sides when light hits reflective surfaces beneath or behind the array. Dual glass construction enhances durability and fire resistance compared with backsheet modules.

Architectural friendly appearance: A black anodized frame and transparent bifacial glass create a clean, modern look. This aesthetic suits carports, balcony railings, and visible roof edges extremely well.

Robust warranties and reliability: A 15 year product warranty covers materials and workmanship for long term projects. A 30 year linear power warranty limits annual degradation to around 0.4 percent after the first year.

Flexible system integration: The module supports system voltages up to 1500 volts for modern string designs. Standard 4 mm² cables and MC4 compatible connectors simplify installation and connection.

How It Works

The Tongwei TWMNH-48HD460W solar panel converts sunlight into usable DC electricity using high efficiency N-type monocrystalline cells. When sunlight hits the front glass, photons are absorbed by the cells and release electrons. These electrons are driven through the cell structure, creating an electric current that flows through the panel wiring. Because this module is bifacial, the rear glass also collects light that reflects from the ground, carport surfaces, or nearby structures. Both sides feed power into the same electrical circuit, increasing total energy generation over the year. The produced DC power is sent through strings of modules to an inverter, which converts it to AC power for household or commercial use. Advanced temperature coefficients and dual glass construction help the panel maintain more output in hot or harsh environments. The result is a stable, long term source of clean power with reduced performance losses over time.

N-Type half-cell energy conversion: The module uses 96 N-type half cells arranged in a 6 by 16 layout. Each half cell operates at lower current, which reduces resistive losses inside the panel. N-type silicon is less prone to light induced degradation, so power output remains more stable over the years.

Bifacial rear side gain: The transparent rear glass allows light to reach the back of the cells. Reflected light from concrete, light colored roofs, or carport surfaces can be harvested effectively. Depending on site conditions, rear side gain can significantly increase effective module power and overall system yield.

System integration and output management: The panel operates at a maximum power voltage around 30.69 volts and current around 14.99 amperes. Multiple modules are wired in series and parallel strings to match the inverter’s DC input range. The inverter monitors these strings and converts the combined DC power into grid compatible AC electricity for loads or export.

Technical Specifications

Brand / Manufacturer	Tongwei Co., Ltd. (TW Solar)
Country of Origin	China
Model Number	TWMNH-48HD460W
Cell Technology	N-type monocrystalline half-cell, TNC series
Cell Count and Orientation	96 cells (6 × 16 layout)
Module Type	Bifacial dual glass, black frame and transparent module
Technology Category	N-type half-cell bifacial solar panel
Power Range (Series)	445 Wp to 465 Wp series, 460 Wp nominal model
Maximum Power (Pmax)	460 Wp at STC
Module Efficiency (front side)	Up to 23.0 %
Front Side Power Range with Gain	Up to 467 W to 575 W with 5–25% rear side gain
Nominal Voltage at Maximum Power (Vmpp)	30.69 V
Nominal Current at Maximum Power (Impp)	14.99 A
Open Circuit Voltage (Voc)	36.15 V
Short Circuit Current (Isc)	16.05 A
Power Output Tolerance	0 to +3 % positive tolerance
Bifaciality Factor	80 ± 10 %
Operating Temperature Range	-40 °C to +85 °C
Maximum System Voltage	1500 V DC
Maximum Series Fuse Rating	30 A
Temperature Coefficient of Pmax	-0.28 % / °C
Temperature Coefficient of Voc	-0.24 % / °C
Temperature Coefficient of Isc	+0.046 % / °C
Panel Dimensions (H × W × D)	1762 × 1134 × 30 mm
Panel Weight	23.7 kg
Front Glass	2.0 mm semi tempered glass with anti reflection coating
Rear Glass	2.0 mm semi tempered glass, transparent
Frame Type and Color	Black anodized aluminium alloy frame
Junction Box Rating and Diodes	IP68 junction box with 3 bypass diodes
Cable Cross Section and Type	4 mm² solar cable, MC4 compatible connectors
Cable Length (each side)	1200 mm ±, length can be customized by manufacturer
Design Loads (Static Test)	5400 Pa front load / 2400 Pa rear load
Packaging Quantity per Pallet	36 panels per pallet
Quantity per 40' HC Container	936 panels per 40 foot high cube container

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, IEC TS 62804, IEC 61701, IEC 62716, IEC 60068-2-68, EC62941:2019 quality system for PV module manufacturing.
Inverter Compatibility: Designed for use with modern string and central inverters rated up to 1500 V DC input. Compatible with leading global inverter brands when string sizing follows electrical limits.
Environmental: Produced under ISO9001:2015 quality, ISO14001:2015 environmental, ISO45001:2018 occupational health and safety, and ISO50001:2018 energy management systems.
Warranty: 15 year limited product warranty on materials and workmanship. 30 year linear power warranty with 99% first year output and approximately 0.4% maximum annual degradation, guaranteeing 87.4% of rated power at year 30 under standard test conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
